Fiberglass sheet (GRP) 1mm, LARGE, 500x300mm, natural color
As of April 2026 · Prices incl. VAT unless stated otherwise.
-
Delivery time Germany: 1-3 business days.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
Fiberglass sheet (GRP) 1mm, LARGE, 500x300mm, natural color
Fiberglass Plate 1mm, LARGE, 500x300mm, natural color

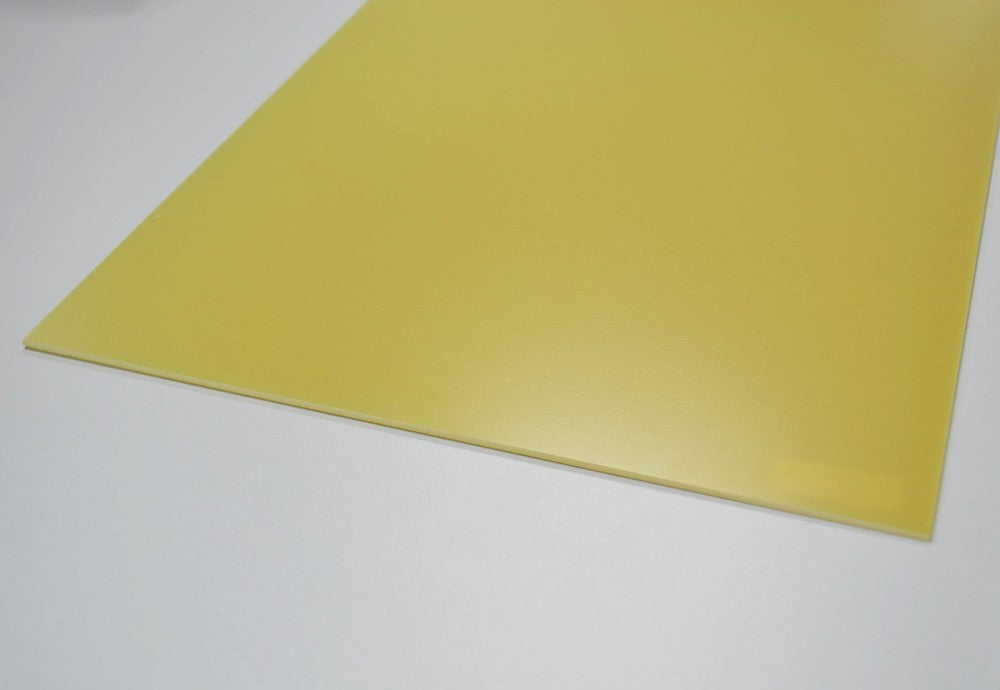

This 1mm thick FR4 GRP plate made of glass filament fabric can be used in many areas. Good workability, versatile applications, electrical and mechanical insulation capability, temperature resistance and high strength make FR 4 a very high-quality material.
Among other things, FR4 has very good mechanical load capacity and high creepage resistance. Due to its high flame retardancy (flammability class V0) and other advantageous properties, FR4 is used in mechanical engineering and the electrical industry. The plates can be drilled, milled, and sawn. The FR4 GRP plate can be bonded with 2-component epoxy adhesive (e.g. UHU Endfest 300). Please observe the safety regulations for processing GRP and CFRP plates.
Technical data:
Material: Natural fiberglass
Surface: matt/smooth
Dimensions: 500 x 300 mm
Thickness: 1 mm
Thickness tolerance: +/- 10 %
Heat resistance: approx. up to 120°C
Fiber orientation: 0°/90° bidirectional
Resin type: Epoxy resin
Type: FR4 corresponds to Hgw 2371.1
Flexural stiffness 23°C: 350 Mpa
Weight: approx. 0.22 g/cm²
Density: approx. 2.09 g/cm³
Scope of delivery: 1 plate
