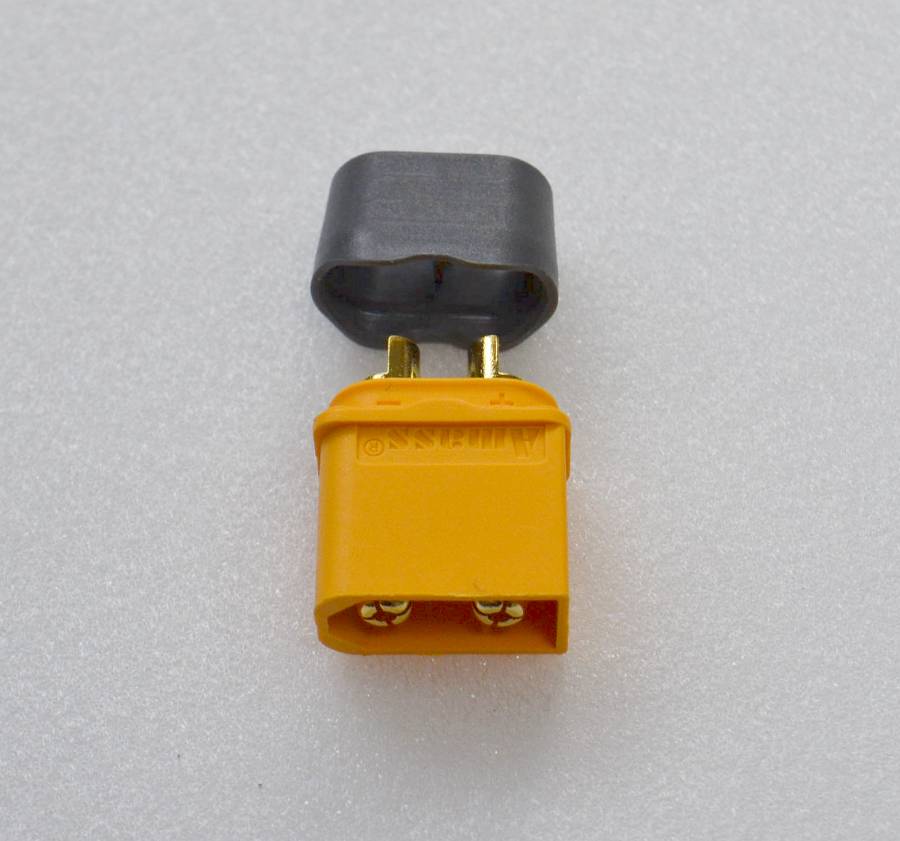

XT-60 Gold Plated Connector with Protective Cap, max 60A continuous / 100A impulse
As of April 2026 · Prices incl. VAT unless stated otherwise.
-
Delivery time Germany: 1-3 business days.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
XT-60 Gold Plated Connector with Protective Cap, max 60A continuous / 100A impulse
Gold Connector XT-60 with Protective Cap, max. 60 A Continuous / 100A Pulse
Minimal transmission resistance due to gold-plated surface and easy to solder. Insulation against short circuits thanks to the protective sleeve.
Scope of delivery:
- 1 connector
- 1 protective cap
Technical data:
- Continuous load: up to 60A in typical model-building applications.
- Pulse load (short-term): 100 A
- Contact resistance: approx. 0.005 Ohm
- Temperature resistant up to: 160 °C
- for cable cross-sections up to 4 mm², AWG11
- Dimensions: 20.5 x 15.5 x 8.1 mm
