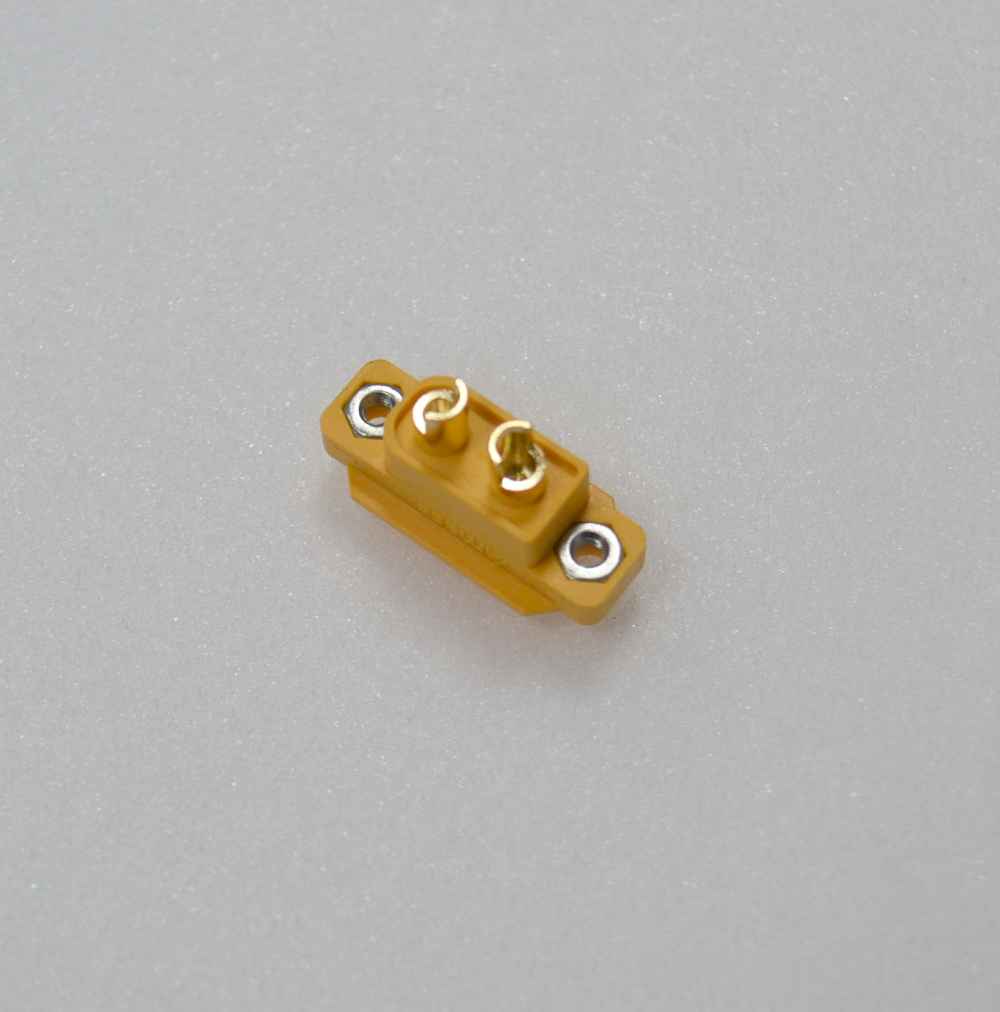

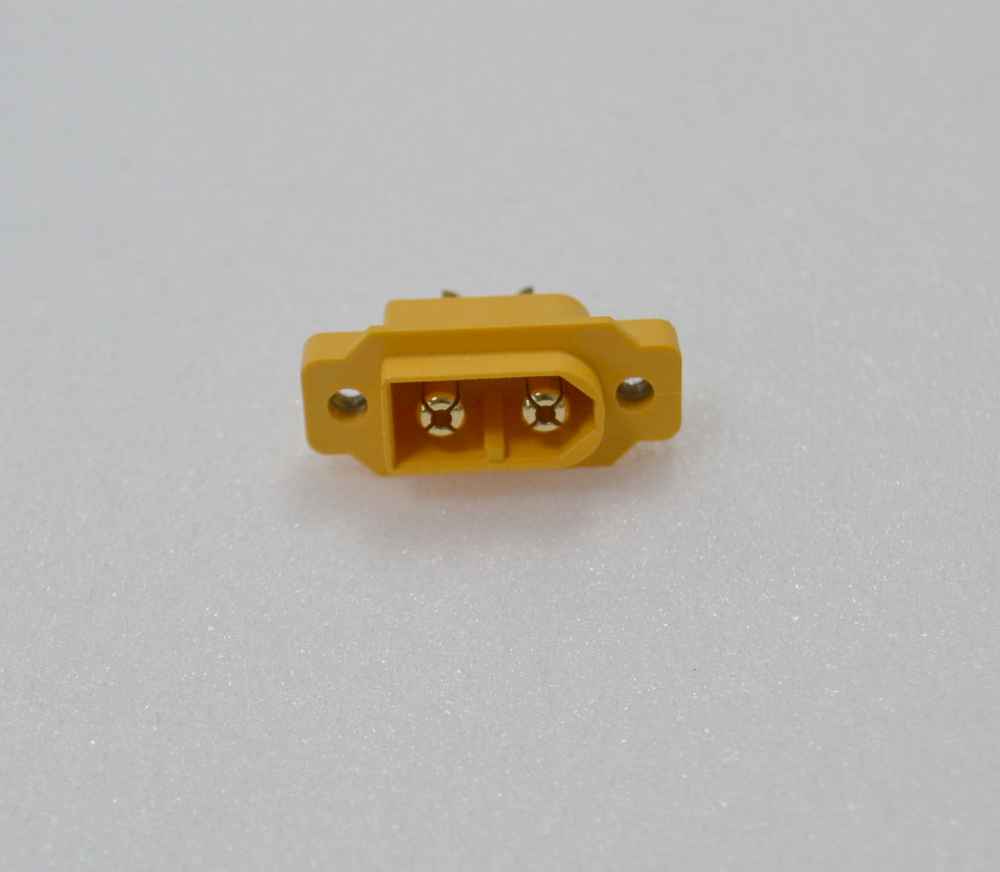

XT-60E Gold-Plated Connector for Panel Mounting, 2x M3, Max. 60 A Continuous / 100A Pulse
Gold Connector XT-60 for Installation, maximum 60 A Continuous / 100 A Pulse
Minimizes transfer resistance due to gold-plated surface and easy to solder.
Scope of delivery:
-
1 connector with mounting thread
Technical data:
- Continuous load: up to 60A in typical model-building applications.
- Pulse load (short): 100 A
- Contact resistance: approx. 0.005 Ohm
- Temperature resistant up to: 160 °C
- for cable cross-sections up to 4 mm², AWG11
- Dimensions: 27.1 x 12.1 x 16.7 mm
