XT-60L Gold Connector for Screw Mounting, with Insulating Housing max. 60 A Continuous/100 A Pulse
As of April 2026 · Prices incl. VAT unless stated otherwise.
-
Delivery time Germany: 1-3 business days.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
XT-60L Gold Connector for Screw Mounting, with Insulating Housing max. 60 A Continuous/100 A Pulse
Gold-plated XT-60 Connector for Screw Mounting, with Insulating Housing, max. 60 A Continuous / 100 A Pulse

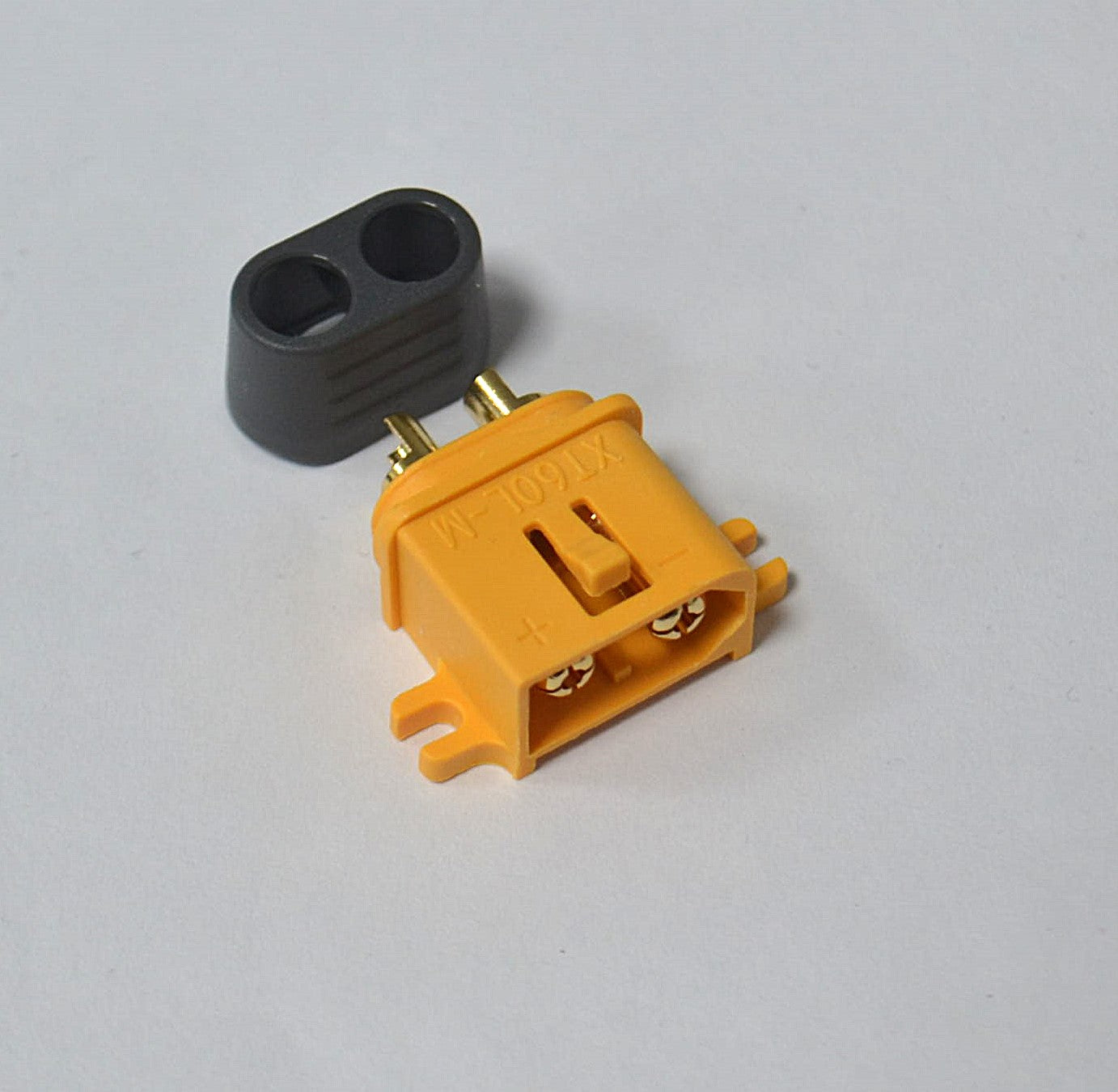

Minimal transmission resistance due to gold-plated surface and easy to solder. Short-circuit insulation through protective sleeve.
Scope of delivery:
-
1 connector with mounting tabs
Technical data:
- Continuous load: up to 60A in typical model-building applications.
- Pulse load (short): 100 A
- Contact resistance: approx. 0.005 Ohm
- Temperature resistant up to: 160 °C
- for cable cross-sections up to 4 mm², AWG11
- Dimensions: 23.9 x 24 x 10.1 mm
