Grumman F9F Panther, Impeller model for electric retractable landing gear, kit with GRP fuselage, wingspan 1090mm

Regular price €458,99 EUR
Sale price €458,99 EUR Regular price
Unit price
Tax included, plus .
  • Availability:
    1 in stock
  • SKU:
    AN136000
  • Delivery time Germany: 1-3 business days.

  • Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)

Request delivery time

Grumman F9F Panther, Impeller model for electric retractable landing gear, kit with GRP fuselage, wingspan 1090mm · SKU: AN136000

* Required fields

Grumman F9F Panther, Impeller model for electric retractable landing gear, kit with GRP fuselage, wingspan 1090mm

Grumman F9F Panther, Impeller model for electric retractable landing gear, kit with GRP fuselage, wingspan 1090mm

Regular price €458,99 EUR
Sale price €458,99 EUR Regular price
Unit price
Product description
Technical Data
Product Safety

Panther Grumman F9F, prepared for retractable landing gear, Aeronaut # 1360/00

The Original:
Even if it's not immediately obvious, the F9F Panther is one of the classic vintage jets. It was designed as Grumman's first jet aircraft from 1945 onwards. The Panther followed in the footsteps of famous "cats" like the Hellcat and Bearcat. Its maiden flight was in November 1947. The F9F saw its baptism of fire in the Korean War, where it primarily served as a ground attack fighter. Its adversary at the time was the classic Soviet MiG-15. Since the Panther could operate from both land bases and ships, it was flown by both the US Navy and the Marines. Typical features of the Panther F9F include a round fuselage cross-section, the flowing lines of the jet, and the unswept wings with very elegant-looking tip tanks at the wingtips.

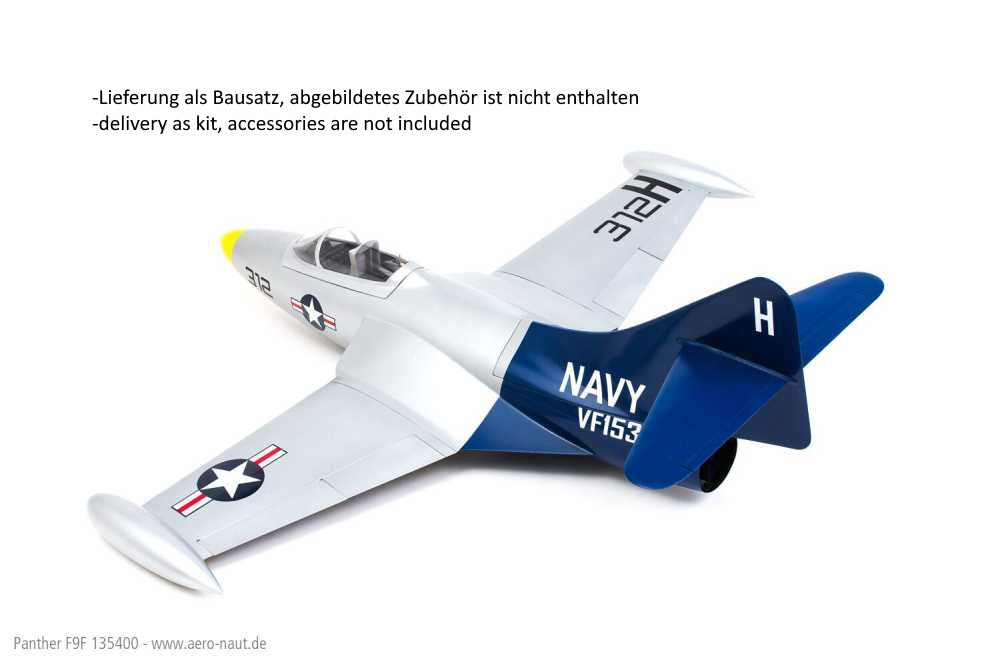

The Model:
The revised version of the popular impeller model comes with a new construction and propulsion concept. The Panther features a blue-tinted GRP fuselage, while the wings and tailplane are built using rib construction and planked with plywood to ensure the necessary strength and a high-quality surface finish. The assembly of the wings and tailplane is done on the typical aero-naut model jig, making construction quick and straightforward. The detailed building instructions show and describe each construction step, leaving no questions unanswered. Nevertheless, experience with fast RC models is required for building and especially flying the Panther. The wings are plug-in, but due to the compact dimensions of the model, they can also be permanently glued to the fuselage. The Grumman F9F Panther is a compact jet model for electric impeller propulsion. It is designed for the WeMoTec Mini-Fan evo, an impeller with a diameter of 69 mm. With a suitable choice of propulsion system, a thrust-to-weight ratio of almost 1:1 is possible. The intake ducts are made of GRP and already installed in the fuselage; they only need to be connected to the chosen impeller. Although landing gear is not required for take-off and landing, electric retractable landing gear can be installed in this version of the kit at your discretion. The building instructions provide some tips and recommendations for this.

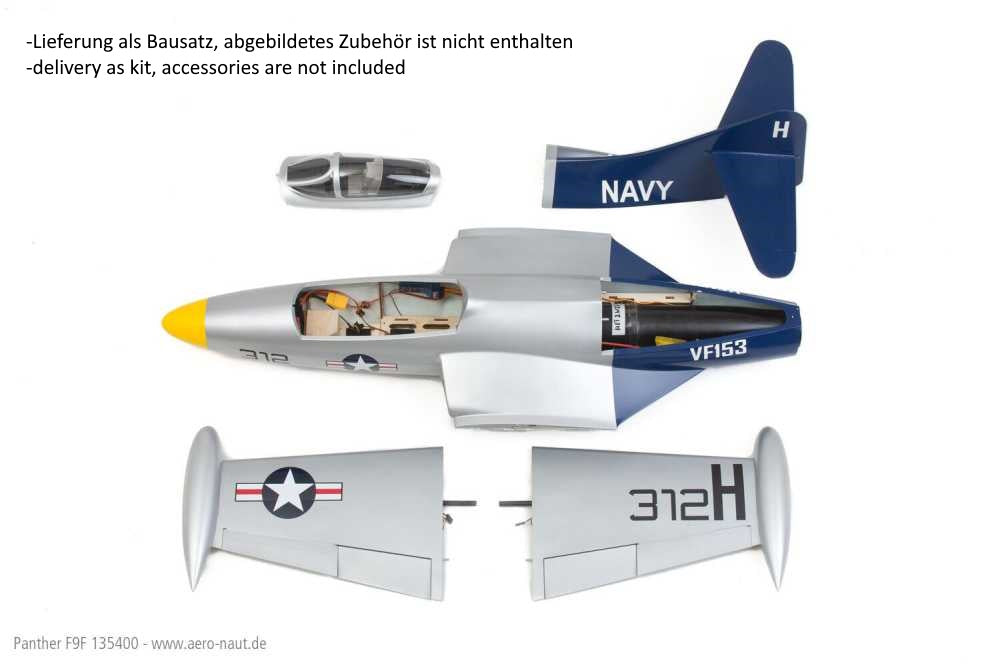

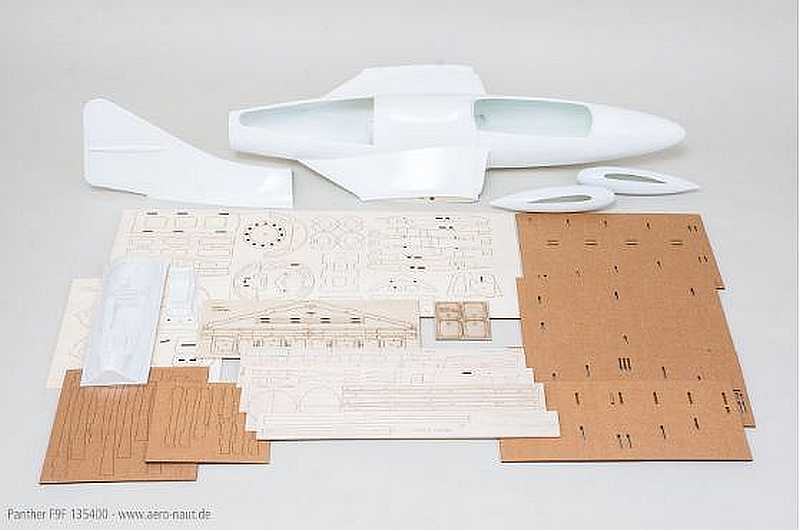

The kit contains:
  • GRP fuselage and GRP tail fin
  • GRP tip tanks
  • Laser-cut parts for the construction of the wings and tailplane
  • Mounting parts adapted for 69 mm impellers
  • Vacuum-formed parts for the cockpit interior
  • RC installation aids (battery slide, etc.)
  • Various small parts
  • Detailed building instructions with 3D drawings

Recommended propulsion:

Normal drive:

  • Impeller evo/HET 2W20 (WeMoTec)
  • Matching nozzle: MF D28 (WeMoTec)
  • Controller: actrocon 60A
  • Battery: 4S LiPo, 2,400 to 3,000 mAh
  • Thrust: approx. 1.3 kp

Power drive:

  • Impeller evo/HET 2W27 (WeMoTec)
  • Matching nozzle: MF D28 (WeMoTec)
  • Battery: 6S LiPo, 3,000 to 4,000 mAh
  • Controller: JETI SPIN 100 Pro
  • Thrust: approx. 1.8 kp
Recommended battery
4-6S
Length
1 mm
Wingspan
1090 mm
Flight weight
6:00 PM - 10:00 PM g
Wing area
17.4 dm²
Wing loading
103 g/dm²
Material
Holz / GFK
Prefabrication level
Kit
Flight experience
Expert
RC functions
Elevator, Engine, Flaps, Aileron
Aero-Naut-Modellbau
Street Stuttgarter Str. 18
Postal code 72766
City Reutlingen
Country DE
