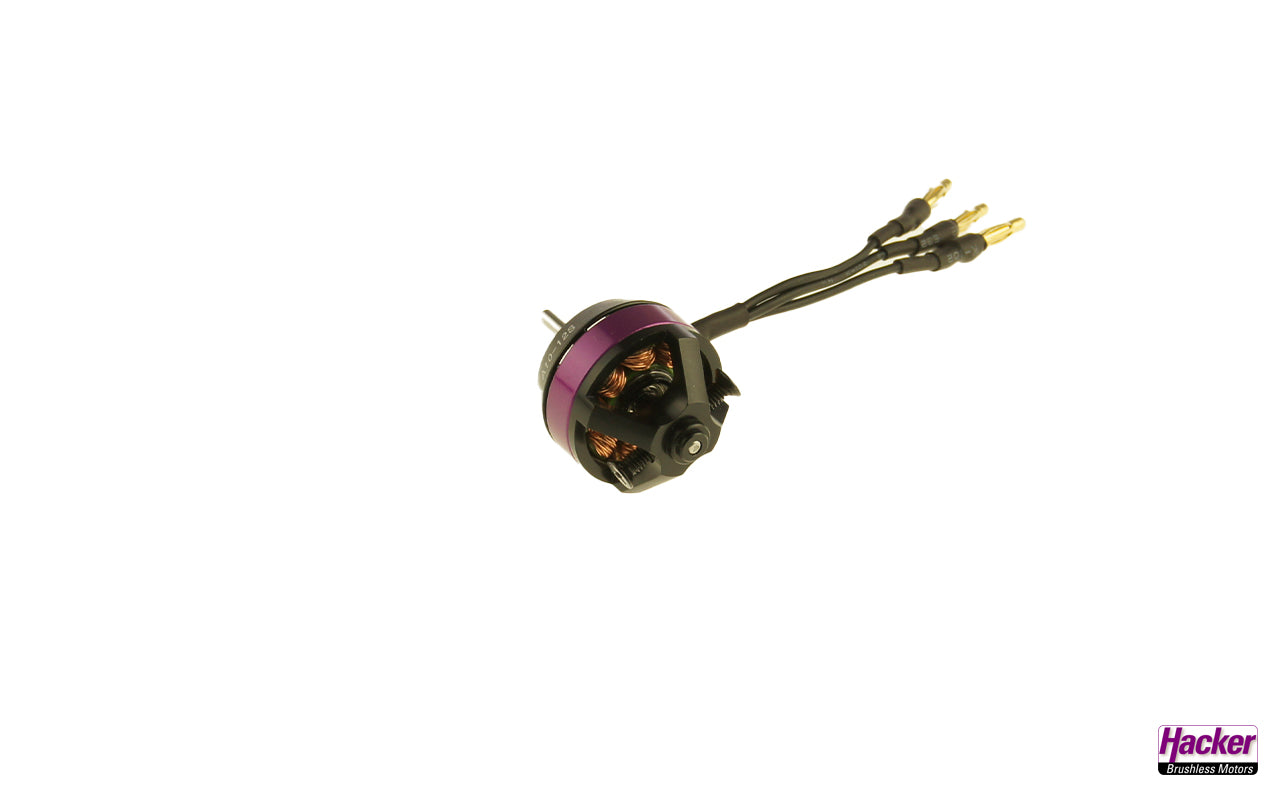

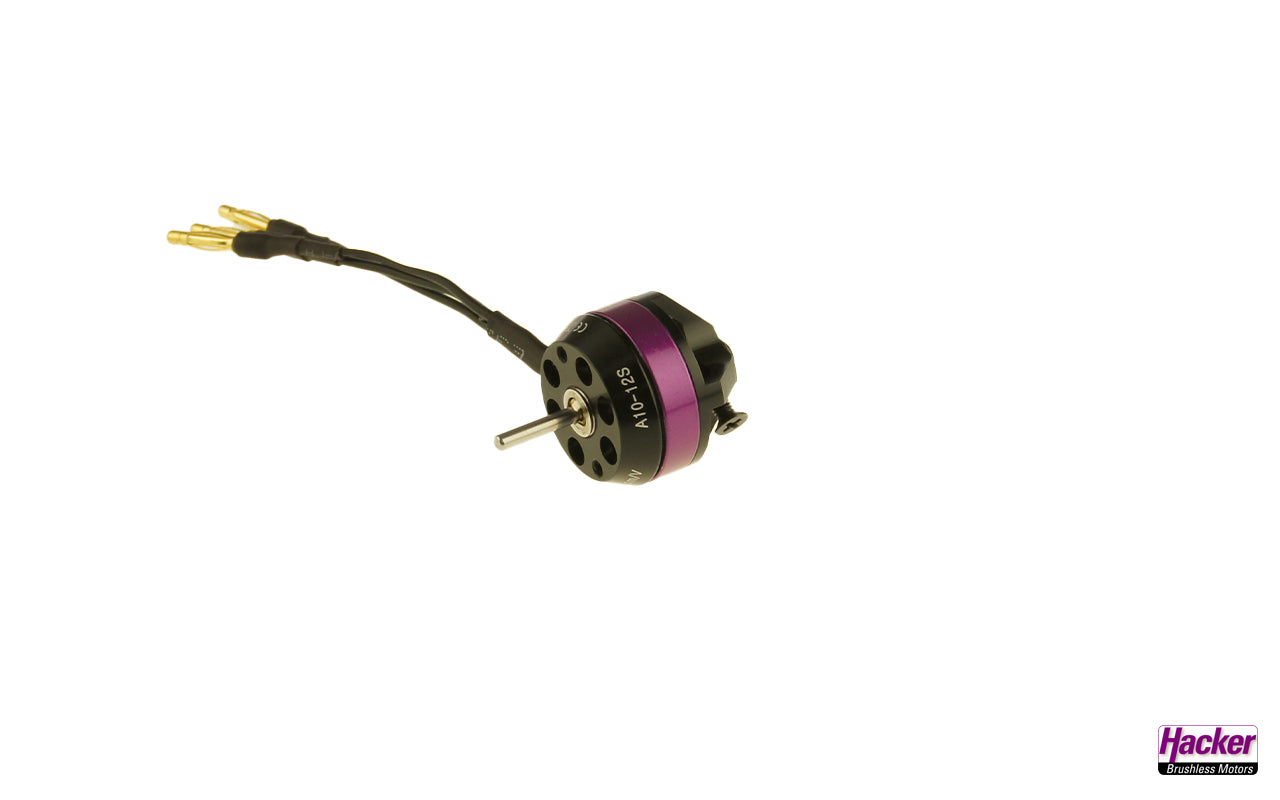

Hacker A10-12S

The A-10 outrunner completes the Hacker product range at the lower end for the smallest indoor and 3D models, up to mini park flyers and the smallest gliders. The special feature of this motor is the integrated prop saver, which prevents shafts from bending.

As is customary with Hacker, these motors are available in various lengths and thus power classes.

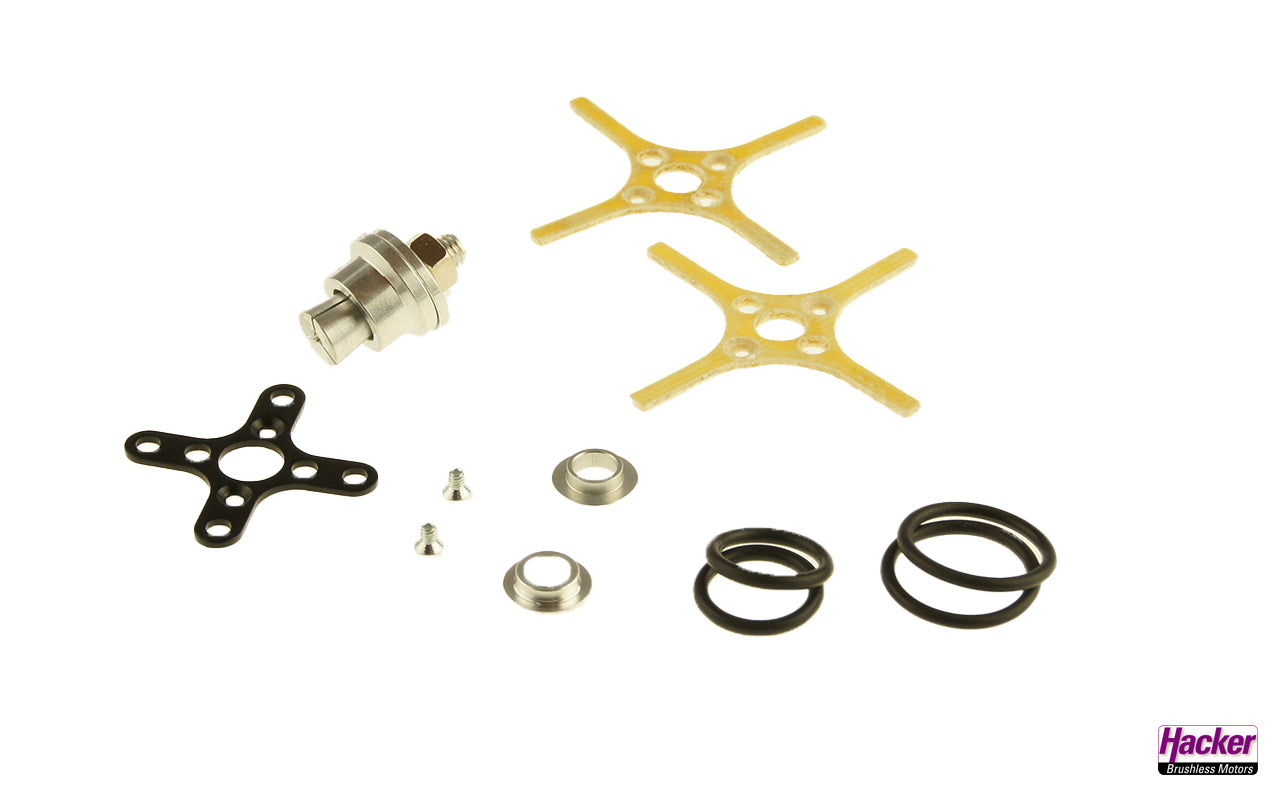

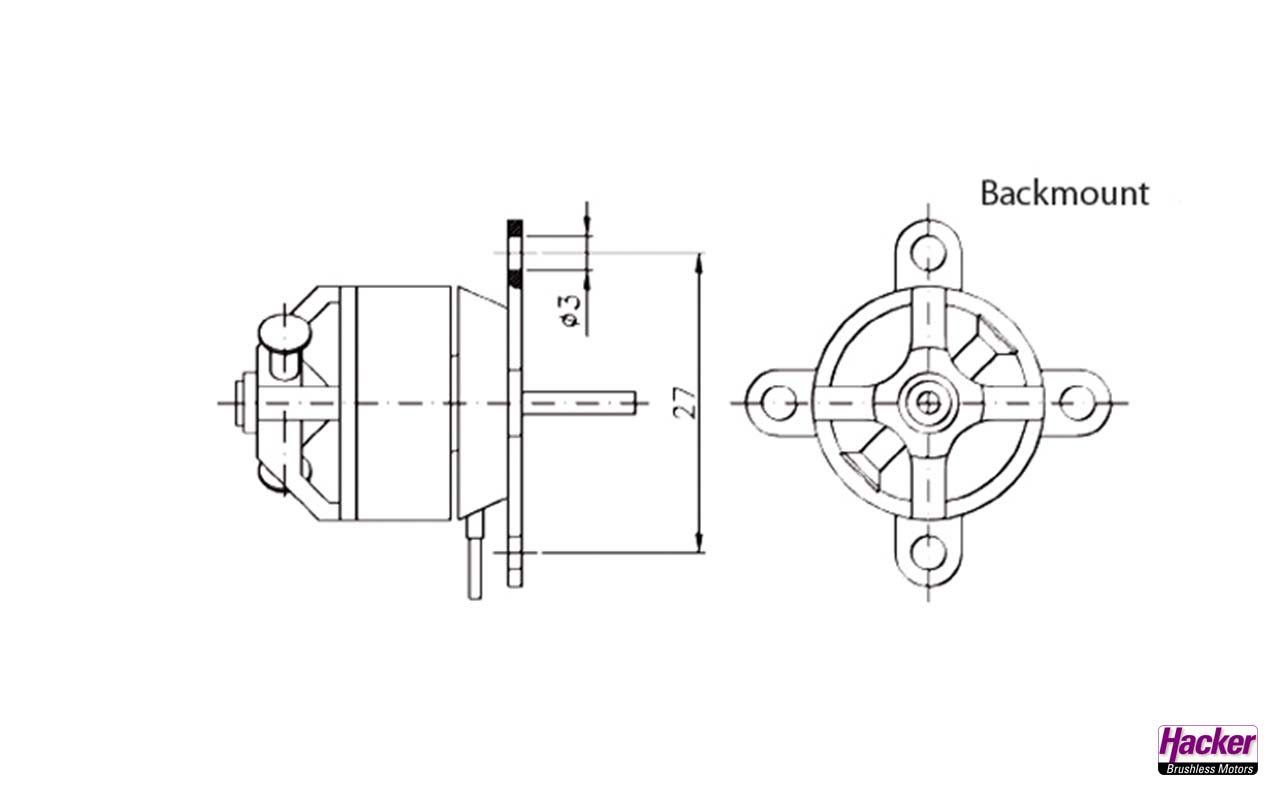

Accessories include a mounting kit for rear attachment in aluminum and GRP, as well as rubber rings, an adapter ring for common slow-fly props, and all necessary screws for the motor.

The A10-12S motor is suitable for gliders up to 300g, sport and scale models up to 250g, and even 3D aerobatic models up to 160g are perfectly powered with it.

Propeller Measurement Data:

• Power Source :            Power Supply
• Propeller [inches]:    GWS 4.5x4   -    Power Supply  GWS 5x3
• Voltage [Volt:               7.0          -           7.0
• Current [Ampere]:              5.1          -            5.0
• RPM [U/min-1]:       14640        -         14920
• Power [Watt]:               36           -             35

Technical Data:

• Manufacturer: Hacker
• Power Range:  max. 55W (15 sec.)
• No-load Current at 8.4V:  1.0A
• Internal Resistance:  0.185 Ohm
• No-load Speed per Volt:  2900 U/min-1

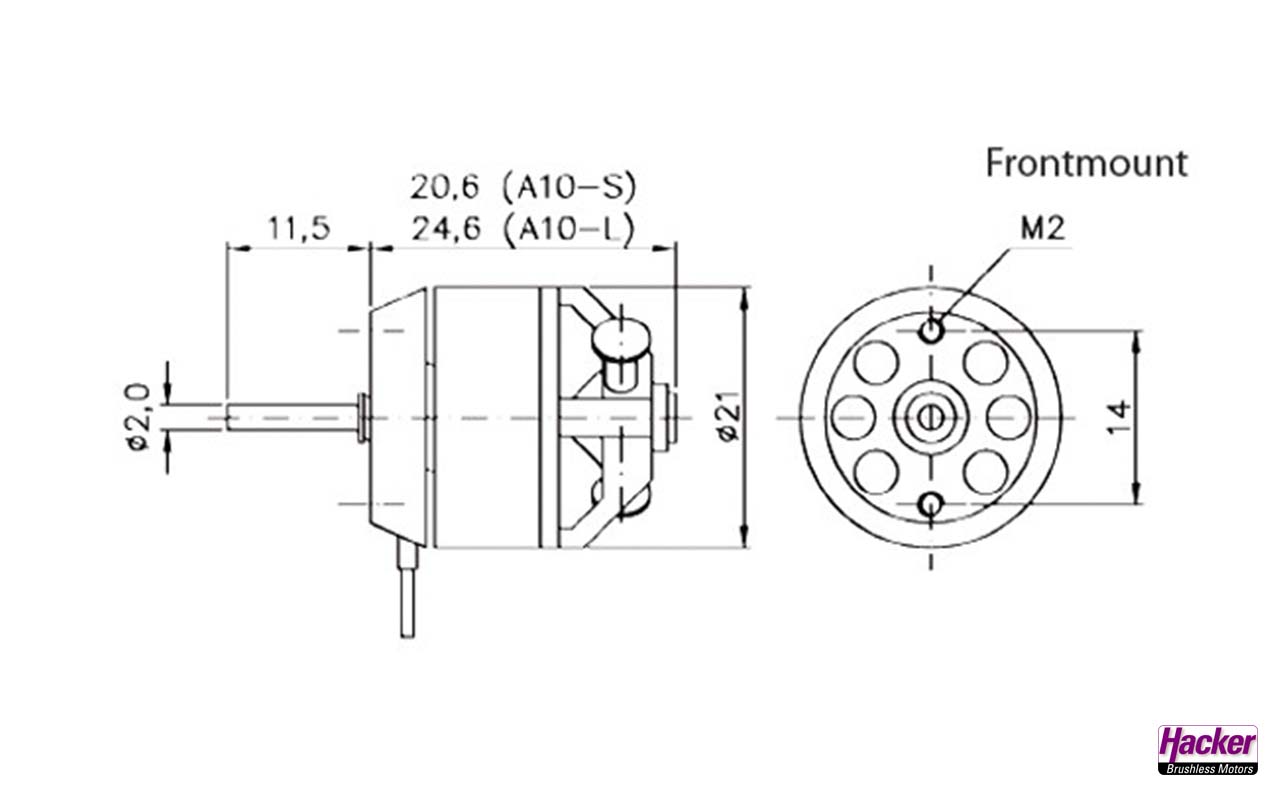

• Outer Diameter: 21mm
• Length: 21mm
• Motor Shaft:  ø2mm 11.5mm long
• Weight: 15g
• Motor Type: 12-pole Outrunner
• Controller Recommendation:  4 to 7 Ampere brushless
• Battery Recommendation:  2S/350mA
