Hacker A10-13L

The A-10 outrunner rounds out the Hacker product range for the smallest indoor and 3D models up to mini park flyers and small gliders. The special feature of this motor is the integrated prop saver, which eliminates bent shafts.

As is typical for Hacker, these motors are available in various lengths and thus power classes.

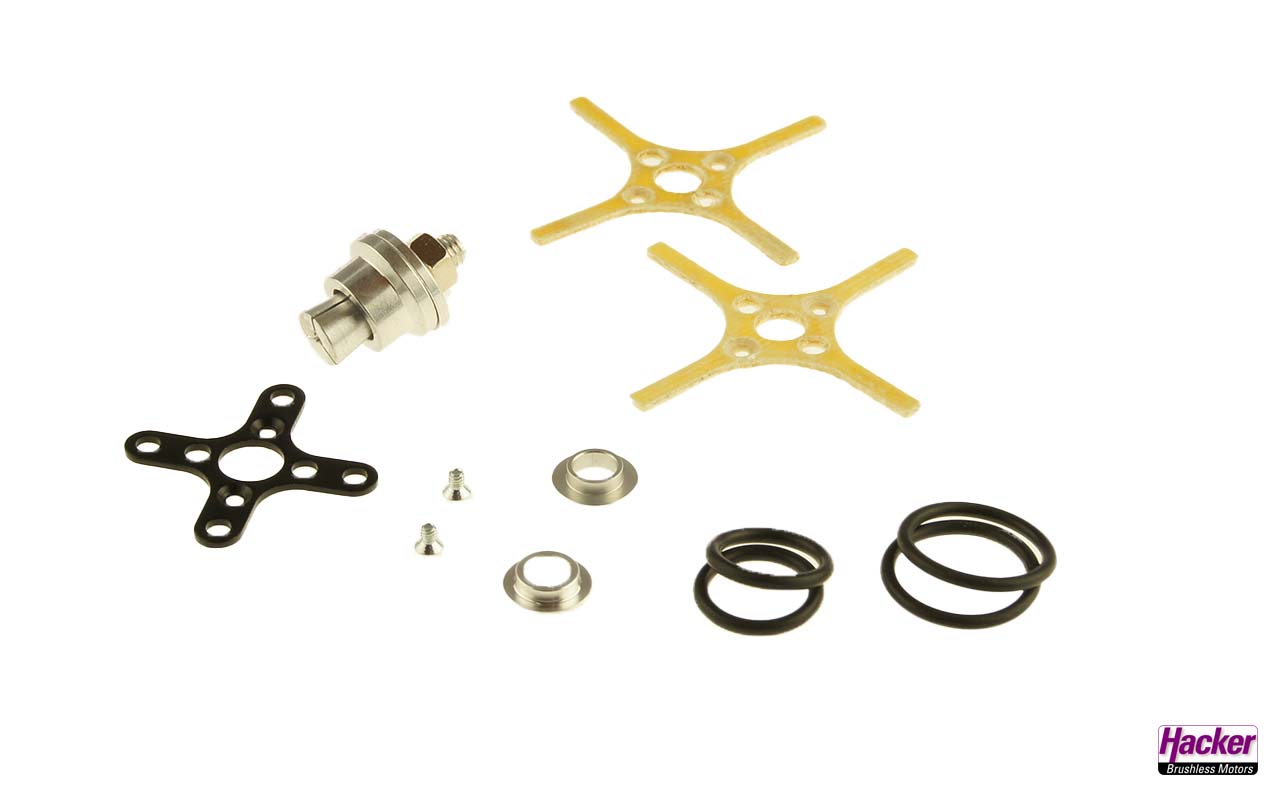

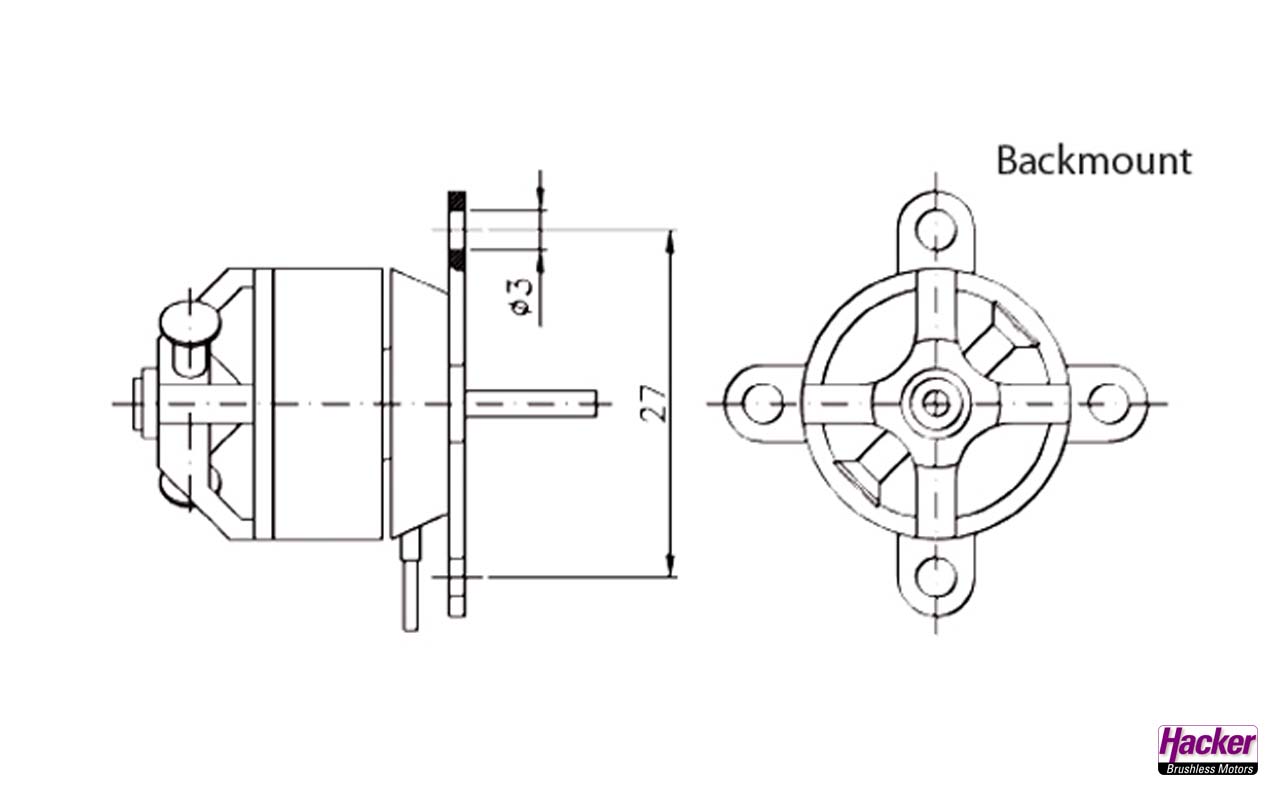

A mounting kit for rear mounting in aluminum and fiberglass is included as an accessory, as are rubber O-rings and an adapter ring for common slow-fly props and all necessary screws.

The A10-13L motor is suitable for gliders up to 500g, sport and scale models up to 400g, and even 3D aerobatic models up to 200g.

Propeller measurements:

• Power Source:                  Power Supply             Power Supply             Power Supply
• Propeller [inches]:  GWS 7x3.5        GWS 8x3.8     APC 8x3.8 Slow
• Voltage [Volts]:            10.5                   10.5                   10.5
• Current [Amperes]:              3.8                    7.0                     7.3
• RPM [U/min-1]:      10860                 8150                  7700
• Power [Watts]:               40                     74                      77

Technical data:

• Manufacturer:  Hacker
• Power range:  max. 75W (15 sec.)
• No-load current at 8.4V: 0.39A
• Internal resistance: 0.28 Ohm
• No-load speed per volt: 1200 U/min-1

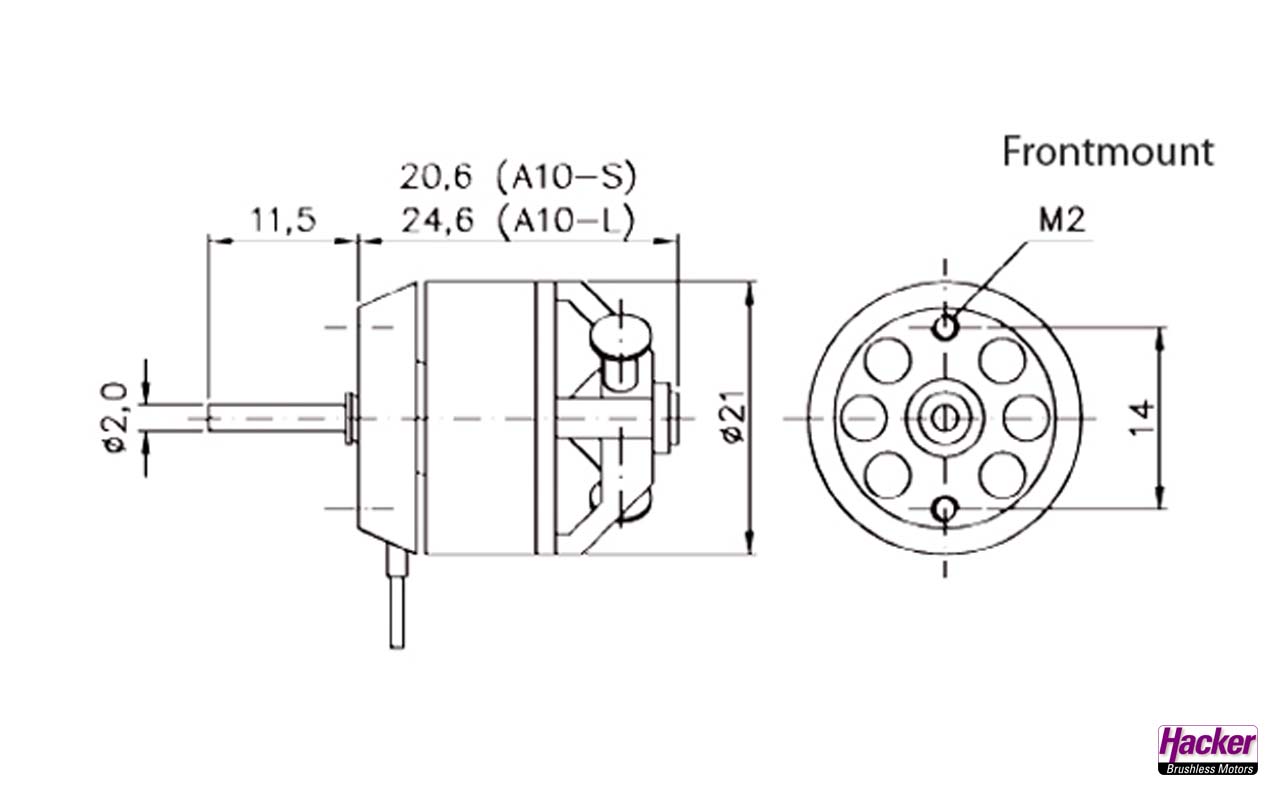

• Outer diameter: 21mm
• Length: 25mm
• Motor shaft: ø2mm 11.5mm long
• Weight: 20g
• Motor type: 12-pole outrunner
• Controller recommendation: 7 to 12 Ampere brushless
• Battery recommendation e.g.  3S/350mAh
