Hacker A10-15S

The A-10 outrunner completes Hacker's product range for the smallest indoor and 3D models, up to mini park flyers and the smallest gliders. The special feature of this motor is the integrated prop saver, which prevents shafts from bending.

As is customary with Hacker, these motors are available in various lengths and thus power classes.

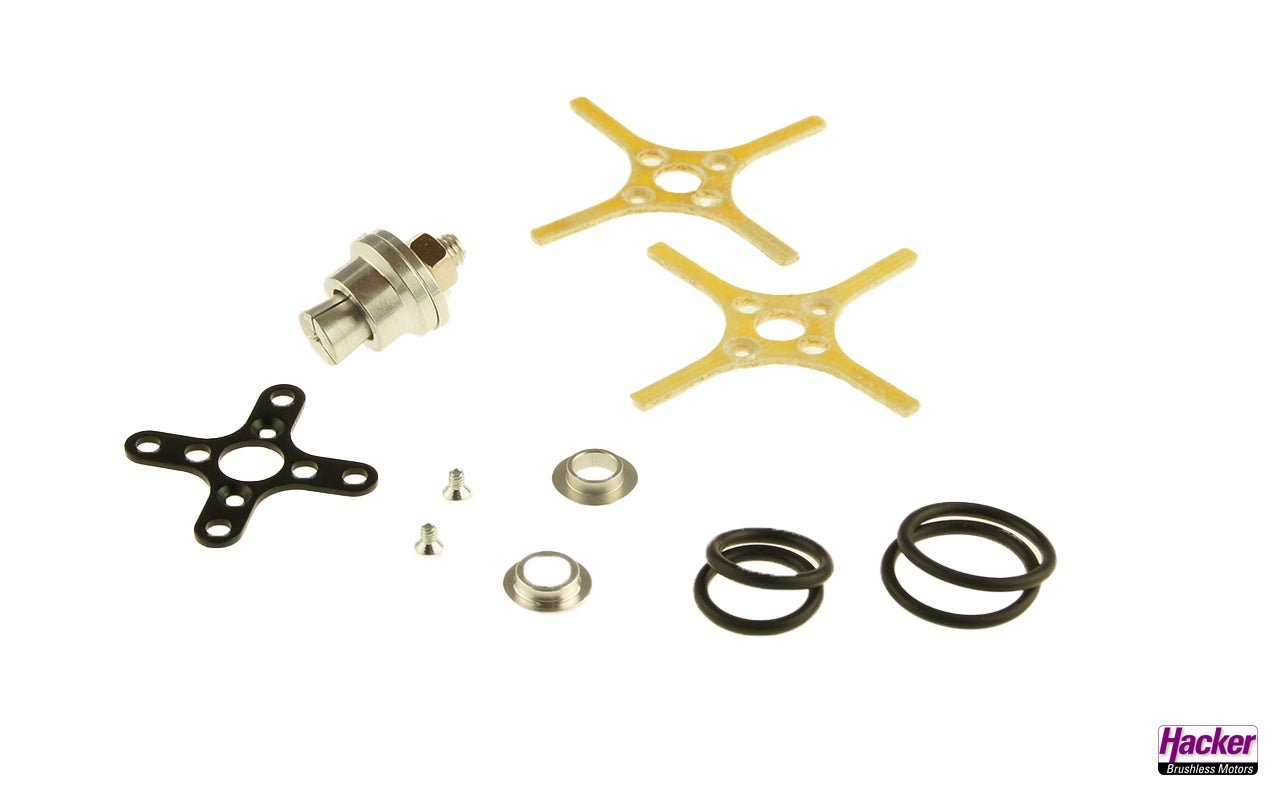

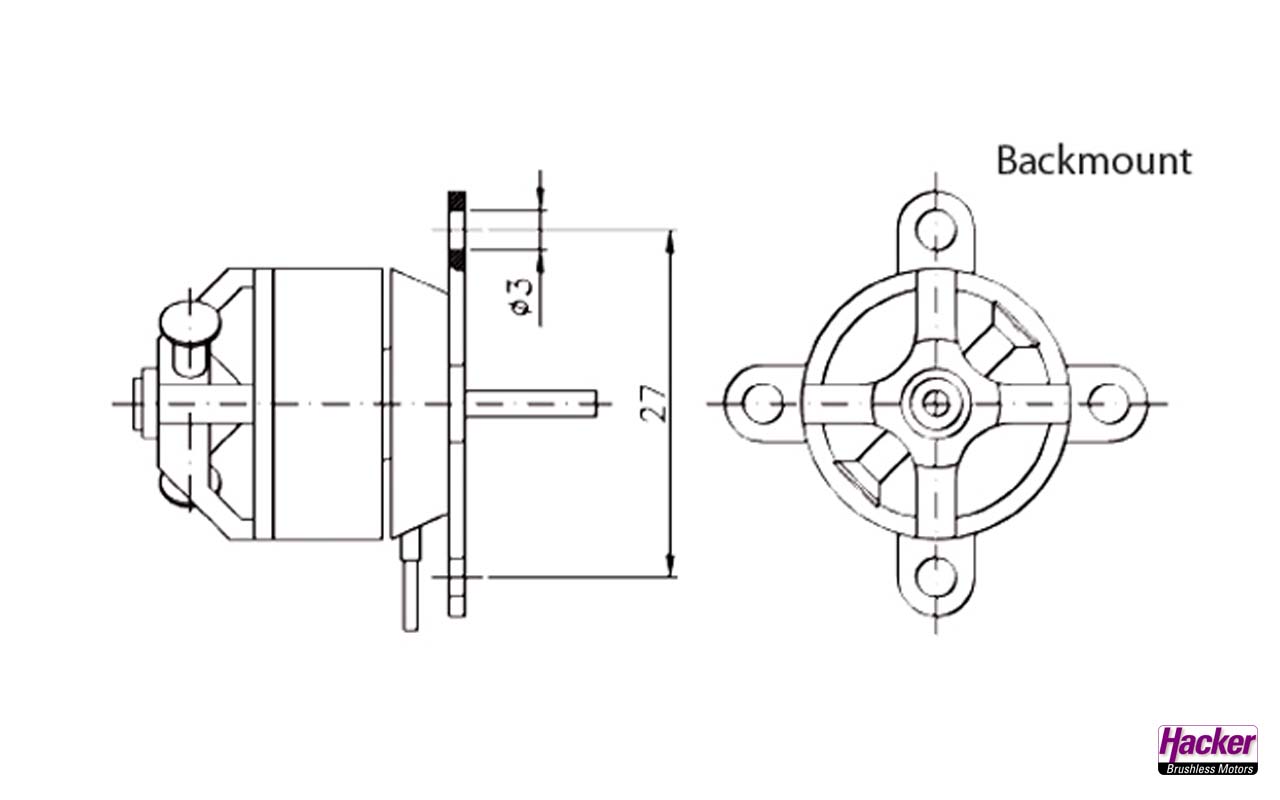

Accessories include an aluminum and fiberglass mounting kit for rear attachment, as well as rubber O-rings and an adapter ring for common slow-fly props, and all necessary screws.

The A10-15S motor is suitable for gliders up to 300g, sport and scale models up to 250g, and even 3D aerobatic models up to 160g are perfectly powered with it.

Propeller Measured Values:

• Power Source:                  Power Supply     -     Power Supply     -     Power Supply
• Propeller [inch]:    GWS 6x3       GWS 7x3.5      APC 7x4 Slow
• Voltage [Volt]:              7.0                   7.0                    7.0
• Current [Ampere]:              4.6                    6.0                   7.0
• RPM [U/min-1]:        11270               9880                8010
• Power [Watt]:                37                     42                    49

Technical Data:

• Manufacturer: Hacker
• Power Range: max. 55W (15 sec.)
• No-load current at 8.4V: 0.63A
• Internal Resistance: 0.289 Ohm
• No-load RPM per Volt: 2320 U/min-1

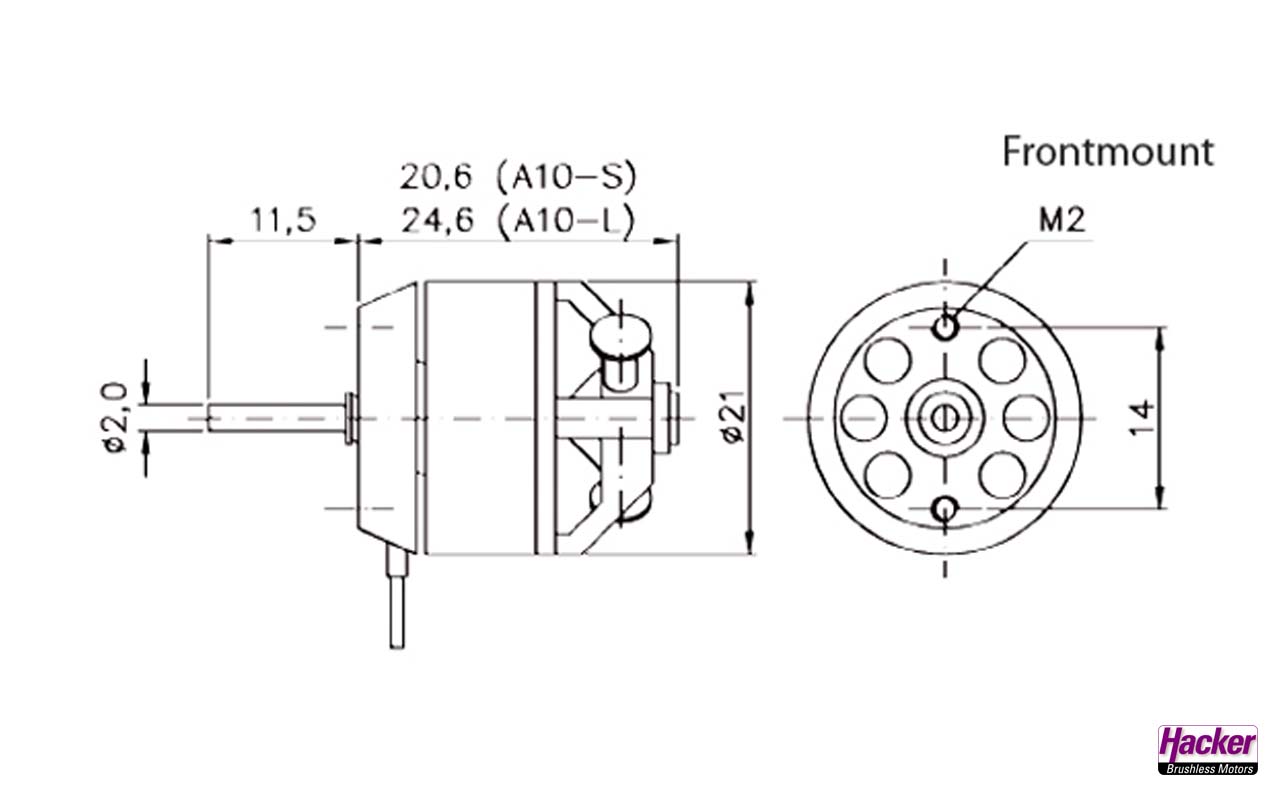

• Outer Diameter: 21mm
• Length: 21mm
• Motor Shaft:  ø2mm 11.5mm long
• Weight: 15g
• Motor Type: 12-pole Outrunner
• Recommended ESC:  4 to 7 Ampere brushless
• Recommended Battery  2S/350mAh
