Hacker A10-9L

The A-10 outrunner completes Hacker's product range for the smallest indoor and 3D models, up to mini park flyers and small gliders. The special feature of this motor is the integrated prop saver, which prevents shafts from bending.

As is typical for Hacker, these motors are available in various lengths and thus power classes.

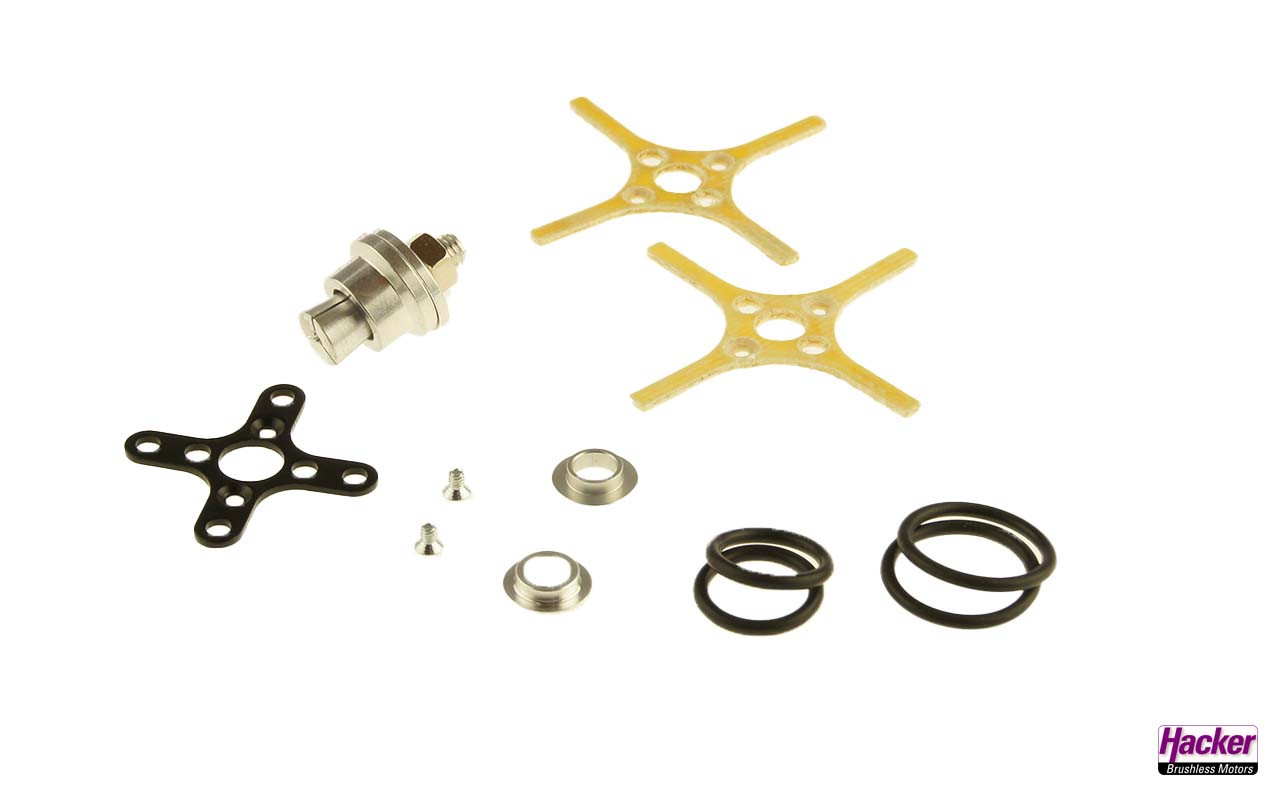

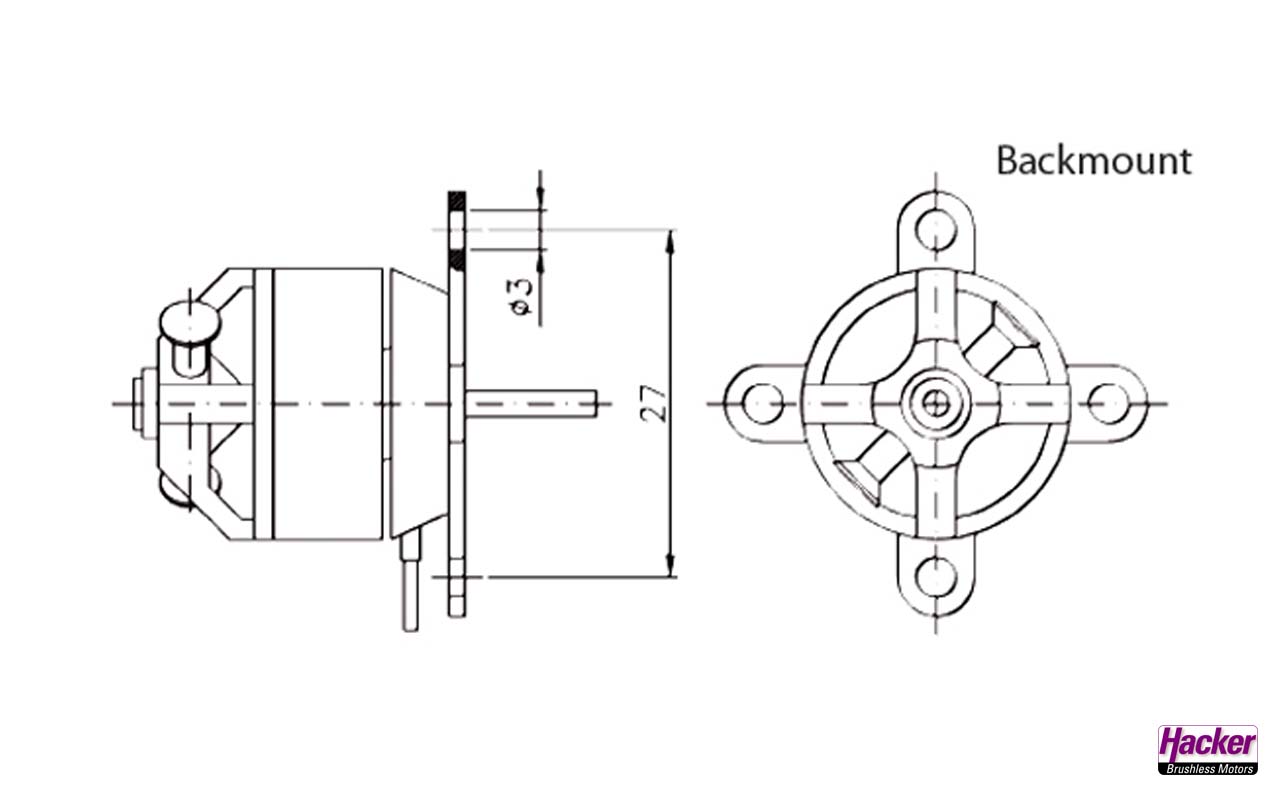

A mounting kit for rear attachment in aluminum and fiberglass is included as an accessory, as are rubber rings and an adapter ring for common slow-fly props, and all necessary screws.

The A10-9L motor is suitable for gliders up to 500g, sport and scale models up to 400g, and even 3D aerobatic models up to 200g are perfectly motorized with it.

Propeller Measurement Data:

• Power Source: Power Supply Power Supply Power Supply
• Propeller [inch]: GWS 8x4.3 APC 8x3.8 Slow Günther 125x110
• Voltage [Volt]: 7.0 7.0 10.5
• Current [Ampere]: 8.9 9.0 7.0
• RPM [rpm-1]: 7900 7800 14750
• Power [Watt]: 62 63 74

Technical Data:

• Manufacturer: Hacker
• Power Range: max. 75W (15 sec.)
• No-load Current at 8.4V: 0.72A
• Internal Resistance: 0.18 Ohm
• No-load Speed per Volt: 1700 U/min-1

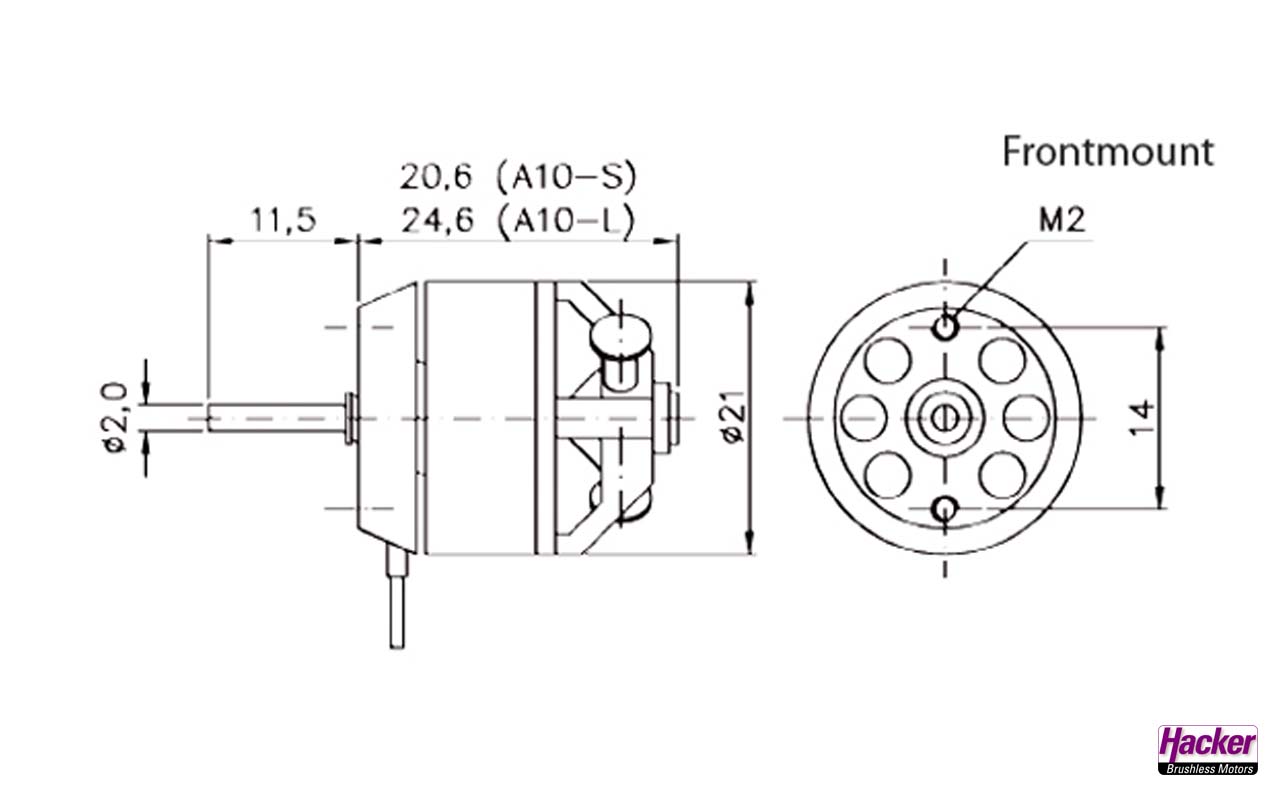

• Outer Diameter: 21mm
• Length: 25mm
• Motor Shaft: ø2mm 11.5mm long
• Weight: 20g
• Motor Type: 12-pole Outrunner
• Controller Recommendation: 7 to 12 Ampere brushless
• Battery Recommendation e.g.: 2-3S/400mAh

All technical data and measurements are manufacturer specifications! Errors, typos, price changes, and availability reserved.
