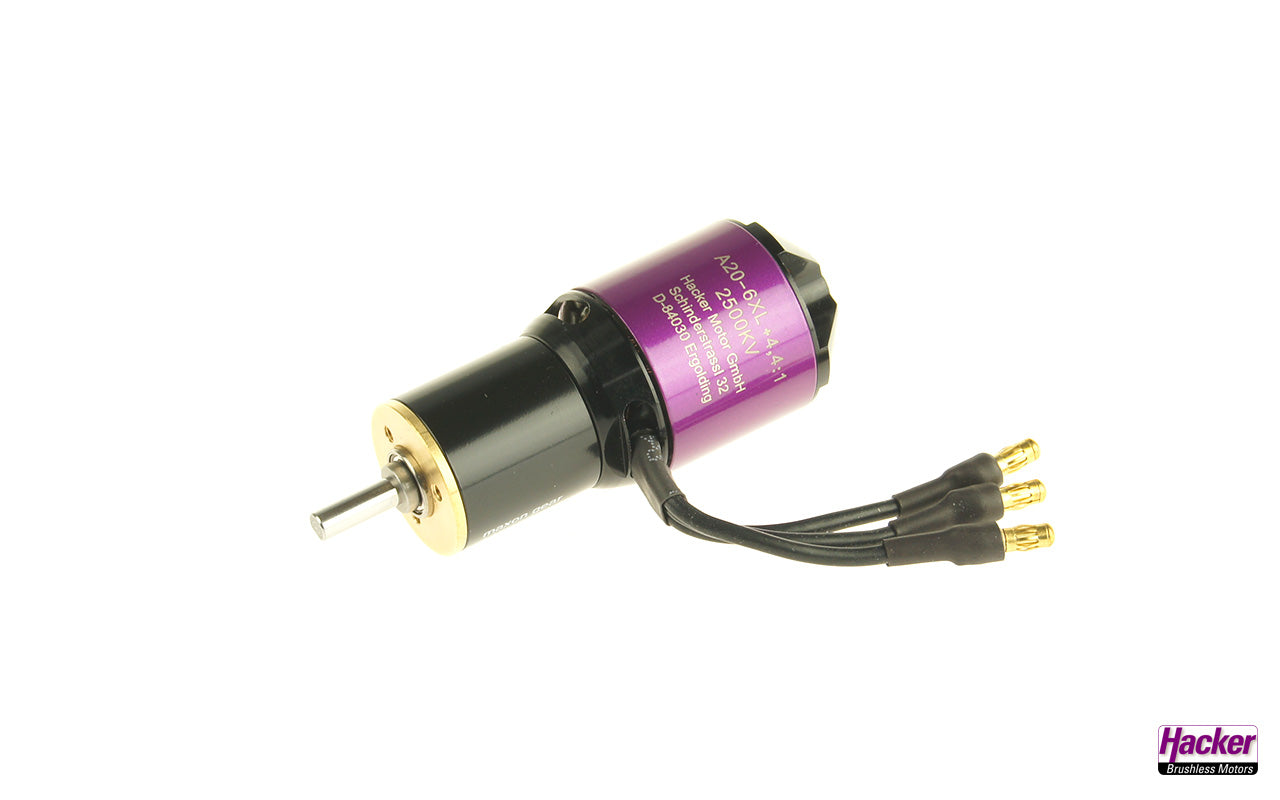

Hacker A20- 6XL, 10-pole EVO with Maxxon 4.4:1 gearbox
A20-6XL EVO with 4.4:1 Gearbox
The A-20-6XL with Maxxon 4.4:1 gearbox is a powerful outrunner motor particularly suitable for slender glider fuselages. The achievable power is extremely high due to the gear reduction and the large propellers that can be used, and all this with very low weight.
Short-term power output of up to 600 watts (max. 15 sec.) at approx. 120 grams speaks for itself.
Propeller Measured Values:
- Power Source: Power Supply Power Supply
- Propeller [inches]: Aero.CAM Carbon 16x8 Aero.CAM Carbon 13x11
- Voltage [Volts]: 10.5 14.0
- Current [Amperes]: 36.9 44.4
- RPM [U/min-1]: 5361 7235
- Power [Watts]: 387* 622*
*only permitted for short-term operation (max. 15 sec.)
Technical Data:
- Manufacturer: Hacker
- Power Range: max. 340W (15 sec.)
- No-load Current at 8.4V: 3.5A
- Internal Resistance: 0.02 Ohm
- No-load Speed per Volt: 2500 RPM-1 (Motor)

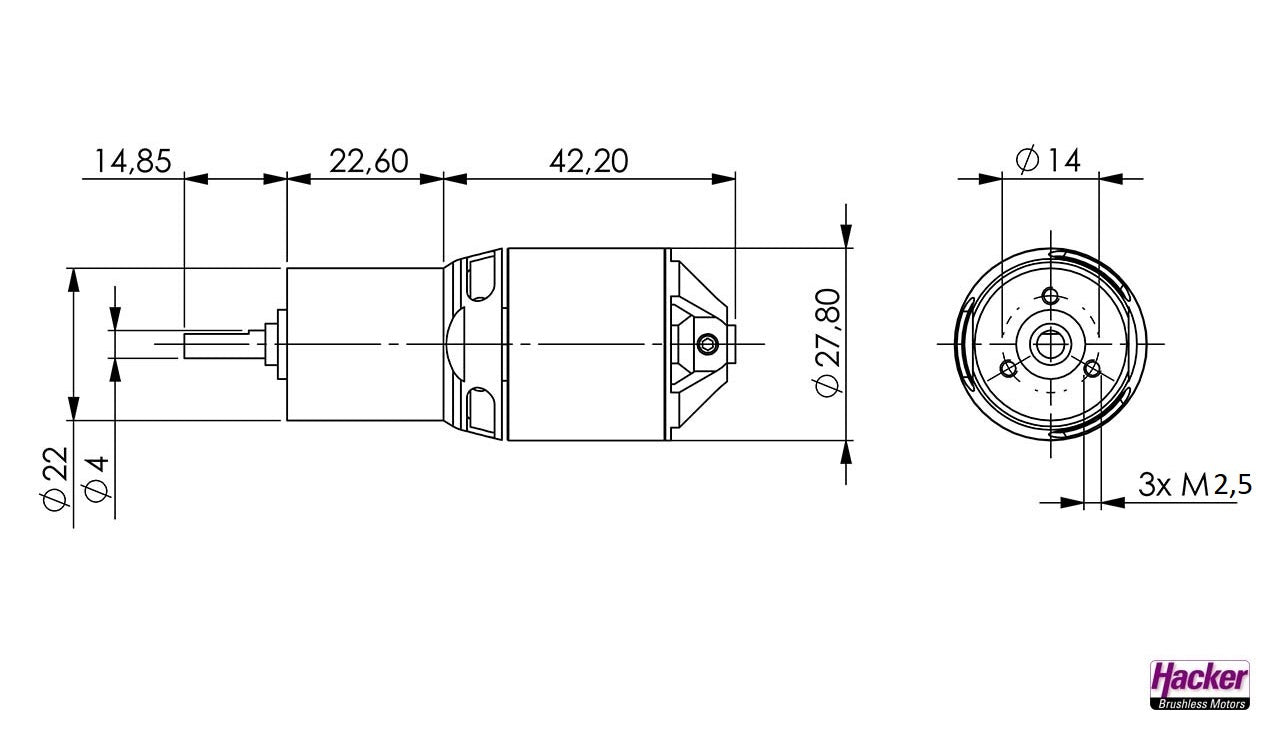

- Outer Diameter: 28mm
- Length approx.: 65mm
- Gearbox Shaft: ø4mm
- Weight: 120g
- Motor Type: 10-pole Outrunner with Gearbox
- Controller Recommendation: 40-55 Ampere brushless
- Battery Recommendation: 3S-4S LiPo
