Hacker A40-8L, V2, 8-pole with gearbox 6.75:1, 194 rpm/V
Hacker A40-8L, V2, 8 Pole with Gearbox 6.75:1, 194U/min/V
The Hacker A40 V2 series motors have further improved power density and efficiency. The new housing design eliminated the need for a thin-section bearing, an innovative concept that saves both weight and the thin-section bearing itself.
This results in less weight and less friction. The A40 motors have never been so powerful. The A40 V2-8-pole outrunner is ideal for applications where 14-pole motors offer too little speed (e.g., helis or fast model aircraft). In conjunction with the Hacker 6.7:1 gearbox, this results in extremely powerful drives for large gliders up to 10kg.
Propeller Measurement Values:
- Power Source: Power Supply Power Supply
- Propeller [inch]: 20x13 RFM "CFK" - 23x12 RFM "CFK"
- Voltage [Volt]: 28.0 (8 LiPo) - 28.0 (8 LiPo)
- Current [Ampere]: 53.3 - 62.7
- RPM [U/min-1]: 5427 - 5346
- Power [Watt]: 1493* - 1757*
*max. 15 sec. permissible

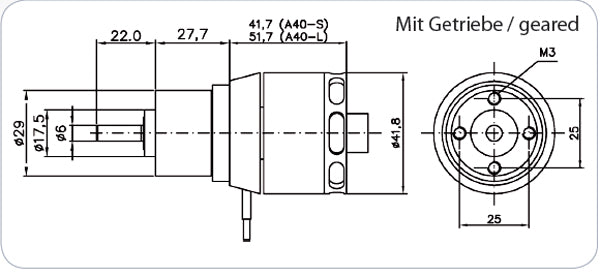

Technical Data:
- Manufacturer: Hacker
- Power Range: max.1100W (15 sec.)
- No-load Speed per Volt: 194 U/min-1
- Outer Diameter: 41.7mm
- Length: 76mm
- Gear Shaft: ø6mm
- Weight: 315g
- Motor Type: 8-pole Outrunner with 6.7:1 Gearbox
- Controller Recommendation: 70 to 90A brushless
