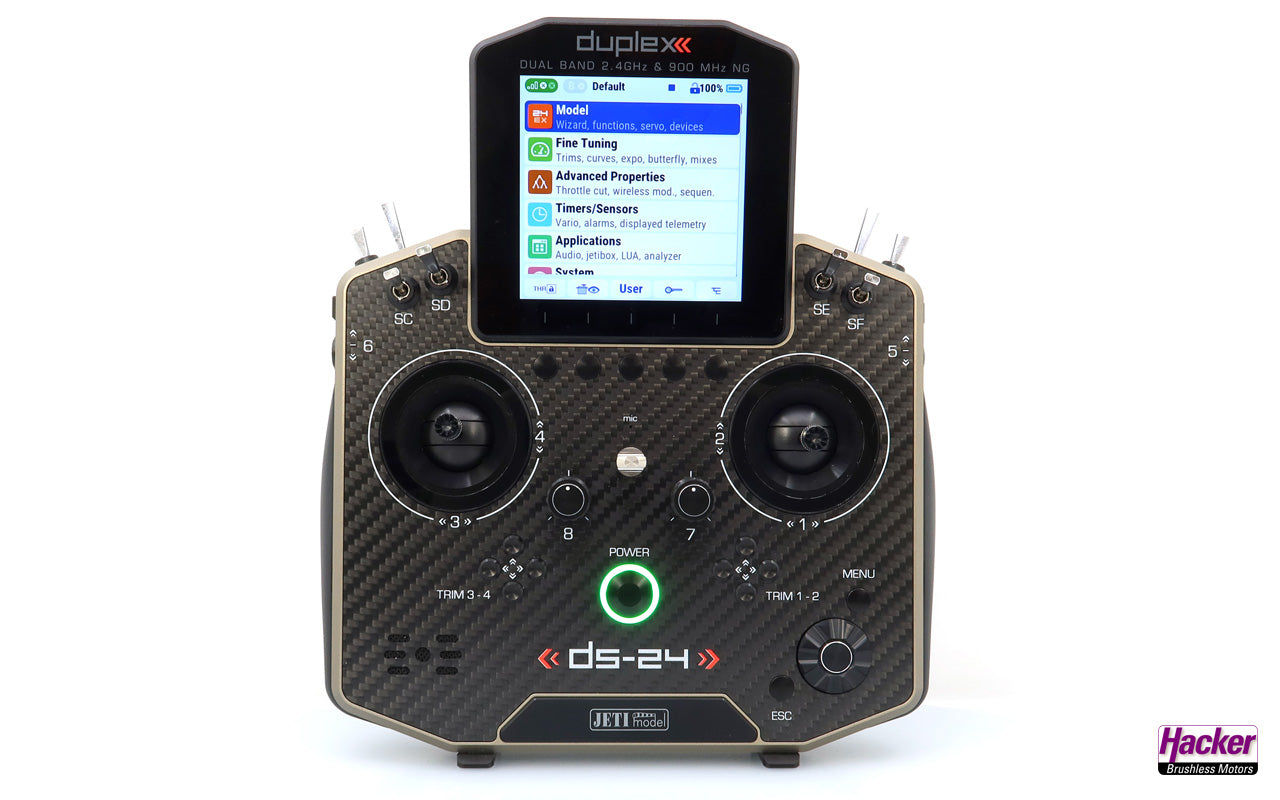

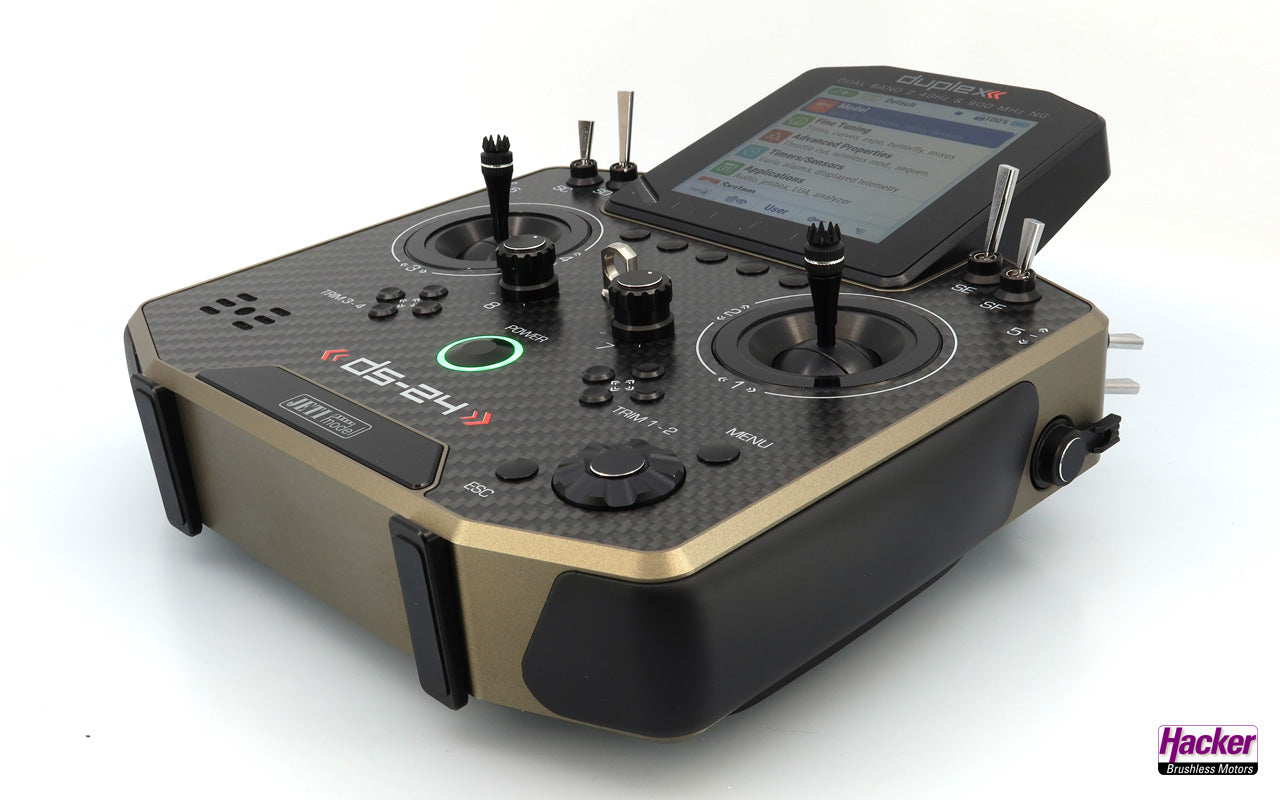

Handheld Transmitter DS-24 II Carbon Line Bronze Anodized, Hacker # 80001890

Description

The latest generation of the DS-24 transmitter has been fundamentally improved and its range of functions expanded. The timeless design has been further revised and the weight of the aluminum housing reduced. This has significantly improved comfort and ergonomics.
In addition to the existing support for Bluetooth headsets, a smartphone app (Android/iOS) has been added, which allows telemetry data to be displayed on the smartphone via Bluetooth. The DS-24 II features new gimbal assemblies that can now be fully adjusted externally, including mode changes.
The new 4-inch color display offers higher resolution and stronger contrast and, in conjunction with the redesigned menu, significantly simplifies operation.

Scope of Delivery

Handheld transmitter DS-24 II Carbon Line Bronze anodized (delivery condition Mode 2, control mode very easy to change), REX12 Assist receiver with accessories, aluminum case, transmitter battery built-in, charger for transmitter battery, USB-C charging cable, transmitter strap, DUPLEX Pad, cleaning cloth, assembly tool, operating manual

Features

• New gimbal assemblies, fully adjustable from the outside
• Side sliders can be reoriented
• Switch change significantly simplified
• Rotary encoders P7+8 can be replaced by switches

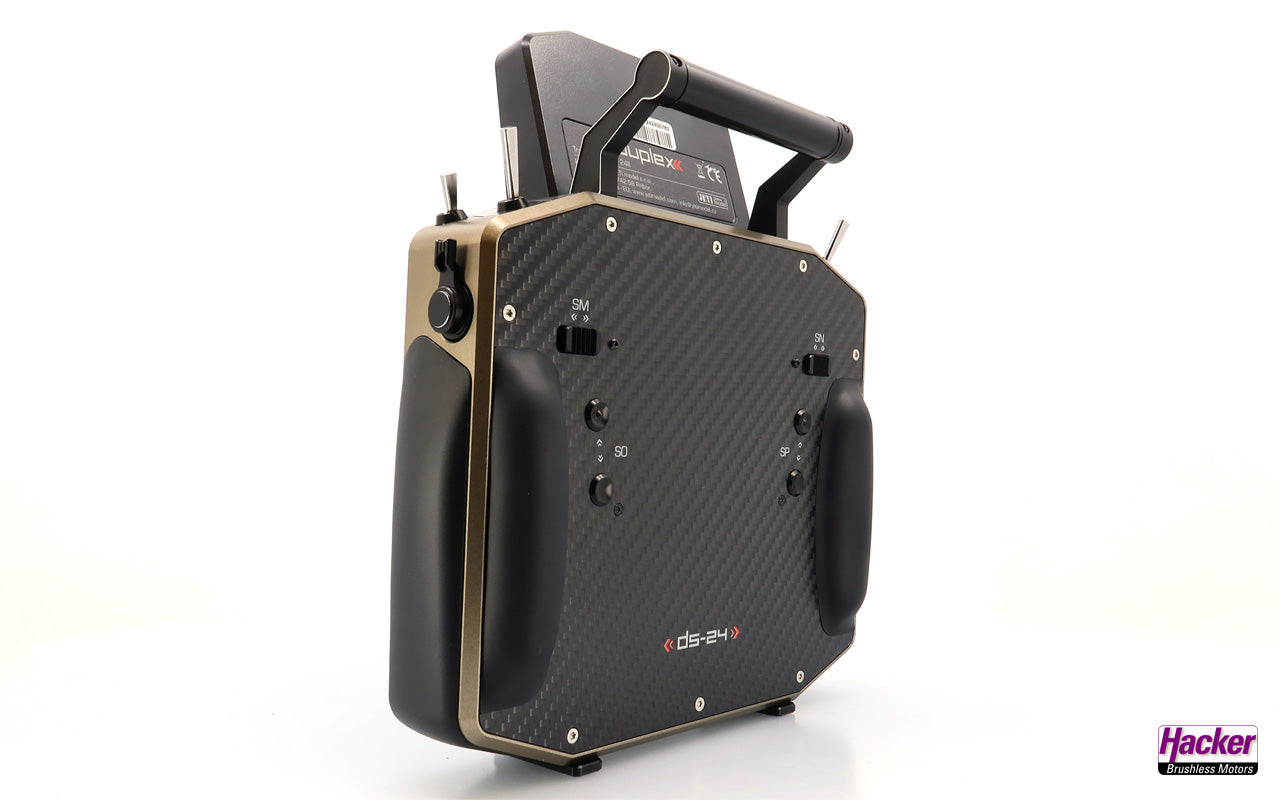

• New ergonomics of the rear housing
• 4-inch LCD color display with high contrast
• Bluetooth support for headphones
• Bluetooth telemetry transmission to smartphones
• Online updates via WiFi (available later)
• Android/iOS app for telemetry display
• 900 MHz NG Backup system
• New menu structure design
• Reduced weight
• One connection for PPM and headphones
• USB-C socket (charging function, data connection PC/Mac)
• Full compatibility with the DUPLEX system and older JETI transmitters
• Vibration alarm on joysticks left/right, 3-level
• New color variants

900 MHz NG Backup System

This is an independent, second transmission system in a second frequency range. If this system is used, the model can still be controlled even if the 2.4Ghz band is interfered with (e.g., by directional radio, for drone flights for television broadcasts, etc.). The 900Mhz NG Backup system only becomes active if this occurs. This significantly enhances safety in high-quality models. Of course, this backup system can be activated or deactivated separately for each model. It is always used together with the 2.4Ghz transmission system, not individually.

Transmitter Hardware

• Multimode joysticks adjustable from the outside
• Detection of stick positions by Hall sensors (without potentiometers)
• Stick travel resolution 4096 steps
• 4-inch 480x480 color display, backlit
• Rotatable gimbal assemblies
• Full aluminum joysticks/assemblies, length-adjustable, ball-bearing
• Internal memory
• Integrated antennas
• Integrated Li-Ion battery for long operating time
• Charger and USB-C charging cable
• Aluminum transport case
• Integrated loudspeaker
• Bluetooth and WiFi module
• USB-C socket
• Headphone and PPM socket
• Digital trims
• Anodized aluminum housing

Transmitter Software

• 2.4 GHz DUPLEX EX
• 24 control channels
• Customizable menu navigation
• Almost unlimited setting options
• Almost unlimited number of model memories
• Firmware update via USB and WiFi (available later)
• Ultra-fast control responses
• Power management system for longer operating time
• Bluetooth connection to smartphone app and headphones
• 4 adjustable model types (airplane/heli/functional model; multicopter)
• 8 languages (EN / DE / CZ / FR / IT / PT / SE)

Telemetry Functions

• Voice output of telemetry warnings and telemetry values
• Display of real-time telemetry data on the transmitter display and smartphone app
• Recording of telemetry data
• PC/Mac transfer, storage, and editing of telemetry values
• Saving (backup) of model data and transmitter settings on PC/Mac

Technical Data

• Dimensions [mm] 230 x 270 x 40
• Weight [g] ~1275
