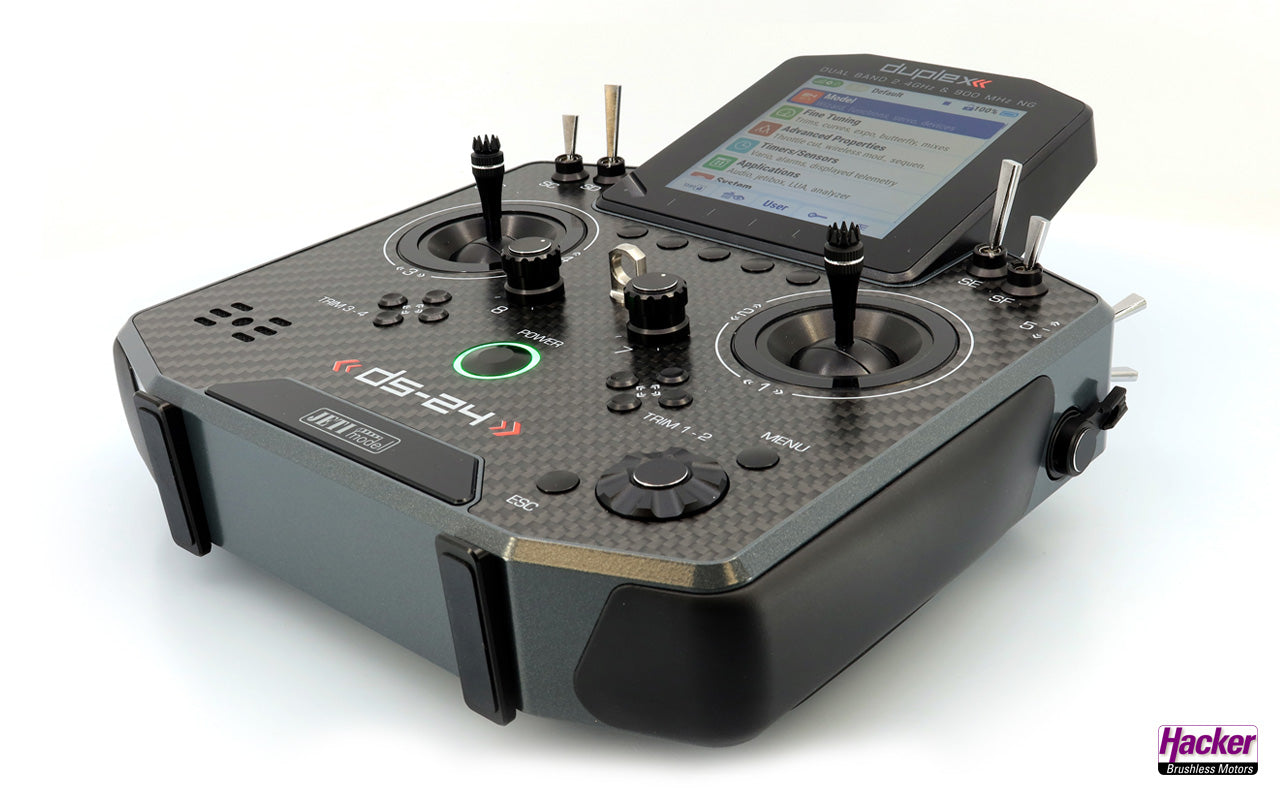

Handheld Transmitter DS-24 II Carbon Line Gray painted, Hacker # 80001891

Description

The latest generation of the DS-24 transmitter has been fundamentally improved and its functionality extended. The timeless design has been further refined, and the weight of the aluminum casing reduced. This has significantly improved wearing comfort and ergonomics.
In addition to the existing support for Bluetooth headsets, a smartphone app (Android/iOS) has been added, allowing telemetry data to be displayed via Bluetooth on the smartphone. The DS-24 II features new stick units that are now fully adjustable from the outside, including mode switching.
The new 4-inch color display offers higher resolution and stronger contrast and, in conjunction with the redesigned menu, significantly simplifies operation.

Scope of Delivery

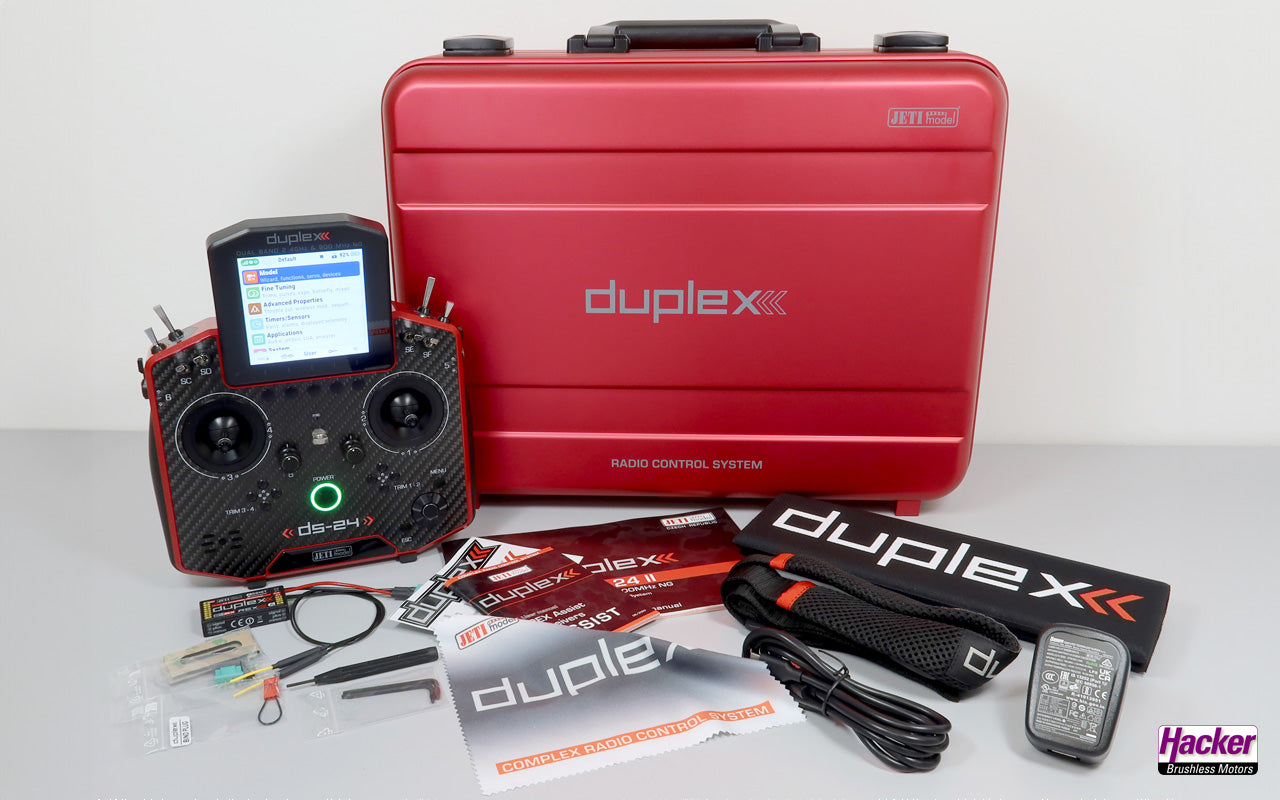

Handheld transmitter DS-24 II Carbon Line Gray painted (default mode 2, control mode very easy to change), REX12 Assist receiver with accessories, aluminum case, built-in transmitter battery, charger for transmitter battery, USB-C charging cable, transmitter strap, DUPLEX Pad, cleaning cloth, assembly tool, instruction manual

Features

• New stick units, fully adjustable from the outside
• Side sliders can be reoriented
• Switch replacement significantly simplified
• Rotary encoders P7+8 can be replaced by switches

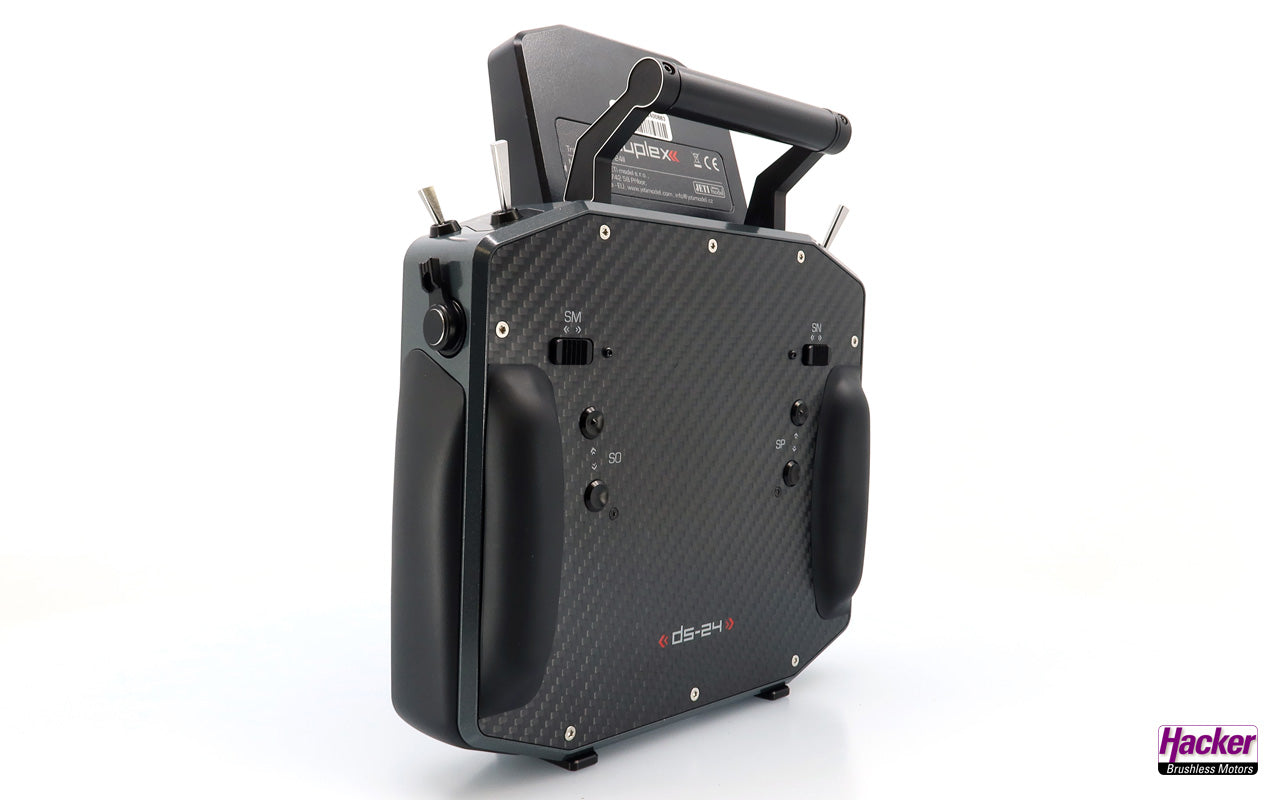

• New ergonomics of the rear casing

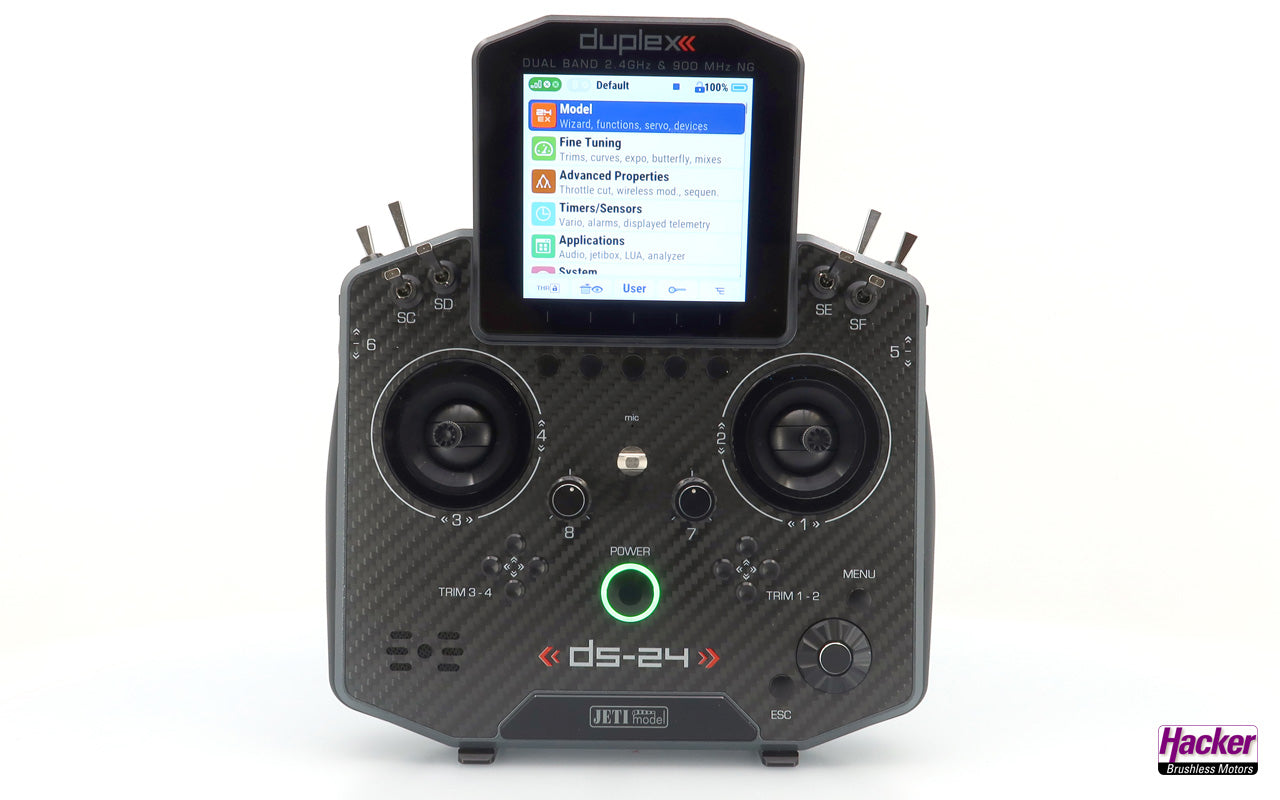

• 4-inch LCD color display with high contrast
• Bluetooth support for headphones
• Bluetooth telemetry transmission to smartphones
• Online updates via WiFi (available later)
• Android/iOS app for telemetry display
• 900 MHz NG Backup system
• New menu structure design
• Reduced weight
• One connection for PPM and headphones
• USB-C socket (charging function, data connection PC/Mac)
• Full compatibility with the DUPLEX system and older JETI transmitters
• Vibration alarm on the control sticks left/right, 3 levels
• New color variants

900 MHz NG Backup System

This is an independent, second transmission system in a second frequency range. If this system is used, the model can continue to be controlled even if the 2.4Ghz band is disturbed (e.g., by directional radio, for drone flights for television broadcasts, etc.). The 900Mhz NG Backup system only becomes active if this occurs. Thus, it significantly enhances safety in high-quality models. Of course, this backup system can be activated or deactivated separately for each model. It is always used together with the 2.4Ghz transmission system, not individually.

Transmitter Hardware

• Multimode control sticks adjustable from the outside
• Determination of stick positions by Hall sensors (without potentiometer)
• Control path resolution 4096 steps
• 4-inch 480x480 color display, backlit
• rotatable stick units
• Full aluminum control sticks/units, length adjustable, ball-bearing
• internal memory
• integrated antennas
• integrated Li-Ion battery for long operating time
• charger and USB-C charging cable
• aluminum transport case
• integrated speaker
• Bluetooth and WiFi module
• USB-C socket
• Headphone and PPM socket
• digital trims
• painted aluminum casing

Transmitter Software

• 2.4 GHz DUPLEX EX
• 24 control channels
• customizable menu navigation
• virtually unlimited setting options
• virtually unlimited number of model memories
• firmware update via USB and WiFi (available later)
• ultra-fast control responses
• power management system for longer operating time
• Bluetooth connection to smartphone app and headphones
• 4 adjustable model types (airplane/heli/functional model; multicopter)
• 8 languages (EN / DE / CZ / FR / IT / PT / SE)

Telemetry Functions

• Voice output of telemetry warnings and telemetry values
• Display of telemetry data in real-time on the transmitter display and smartphone app
• Recording of telemetry data
• PC/Mac transfer, storage, and processing of telemetry values
• Saving (backup) of model data and transmitter settings on PC/Mac

Technical Data

• Dimensions [mm] 230 x 270 x 40
• Weight [g] ~1275
