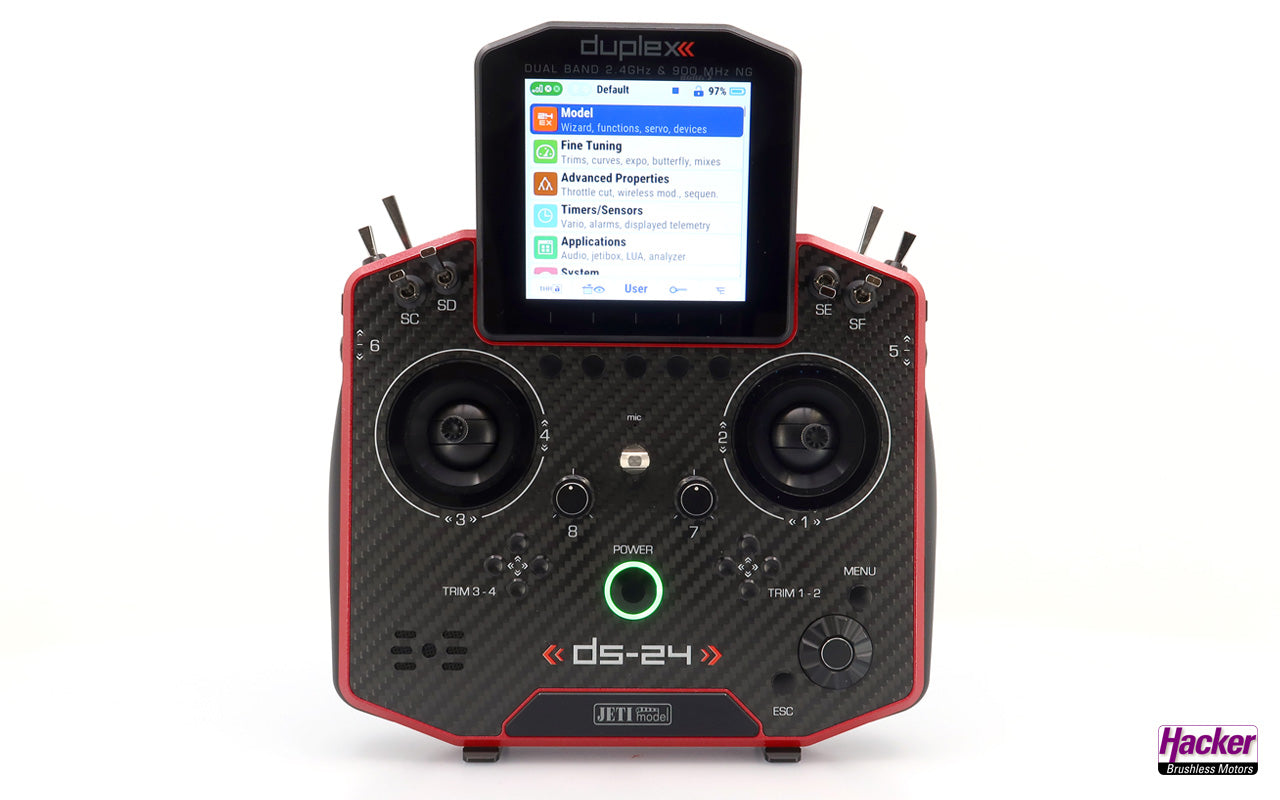

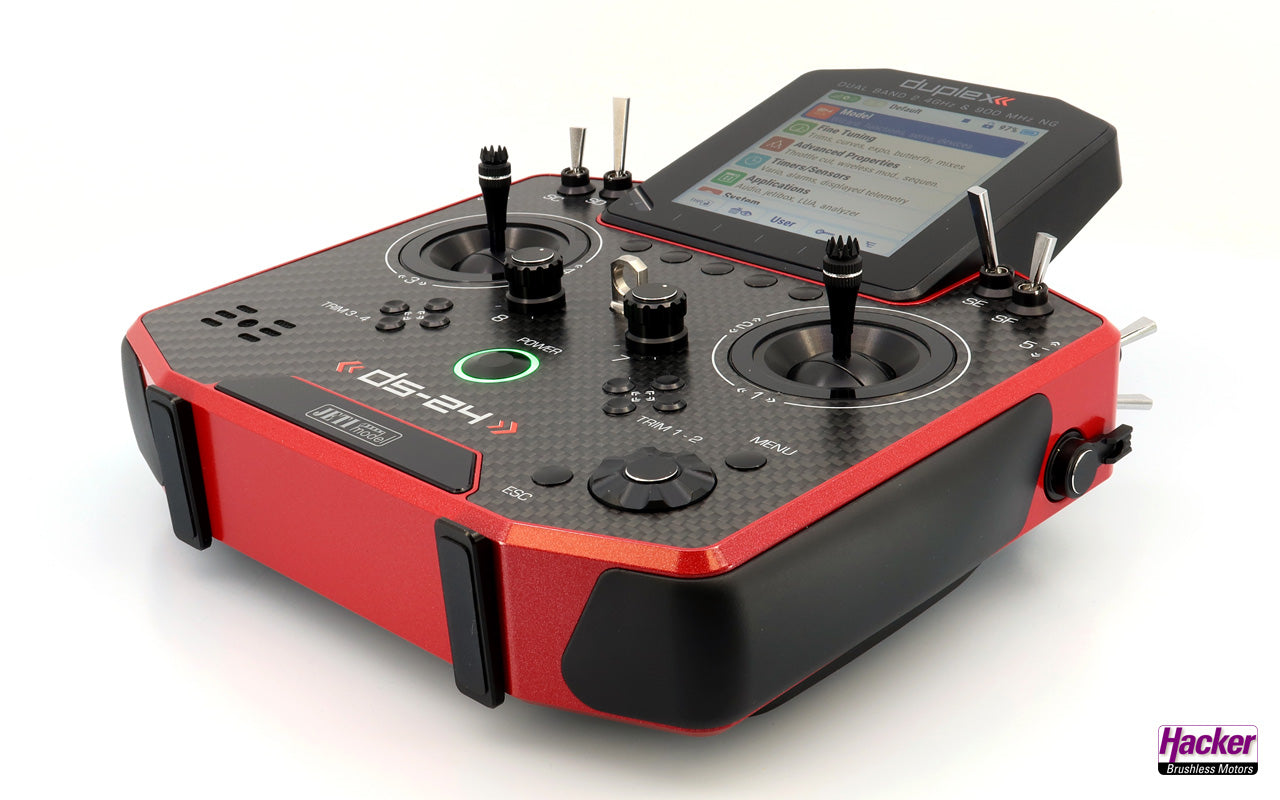

Handheld Transmitter DS-24 II Carbon Line Ruby lacquered, Hacker # 80001893

Description

The latest generation of the DS-24 transmitter has been fundamentally improved and its functionality expanded. The timeless design has been further refined and the weight of the aluminum casing reduced. This has significantly improved wearing comfort and ergonomics.
In addition to the existing support for Bluetooth headsets, a smartphone app (Android/iOS) has been added, which allows telemetry data to be displayed via Bluetooth on the smartphone. The DS-24 II features new gimbal assemblies that are now fully externally adjustable, including mode changes.
The new 4-inch color display offers higher resolution and stronger contrast, significantly simplifying operation in conjunction with the redesigned menu.

Scope of delivery

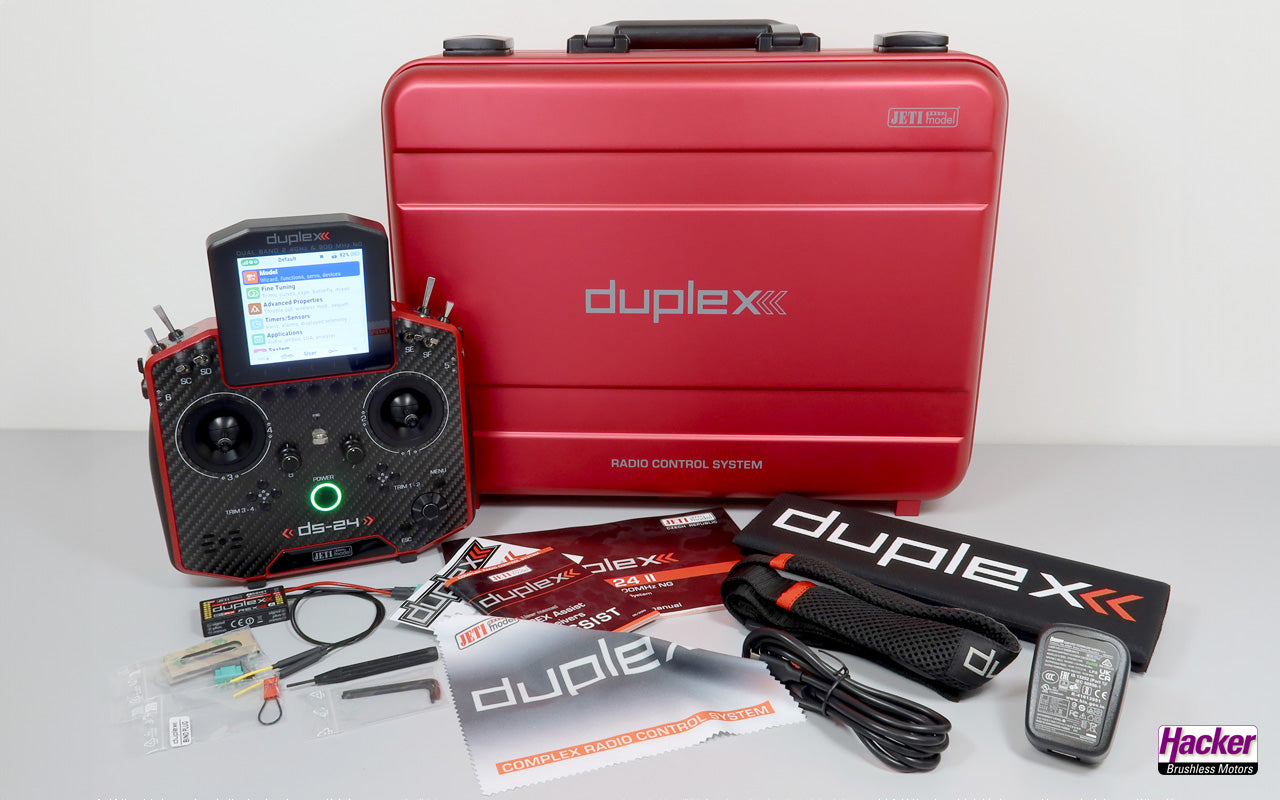

Handheld transmitter DS-24 II Carbon Line Ruby lacquered (factory setting Mode 2, control mode very easy to change), REX12 Assist receiver with accessories, aluminum case, built-in transmitter battery, charger for transmitter battery, USB-C charging cable, transmitter strap, DUPLEX Pad, cleaning cloth, assembly tools, instruction manual

Features

• New gimbal assemblies, fully externally adjustable
• Side sliders can be reoriented
• Switch replacement significantly simplified
• Rotary encoders P7+8 can be replaced by switches

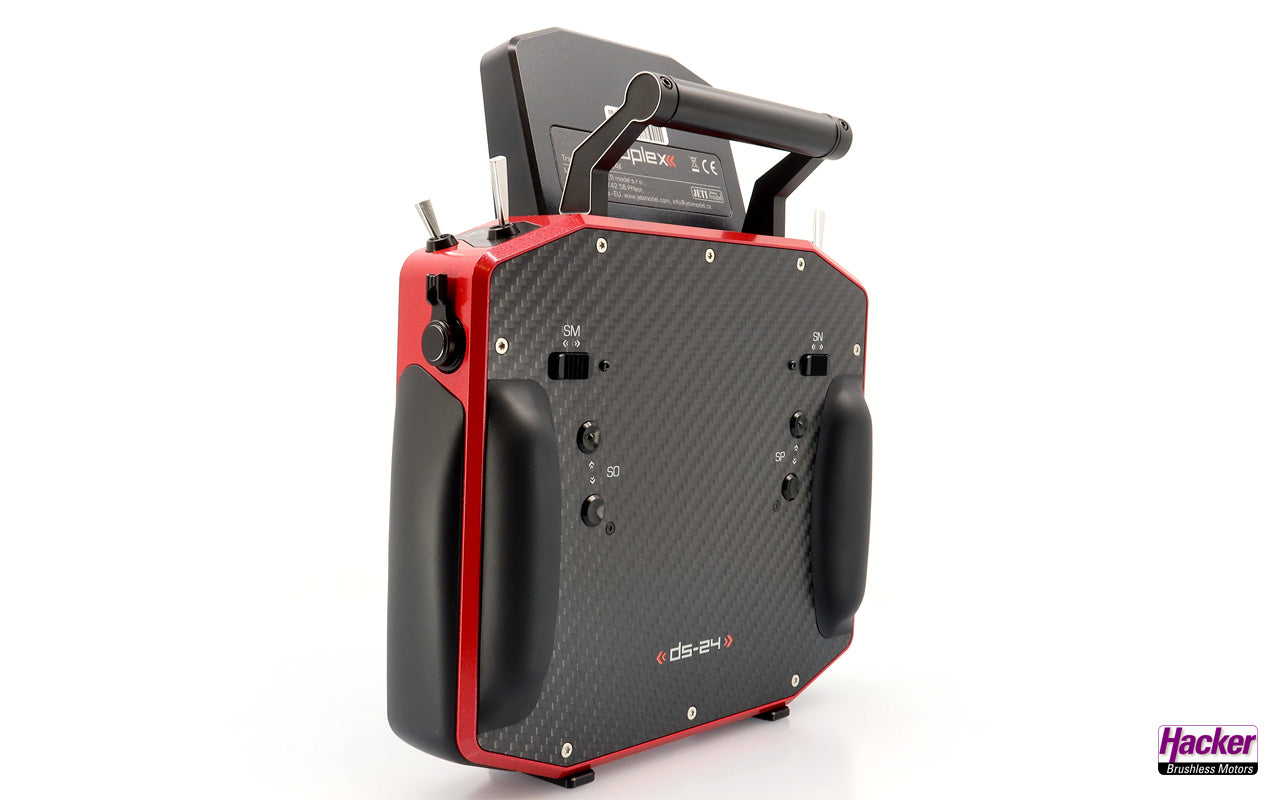

• New ergonomics of the rear casing
• 4-inch LCD color display with high contrast
• Bluetooth support for headphones
• Bluetooth telemetry transmission to smartphones
• Online updates via WiFi (available later)
• Android/iOS app for telemetry display
• 900 MHz NG backup system
• New menu structure design
• Reduced weight
• One connection for PPM and headphones
• USB-C socket (charging function, data connection PC/Mac)
• Full compatibility with the DUPLEX system and older JETI transmitters
• 3-stage vibration alarm on joysticks left/right
• New color variants

900 MHz NG Backup System

This is an independent, second transmission system in a second frequency range. If this system is used, the model can continue to be controlled even if the 2.4Ghz band is disturbed (e.g. by directional radio, during drone flights for television broadcasts, etc.). The 900Mhz NG backup system only becomes active if this occurs. This significantly enhances safety in high-quality models. Of course, this backup system can be activated or deactivated separately for each model. It is always used together with the 2.4Ghz transmission system, not individually.

Transmitter Hardware

• Multimode joysticks adjustable from the outside
• Detection of joystick positions by Hall sensors (without potentiometers)
• Control path resolution 4096 steps
• 4-inch 480x480 color display, backlit
• Rotatable gimbal assemblies
• Full aluminum joysticks/gimbals, length-adjustable, ball-bearing mounted
• Internal memory
• Integrated antennas
• Integrated Li-Ion battery for long operating time
• Charger and USB-C charging cable
• Aluminum transport case
• Integrated speaker
• Bluetooth and WiFi module
• USB-C socket
• Headphone and PPM socket
• Digital trims
• Lacquered aluminum casing

Transmitter Software

• 2.4 GHz DUPLEX EX
• 24 control channels
• Customizable menu navigation
• Almost unlimited setting options
• Almost unlimited number of model memories
• Firmware update via USB and WiFi (available later)
• Ultra-fast control responses
• Power management system for longer operating time
• Bluetooth connection to smartphone app and headphones
• 4 adjustable model types (aircraft/heli/functional model; multicopter)
• 8 languages (EN / DE / CZ / FR / IT / PT / SE)

Telemetry Functions

• Voice output of telemetry warnings and telemetry values
• Real-time display of telemetry data on the transmitter display and smartphone app
• Recording of telemetry data
• PC/Mac transfer, storage, and editing of telemetry values
• Saving (backup) of model data and transmitter settings on PC/Mac

Technical Data

• Dimensions [mm] 230 x 270 x 40
• Weight [g] ~1275
