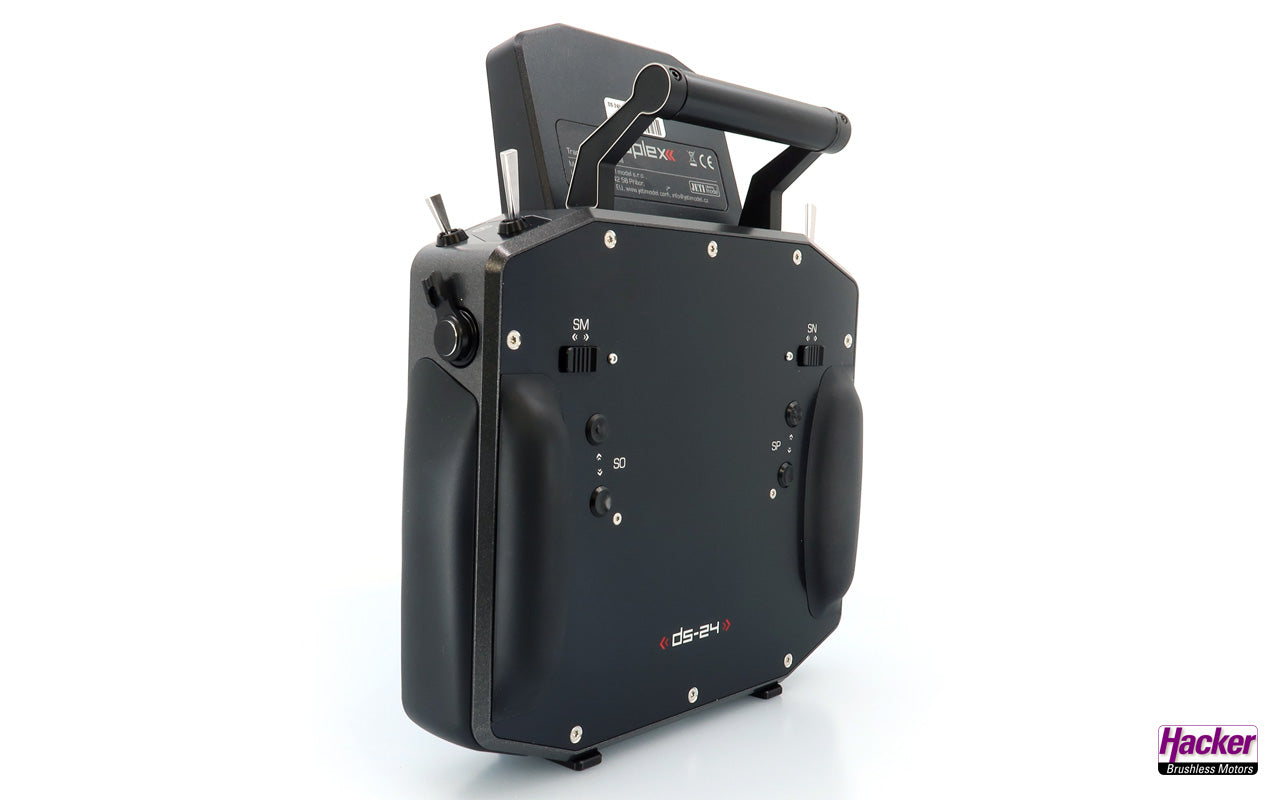

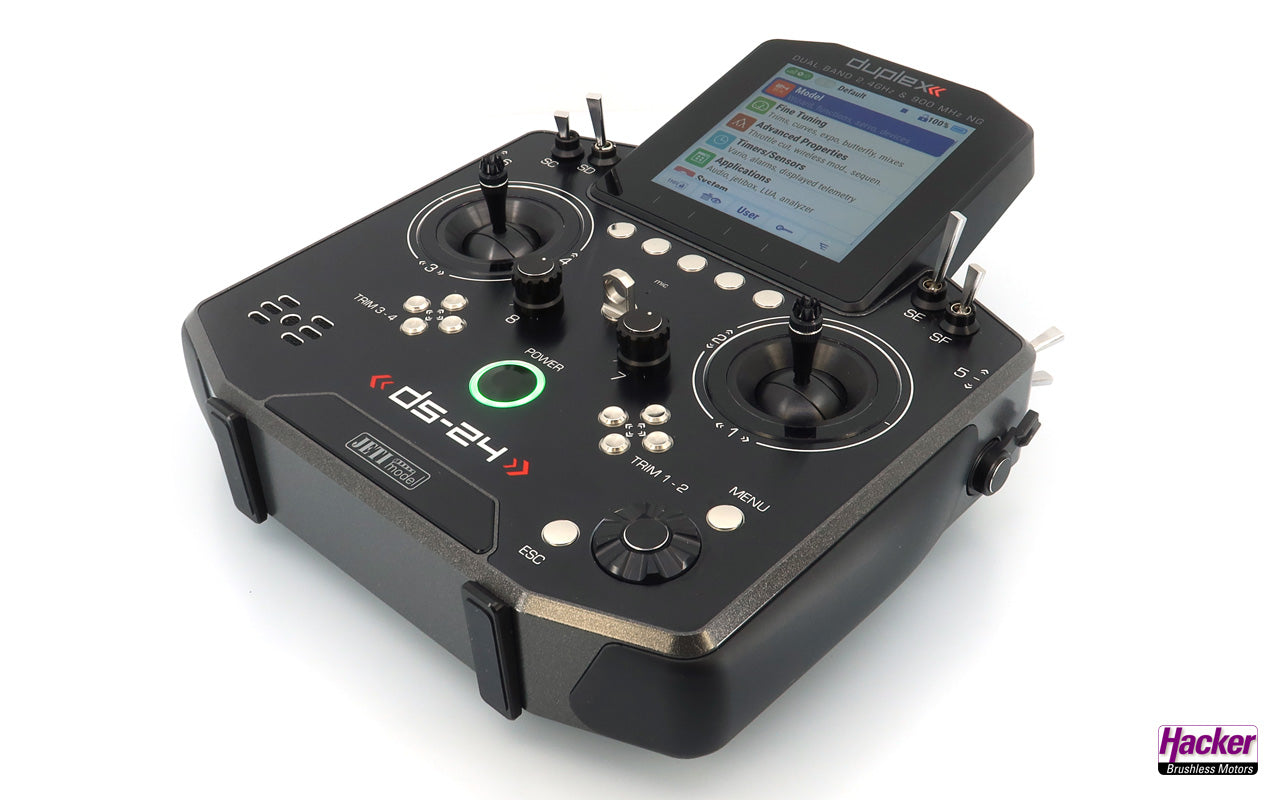

Handheld Transmitter DS-24 II Gray painted, Hacker # 80001894

Description

The latest generation of the DS-24 transmitter has been fundamentally improved and its range of functions extended. The timeless design has been further revised and the weight of the aluminum housing reduced. This has significantly improved wearing comfort and ergonomics.
In addition to the existing support for Bluetooth headsets, a smartphone app (Android/iOS) has been added, which can display telemetry data via Bluetooth on the smartphone. The DS-24 II features new stick units, which can now be fully adjusted externally, including mode change.

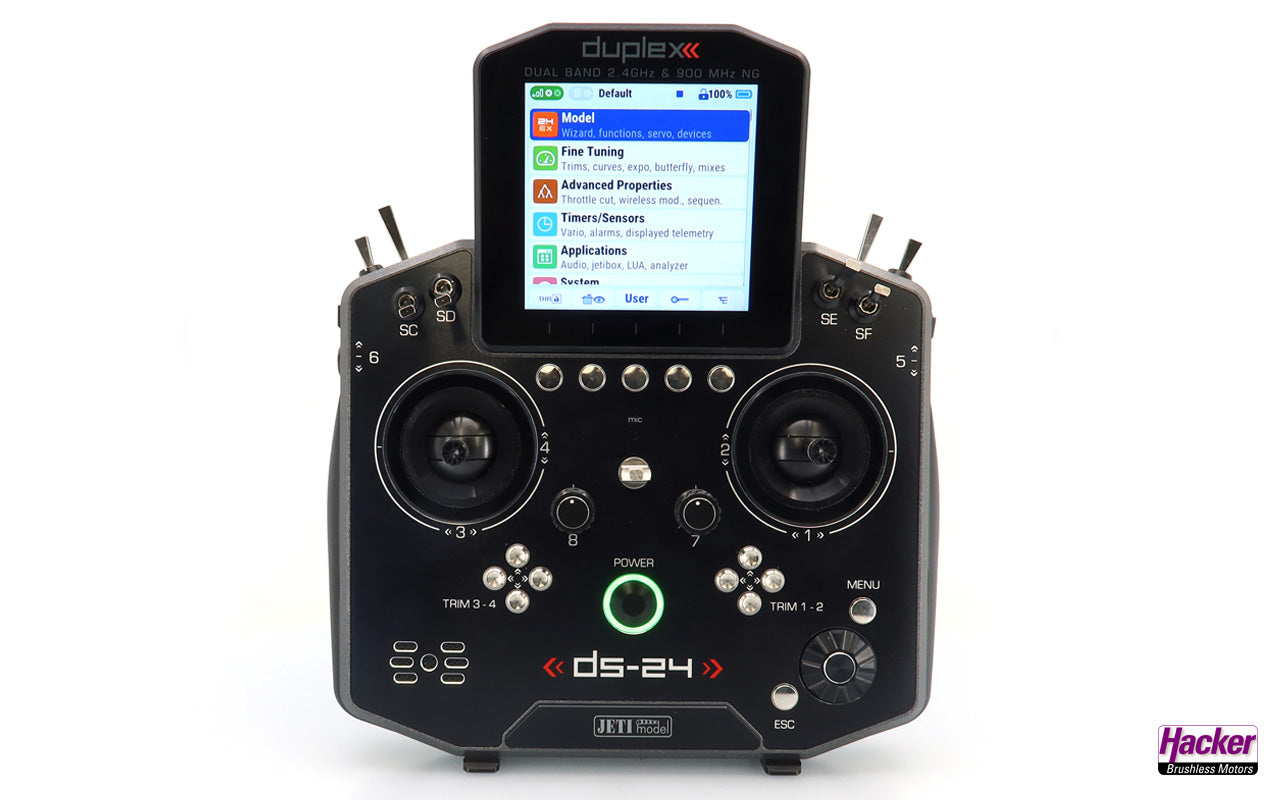

The new 4-inch color display offers higher resolution and stronger contrast, and significantly simplifies operation in conjunction with the newly designed menu.

Scope of delivery

Handheld transmitter DS-24 II Gray painted (delivery state Mode 2, control mode very easily changeable), REX12 Assist receiver with accessories, aluminum case, built-in transmitter battery, charger for transmitter battery, USB-C charging cable, transmitter strap, DUPLEX pad, cleaning cloth, assembly tools, instruction manual

Features

• New stick units, fully externally adjustable
• Side sliders can be reoriented
• Switch changes significantly simplified
• Rotary encoders P7+8 can be replaced by switches
• New ergonomics of the housing back
• 4-inch LCD color display with high contrast
• Bluetooth support for headphones
• Bluetooth telemetry transmission to smartphones
• Online updates via WiFi (available later)
• Android/iOS app for telemetry display
• 900 MHz NG backup system
• New menu structure design
• Reduced weight
• One connection for PPM and headphones
• USB-C socket (charging function, data connection PC/Mac)
• Full compatibility with the DUPLEX system and older JETI transmitters
• Vibration alarm on the left/right control sticks, 3 levels
• New color variants

900 MHz NG Backup System

This is an independent, second transmission system in a second frequency range. If this system is used, the model can still be controlled even if the 2.4Ghz band is disturbed (e.g., by directional radio, for television broadcasts during drone flights, etc.). The 900Mhz NG backup system only becomes active if this occurs. This significantly enhances safety for high-quality models. Of course, this backup system can be activated or deactivated separately for each model. It is always used together with the 2.4Ghz transmission system, not individually.

Transmitter Hardware

• Multimode control sticks externally adjustable
• Stick position determination by Hall sensors (without potentiometers)
• Control path resolution 4096 steps
• 4-inch 480x480 color display, backlit
• Rotatable stick units
• Full aluminum control sticks/units, length adjustable, ball bearing
• Internal memory
• Integrated antennas
• Integrated Li-Ion battery for long operating time
• Charger and USB-C charging cable
• Aluminum transport case
• Integrated speaker
• Bluetooth and WiFi module
• USB-C socket
• Headphone and PPM socket
• Digital trims
• Painted aluminum housing

Transmitter Software

• 2.4 GHz DUPLEX EX
• 24 control channels
• Customizable menu navigation
• Virtually unlimited setting options
• Virtually unlimited number of model memories
• Firmware update via USB and WiFi (available later)
• Ultra-fast control responses
• Power management system for longer operating time
• Bluetooth connection to smartphone app and headphones
• 4 adjustable model types (aircraft/heli/functional model; multicopter)
• 8 languages (EN / DE / CZ / FR / IT / PT / SE)

Telemetry Functions

• Voice output of telemetry warnings and telemetry values
• Display of telemetry data in real time on the transmitter display and smartphone app
• Recording of telemetry data
• PC/Mac transfer, storage and editing of telemetry values
• Saving (backup) of model data and transmitter settings on PC/Mac

Technical Data

• Dimensions [mm] 230 x 270 x 40
• Weight [g] ~1275
