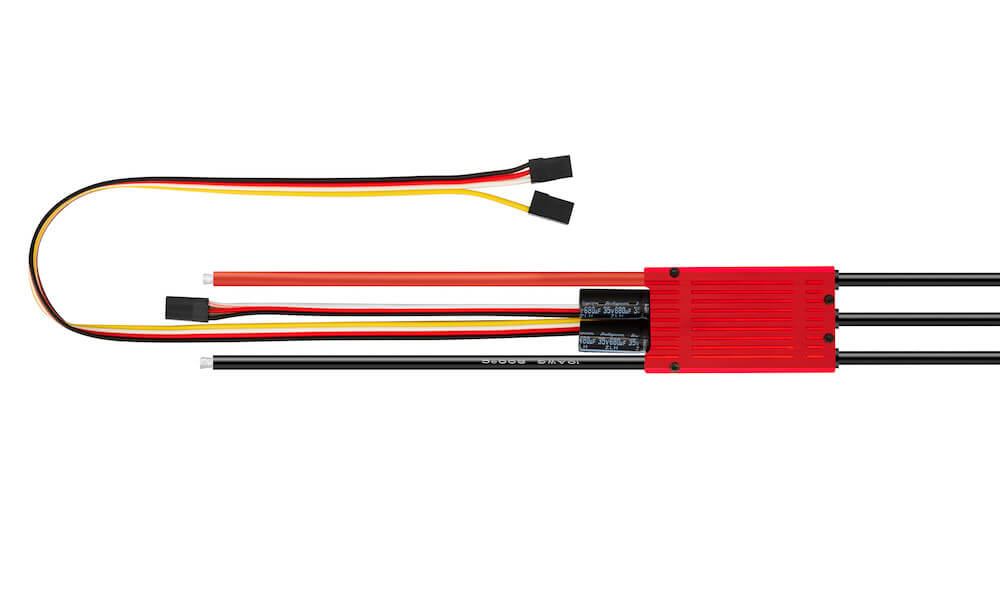

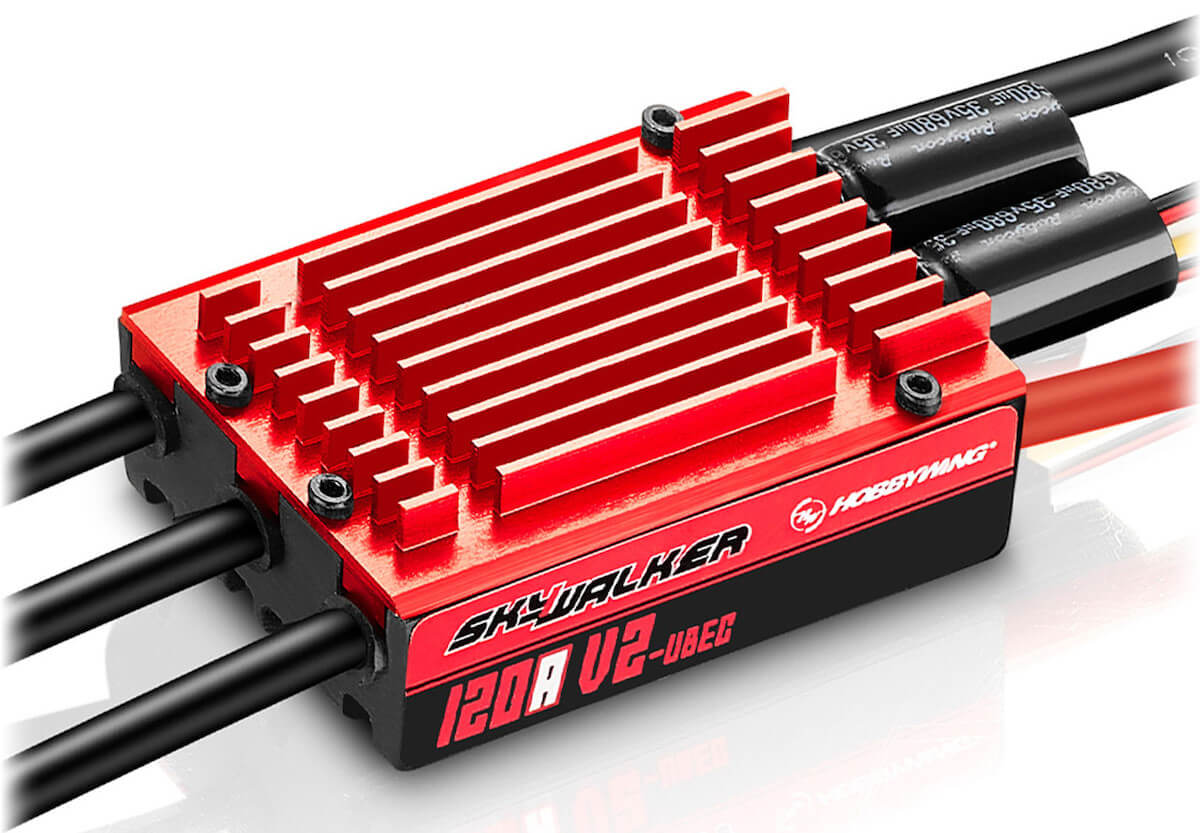

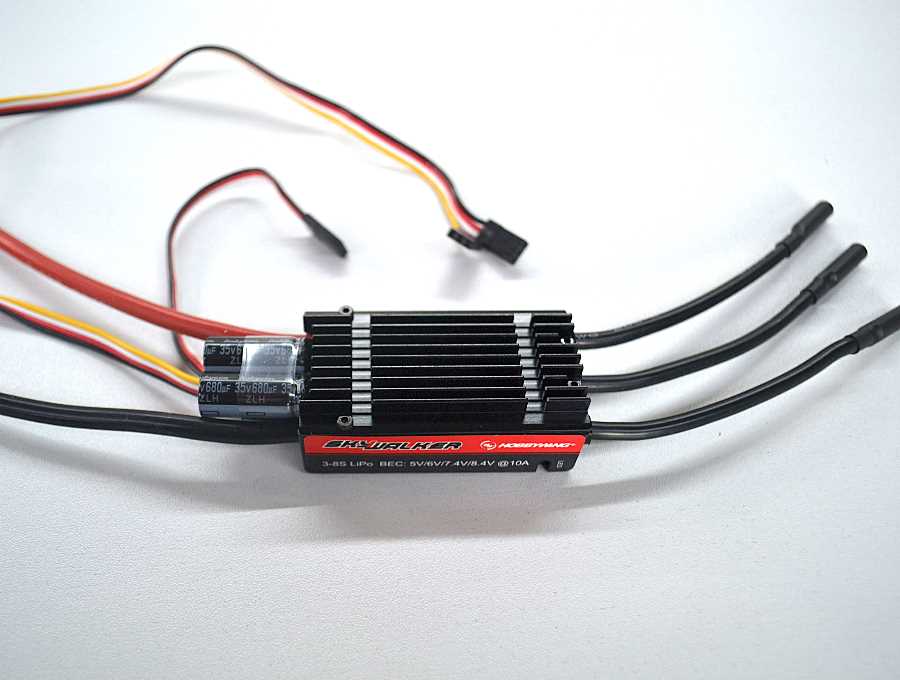

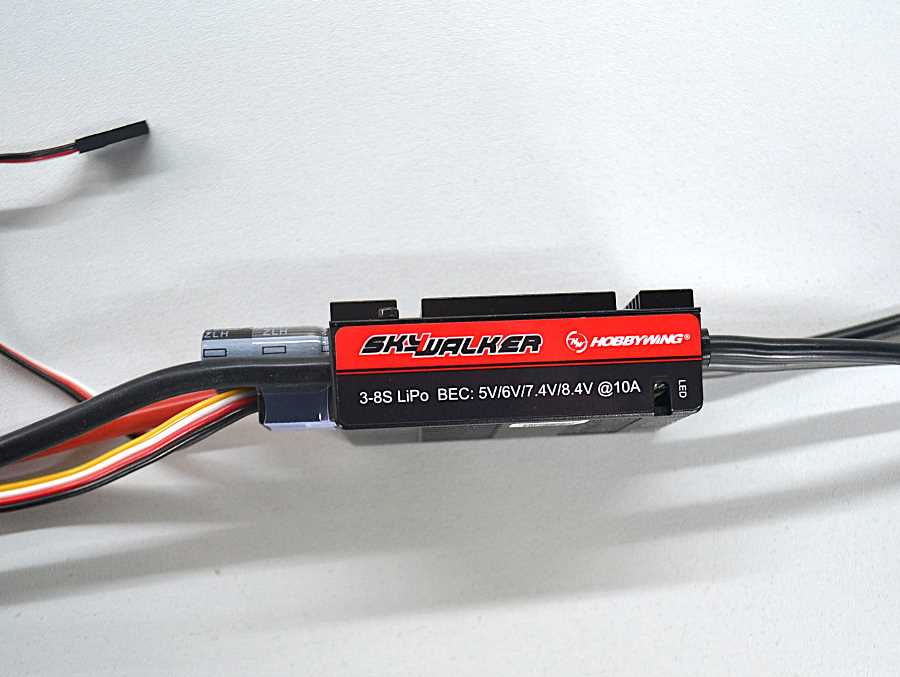

Skywalker Brushless ESC 120A V2, 3-8S LiPo, 10/30A SBEC, # HW30205450

The Skywalker V2 series is the perfect choice for equipping ARF or RTF models with an easy-to-program ESC and the best possible performance. These ESCs are designed exclusively for controlling brushless motors. LiPo, NiCd, or NiMH batteries can be used, with automatic cell count detection.

Thanks to the use of high-quality SMD components, the internal resistance of the ESCs is particularly low. Due to the high clock frequency, Skywalker V2 ESCs offer high-resolution and sensitive control behavior. All ESCs feature temperature and overcurrent protection. And of course, the entire series is equipped with an effective start-up protection, in case the throttle stick on the transmitter is not in the neutral position when switching on.

With the LED Program Card (not included), the following parameters can be set on the ESC:

• Brake on / off / reverse / linear
• BEC voltage: 5V/6V/7.4V/8.4V
• Battery type (LiPo / NiMH / NiCd)
• Cutoff behavior (soft / full off)
• Cutoff voltage for LiPo (2.85V / 3.15V / 3.3V)
• Cutoff voltage for NiMH/NiCd (off / 50% / 65%)
• Start-up behavior (normal / soft / ultra slow)
• Timing (3.75° / 15° / 26.25°)

Overall, the Skywalker V2 series impresses with its simple handling and high reliability in practice. The high-quality, flexible silicone cables underline the high quality.

Features:

• Particularly low internal resistance
• High clock frequency PWM
• Dynamic brake for folding propellers
• Temperature protection
• Overcurrent protection
• Start-up safety system with power-up protection
• Easy programming with program card
• Soft start with low torque to protect a gearbox
• Motor cut-off in case of missing transmitter signal or radio interference
• High-quality silicone connection cables
• High reliability
