IBEX 115A HV eXtra Cooling BL BEC Controller with Telem., 115A, 2-12S, 88x32x14mm 95g
As of April 2026 · Prices incl. VAT unless stated otherwise.
-
Delivery time Germany: 1-3 business days.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
IBEX 115A HV eXtra Cooling BL BEC Controller with Telem., 115A, 2-12S, 88x32x14mm 95g

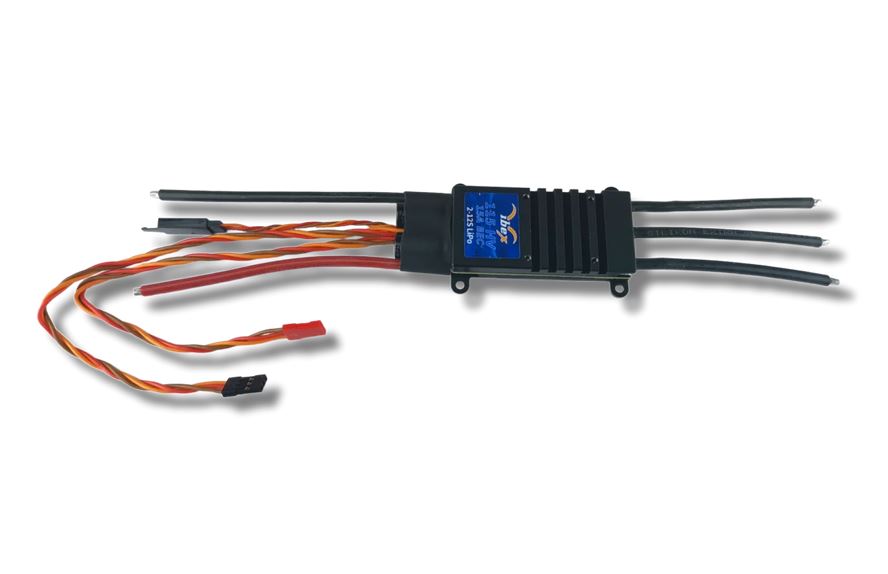

IBEX 115A HV eXtra cooling brushless BEC controller with telemetry
115A, 2-12S, 88x32x14mm, 95g
With the IBEX product line, Hepf Modellbau presents advanced speed controllers for sensorless brushless motors, exclusively for use in RC aircraft models. With integrated telemetry and various options for user configuration, the controllers offer high efficiency, low weight, and precise motor control.
Features:
- compact dimensions combined with powerful motor control
- high-performance BEC offers 15 A continuous current (max. 30 A)
- BEC overcurrent and overtemperature protection included
- BEC voltage adjustment in 0.1 V increments
- overvoltage and undervoltage protection, overtemperature protection, motor blocking protection
- configurable current limit
- safety shutdown in case of throttle signal loss
- configurable acceleration, timing, electromagnetic brake, etc.
- low noise through high-frequency switching
- reverse function available when operating with Jeti Duplex System
- automatic telemetry detection: Duplex EX, Hott, MSB, S.Bus2, Powerbox
- alternative firmware with Spektrum SRXL2 telemetry support
- telemetry (depending on the RC system): voltage, current, power, capacity, temperature, RPM, energy (watts), status
- recording of minimum and maximum telemetry values
- propeller positioning using optional Hall sensor
- detection of motor parameters via temperature sensor (with some Hemotec motors)
- configuration via the transmitter (Jeti/Graupner, Spektrum) or an external terminal (JETIBOX/SMART-BOX)
- firmware updates with USB interface
- languages: CZ/DE/EN/FR/IT
External connections for:
- propeller positioning
- motor temperature
- motor ID (motor parameters for controller)
- RPM out
- controller active (configurable)
Telemetry values (vary depending on the transmission system):
- current
- voltage
- capacity
- RPM
- power
- temperature
- motor temperature (if connected to IN A)
- status
Supported telemetry protocols:
- Jeti
- Graupner
- Futaba S-Bus 2
- Multiplex
- FrSky
- others
