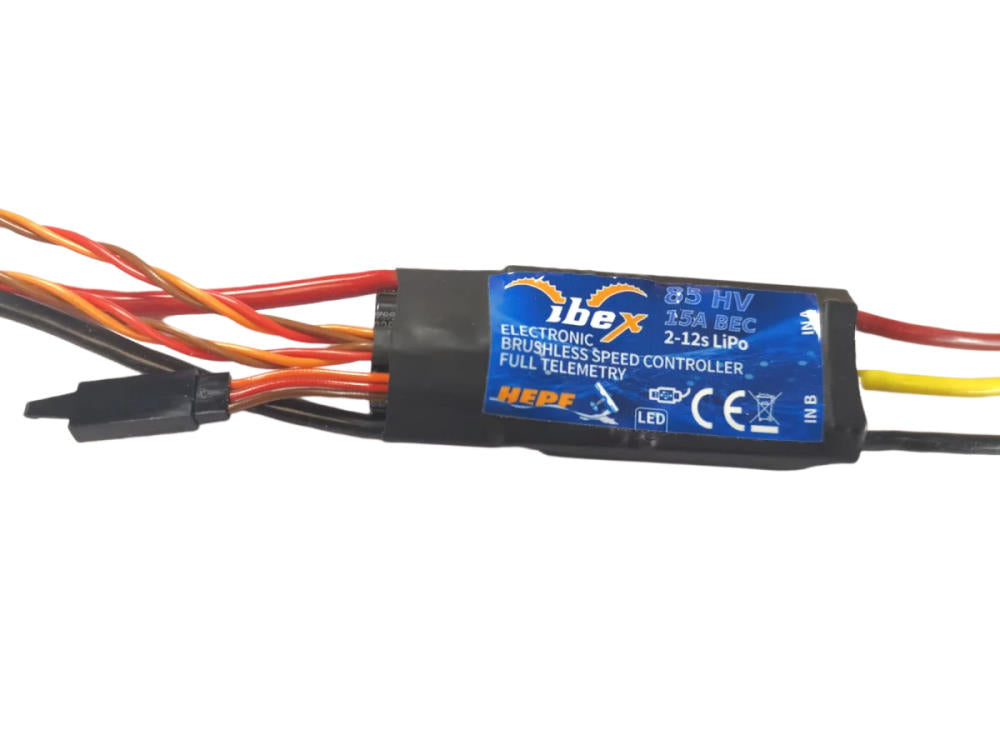

IBEX 85 HV Brushless ESC with Telemetry, 15A BEC, 85A, 2-12S, 80x30x14mm, 81g
IBEX 85 HV brushless ESC with telemetry, 15A BEC, 85A, 2-12S, 80x30x14mm, 81g
With the IBEX product line, Hepf Modellbau presents advanced speed controllers for sensorless brushless motors, exclusively for use in RC aircraft models. With integrated telemetry and various options for user configuration, these controllers offer high efficiency, low weight, and precise motor control.
Features:
- Small dimensions combined with powerful motor control.
- 85 Amps only for glider-typical short-term operation!
- High-performance BEC provides 15 A continuous current (max. 30 A peak)
- BEC overcurrent and overtemperature protection included
- BEC voltage adjustment in 0.1V steps
- Over- and undervoltage protection, overtemperature protection, motor blocking protection.
- Configurable current limit
- Optically isolated throttle input
- Safety shutdown in case of loss of throttle signal.
- Configurable acceleration, timing, electromagnetic brake, etc.
- Low noise due to high-frequency switching.
- Recording of minimum and maximum telemetry values.

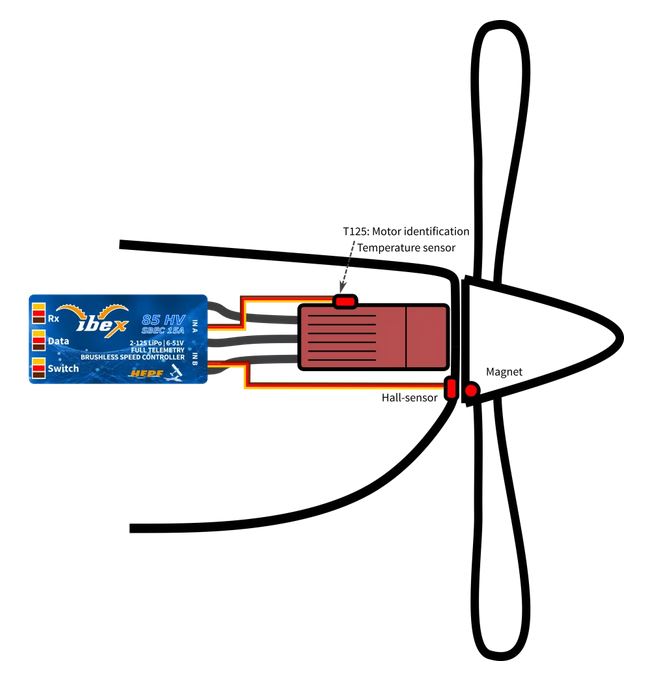

- Propeller positioning using optional Hall sensor

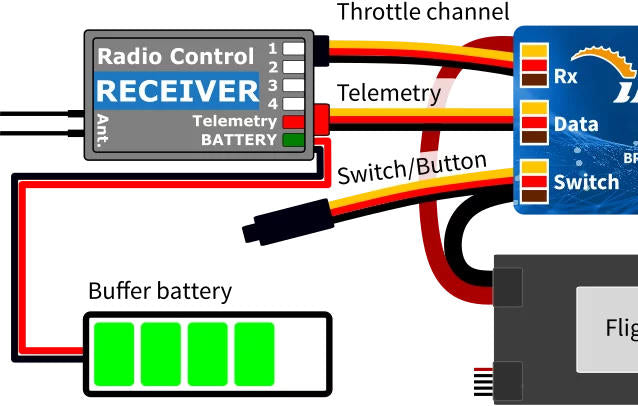

- Configuration via the transmitter (Jeti/Graupner) or an external terminal (JETIBOX/SMART-BOX).
- Firmware updates with USB interface.
- Languages: CZ/DE/EN/FR/IT.
External connections:
- for propeller positioning
- motor temperature
- motor ID (motor parameters for controller)
- RPM out
- controller active (configurable)
Telemetry values (vary depending on transmission system):
- Current
- Voltage
- Capacity
- RPM
- Power
- Temperature
- Motor temperature (if connected to IN A)
- Status
Supported telemetry protocols:
- Jeti
- Graupner
- Futaba S-Bus 2
- Multiplex MSB
