IDS Servo Frames for KST A12
Integrated Drive Systems, MONO, (IDS/LDS) for KST-A12-S/T with short pushrods

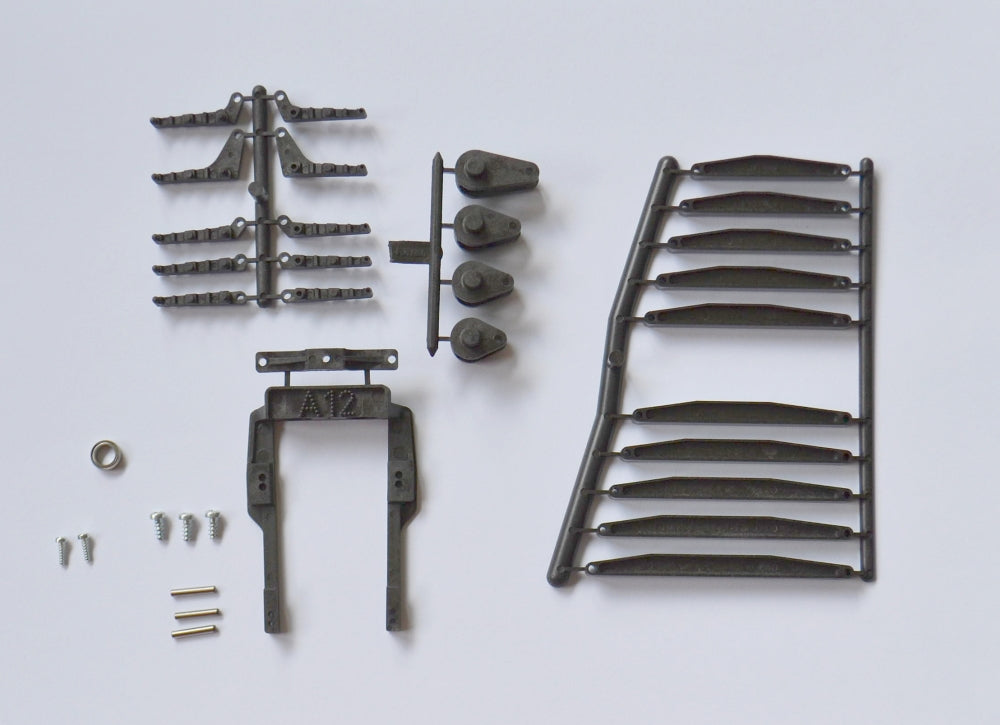

IDS System based on servo frame type KST-A12-S/T with bearing.
One-piece pushrod made of high-strength, carbon fiber reinforced plastic.
The IDS is supplied with pushrods in various lengths, making the system suitable for use in almost any model.
The set includes 4 IDS servo arms of different lengths, so the IDS can be used on both the aileron and the flap.
The IDS systems can be used equally for "left" and "right".
Clevis set, effective arm lengths: 6 mm, 8 mm, 10 mm, 14 mm
IDS pushrod SHORT, effective lengths: 41 mm, 44 mm, 47 mm, 50 mm, 53 mm, 56 mm, 59 mm, 62 mm, 65 mm, 68 mm
Cross-section: 6 x 6 mm
Technical data:
Servo frame dimensions: 45 x 63 x 13 millimeters
The following servos can be used with "IDS Type KST-A12":
A-12 Torque
A-12 Speed
