IDS Servo frames for the KST X08H
Integrated Drive Systems, MONO, (IDS/LDS) for KST X08/X08H with Pushrod "MICRO"
This IDS system is based on the KST 08 type servo frame with bearing. The one-piece pushrod is made of high-strength, carbon fiber reinforced plastic.
The IDS is supplied with pushrods in various lengths, making the system usable in any model.

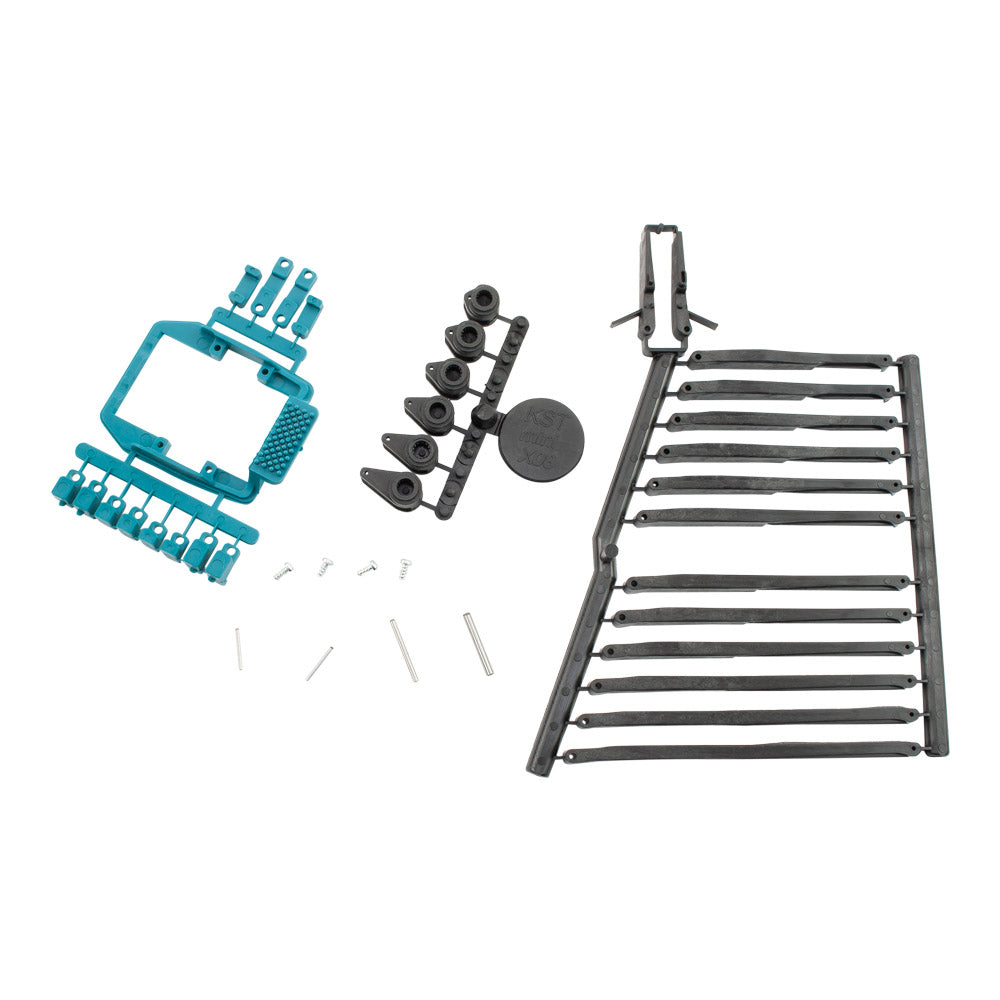

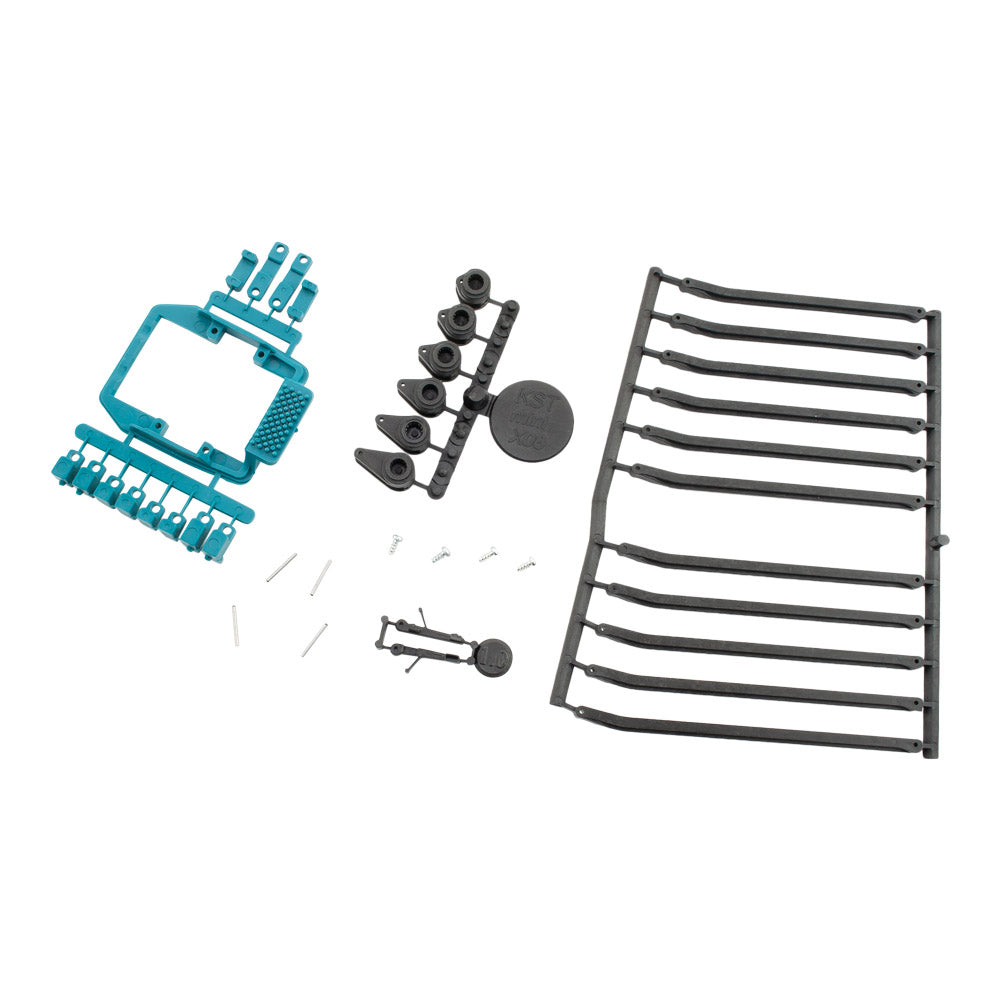

The set includes 6 IDS servo arms of different lengths, so the IDS can be used on both the aileron and the flap. The IDS systems can also be used for "left" and "right".
Clevis set, effective lever lengths: 3.5 mm, 4.5 mm, 5.5 mm, 7 mm, 8.5 mm, 10 mm
IDS Pushrod Micro, effective lengths: 45 mm, 48 mm, 50 mm, 53 mm, 55 mm, 58 mm
Cross-section: 4 x 3.5 mm
Technical data:
Servo frame dimensions: 50 x 37 x 9 millimeters
The following servos can be used with "IDS Type KST 08":
- KST X08 (Plus), KST X08H (Plus)
- KST A08, KST A08H
- KST HS08-A, KST HS08-B
- KST DS245, KST DS245H
