IDS Servo Frames for the MKS 747

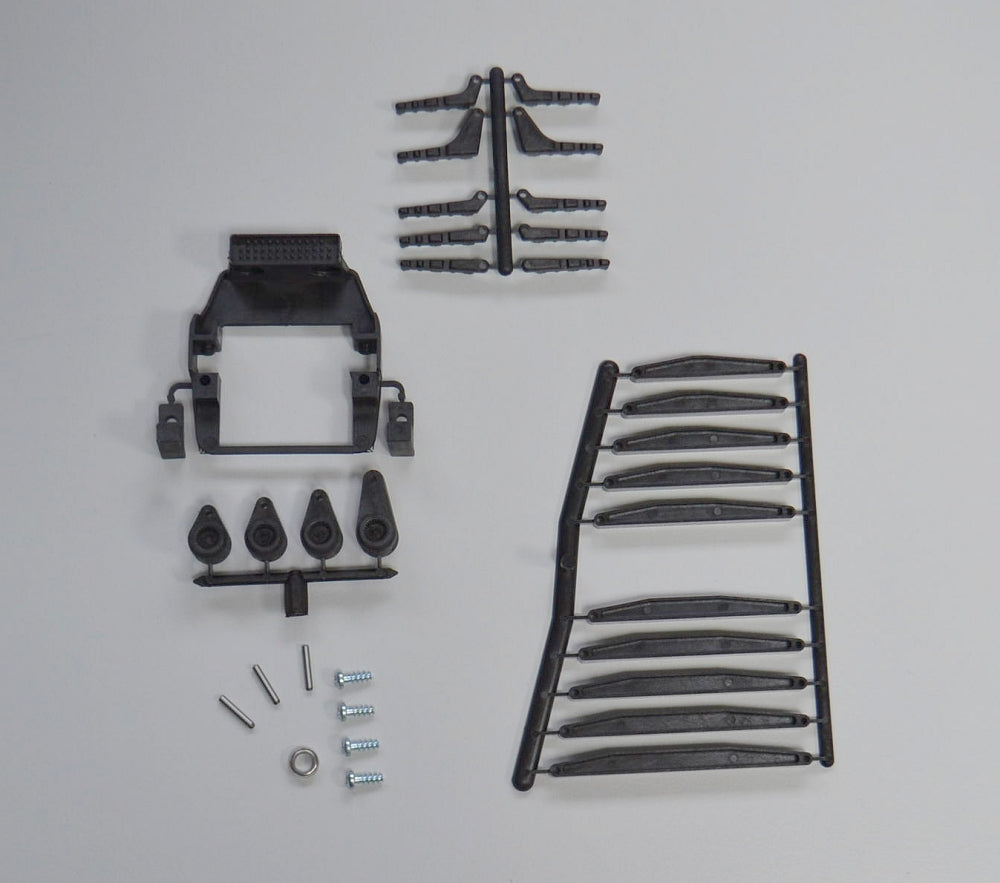

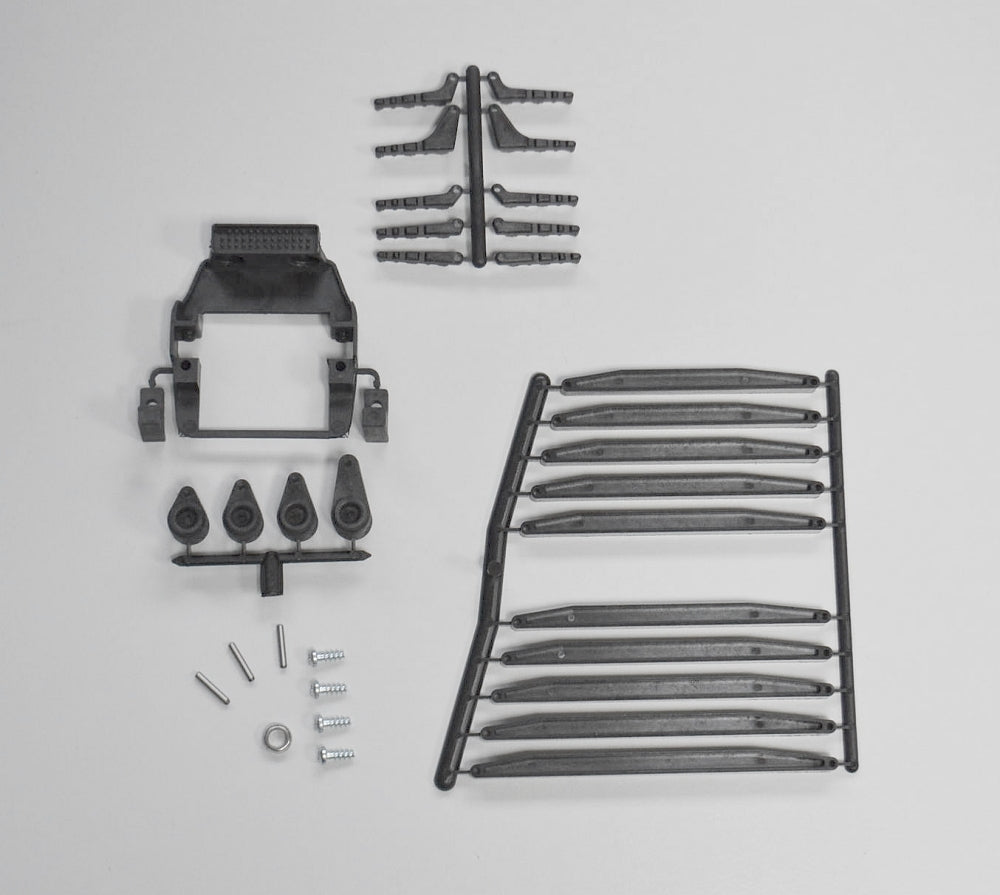

Integrated Drive System, MONO, short pushrod, (IDS/LDS), MKS 747, Pair (for 2 servos)
IDS System based on MKS 747 bearing servo frame type.
One-piece pushrod made of high-strength, carbon fiber reinforced plastic.
IDS Maxi pushrod.
The IDS comes with a selection of pushrods, making the system suitable for many models.
The set includes 4 IDS servo arms of different lengths, so the IDS can be installed on both the aileron and the flap.
The IDS systems can be used equally for "left" and "right".
Technical data:
Dimensions servo frame: 59 x 52 x 15 millimeters
IDS pushrod SHORT, effective lengths: 39 mm, 42 mm, 45 mm, 48 mm, 51 mm, 54 mm, 57 mm, 60 mm, 63 mm, 67 mm.
Cross-section: 5.8 x 6.4 mm.
Rudder horn width 36 mm.
Clevis set, effective lever lengths: 8 mm, 9 mm, 11 mm, 15 mm
the following servos can be used with "IDS MKS 747 Mono":
- MKS HV 747, HV 737
- Jeti J3D13T, J3D8.5T
- CHOCOmotion Fox HV 15/15
- EMC-Vega KMST XV 15-4411
Scope of delivery: 1 pair
