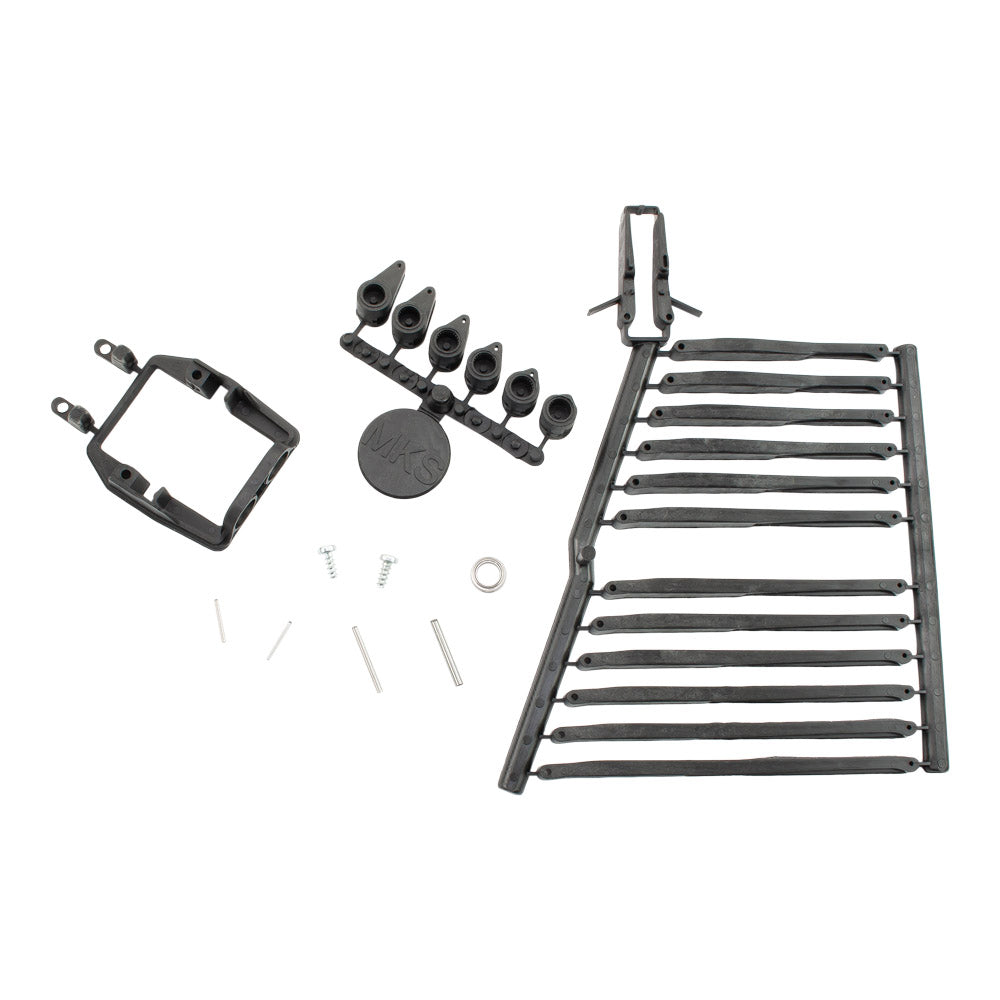

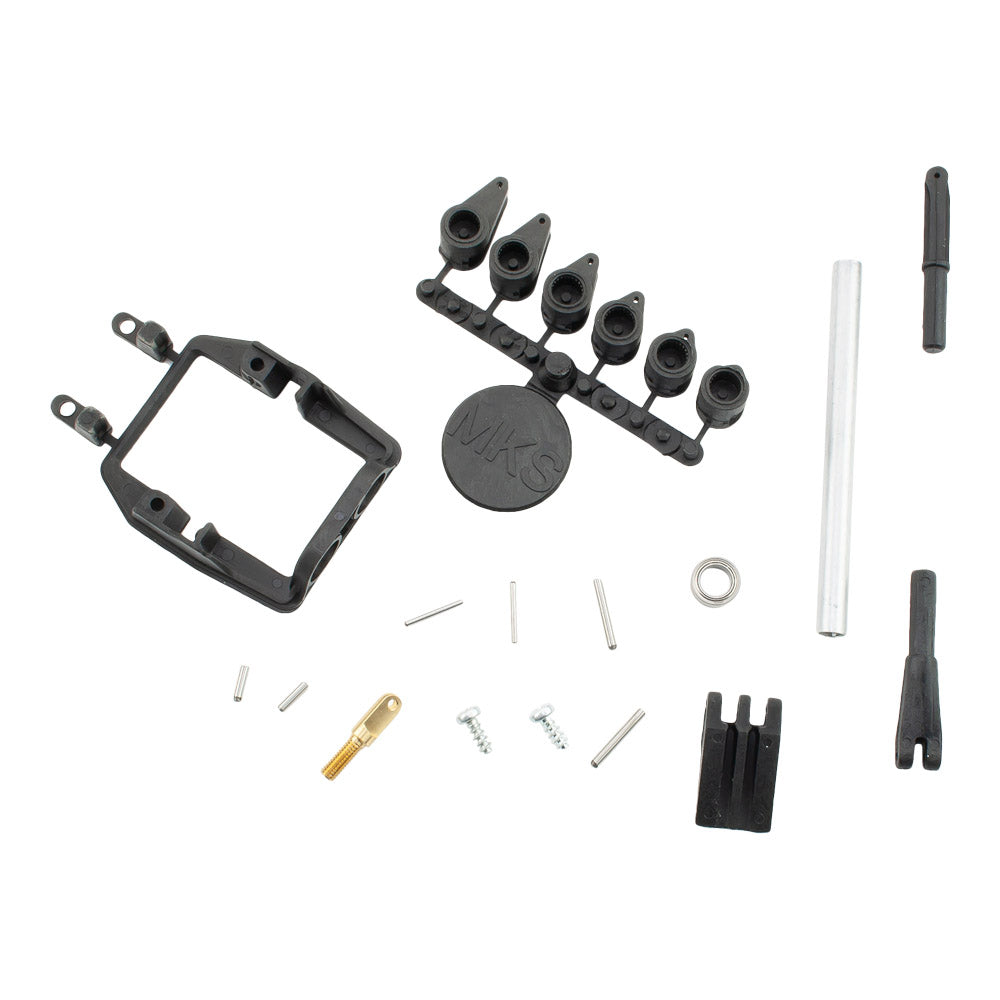

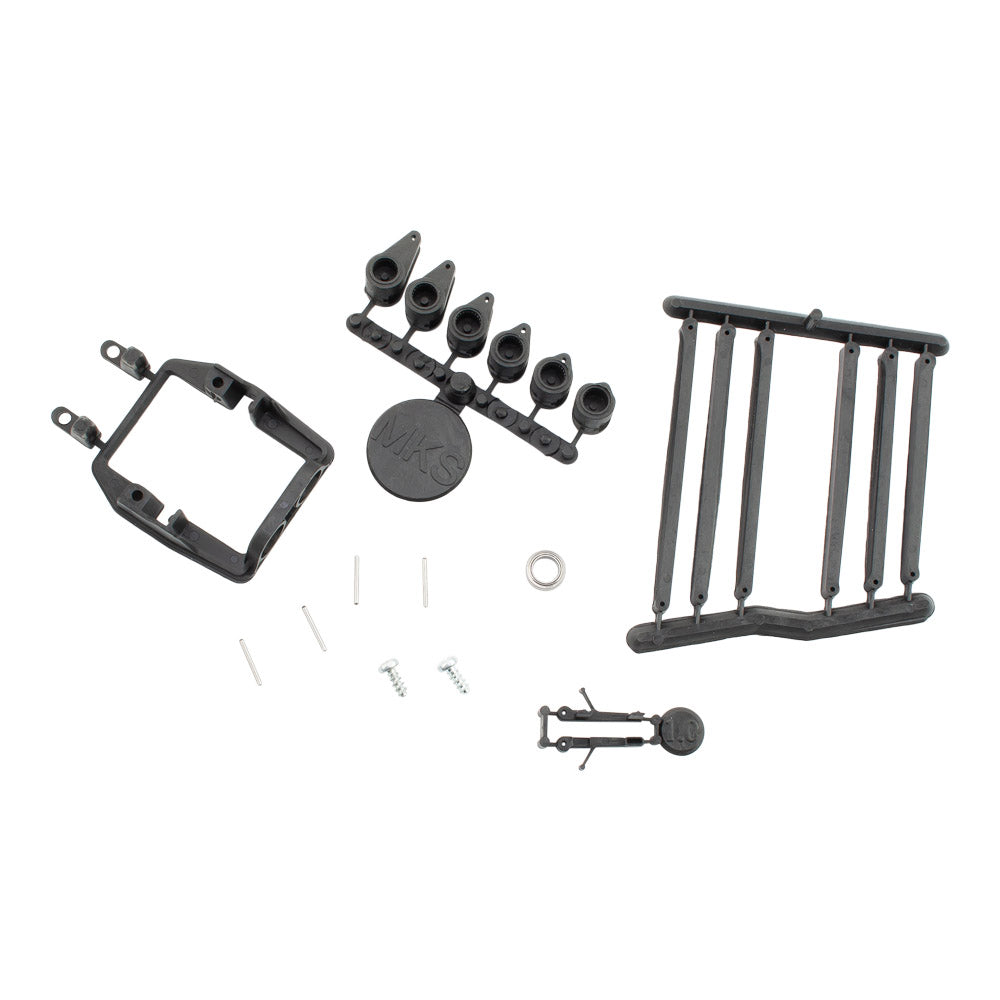

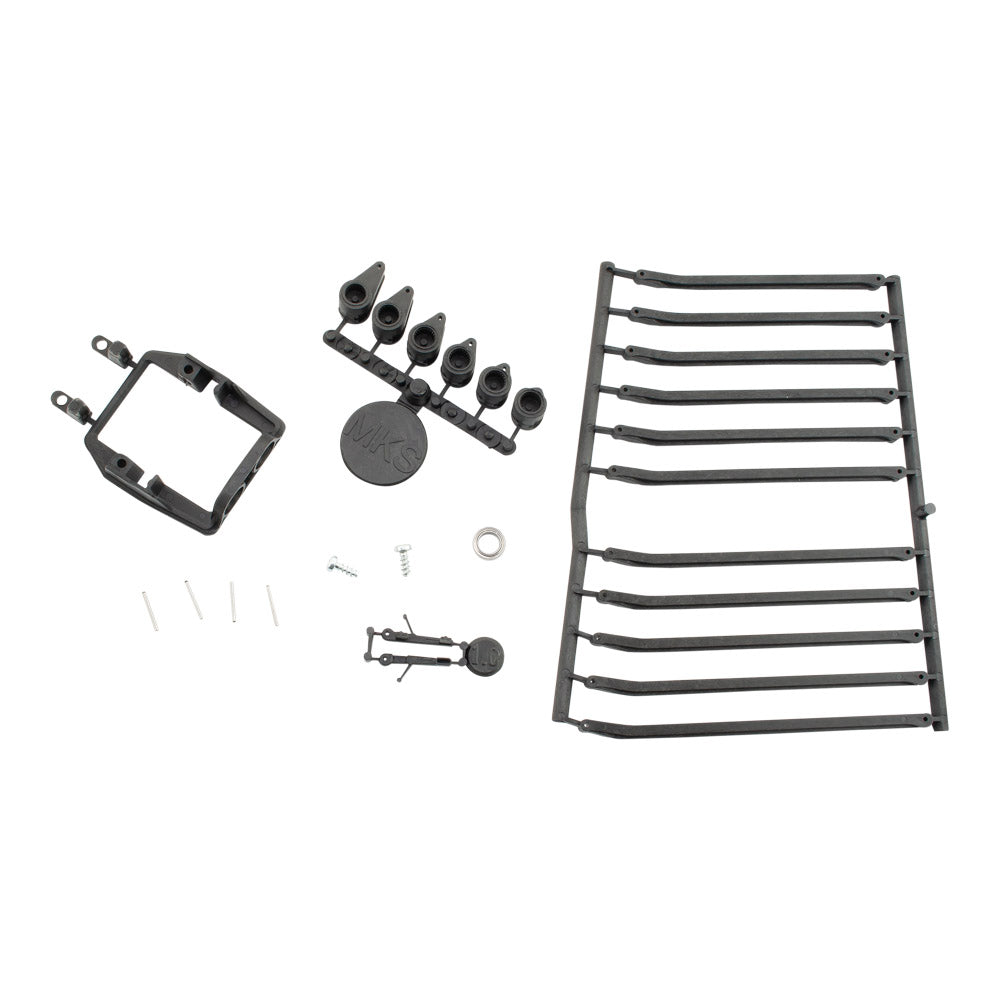

IDS Servo Frames for the MKS6100
Integrated Drive Systems for MKS DS 6100 Glider with MICRO pushrod
The IDS system is based on the MKS 6100 bearing servo frame type.
The one-piece pushrod is made of high-strength, carbon-fiber reinforced plastic.
The IDS is supplied with a selection of different length pushrods, allowing the system to be used in any model.
The set also includes 6 IDS servo arms of different lengths, so the IDS can be used on ailerons as well as flaps.
The IDS system can also be used for "left" and "right."
Clevis set, effective lever lengths: 3.5 mm, 4.5 mm, 5.5 mm, 7 mm, 8.5 mm, 10 mm
IDS Pushrod Micro, effective lengths: 45 mm, 48 mm, 50 mm, 53 mm, 55 mm, 58 mm
Cross-section: 4 x 3.5 mm
Technical data:
Servo frame dimensions: 40 x 36 x 10 millimeters
The following servos can be used with "IDS Type MKS 6100":
- MKS DS 6100 Glider, HV 6100, DS 450, DS 470, DS 480
