IDS Servo Frames for the MKS6110

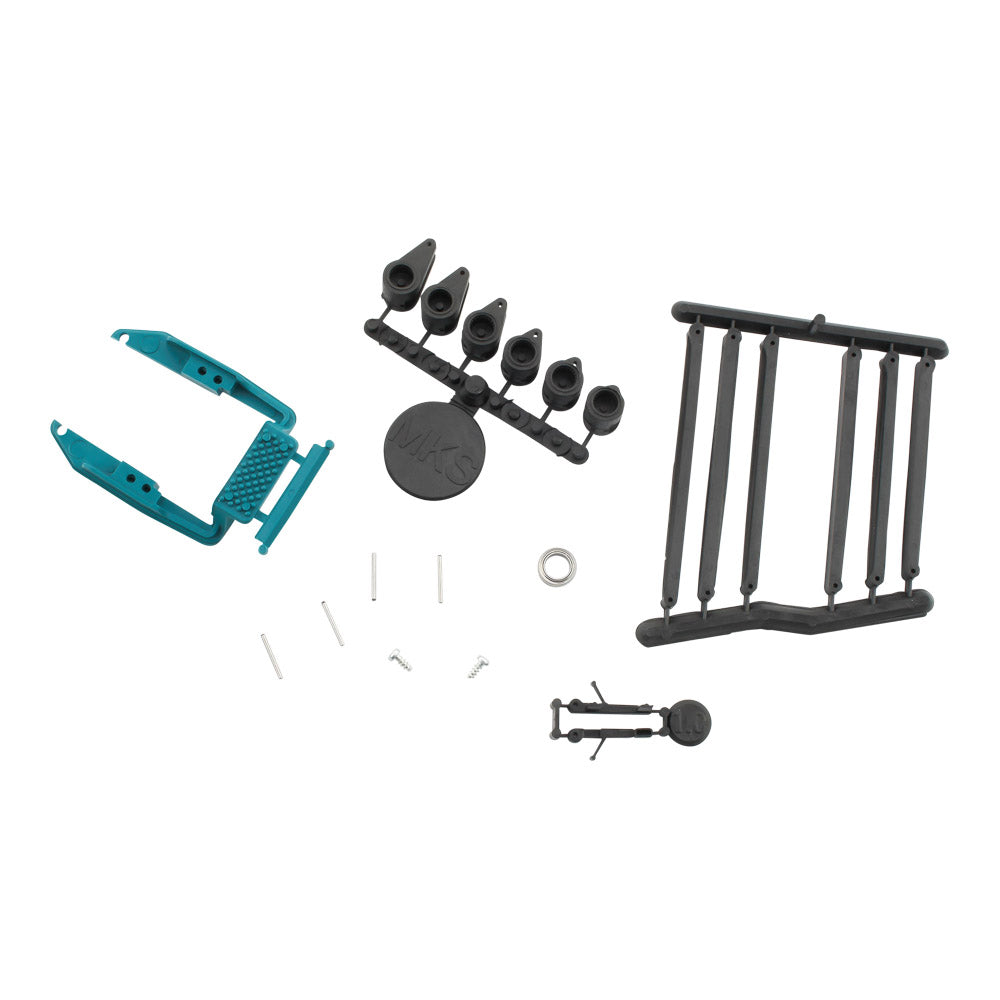

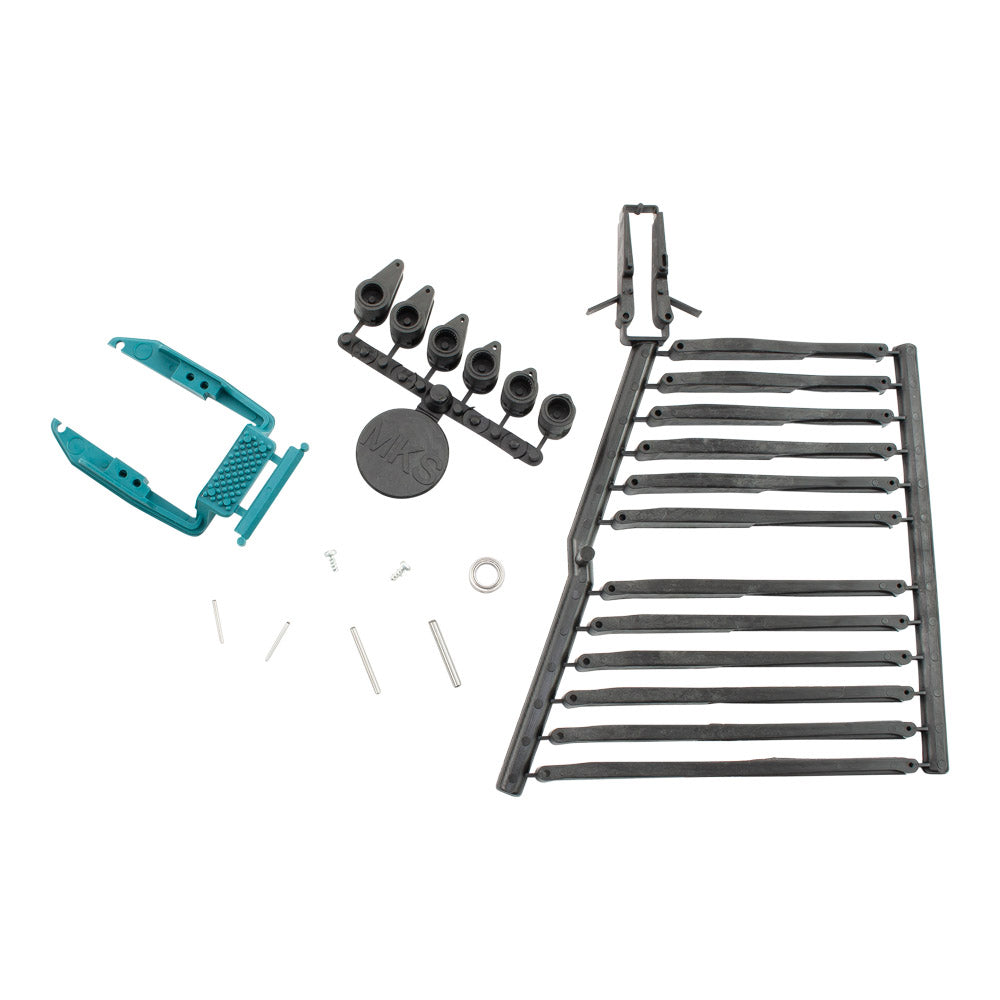

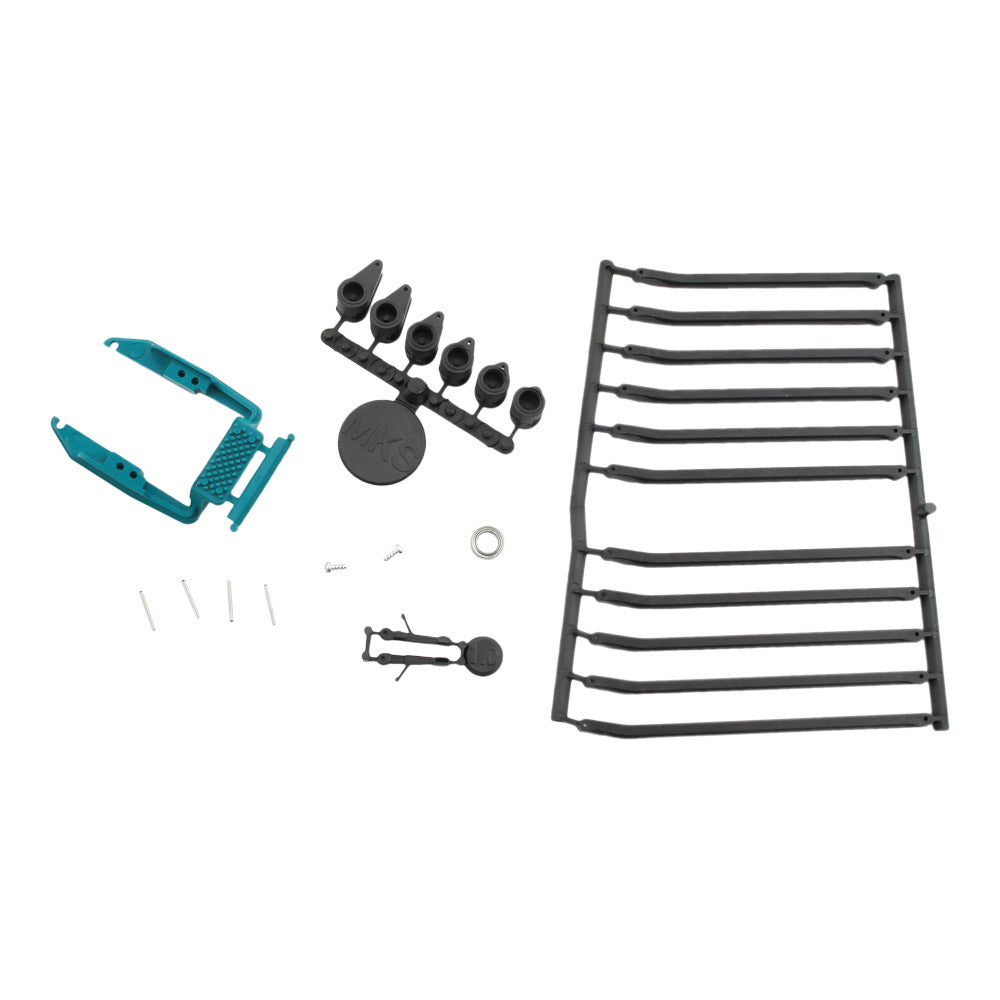

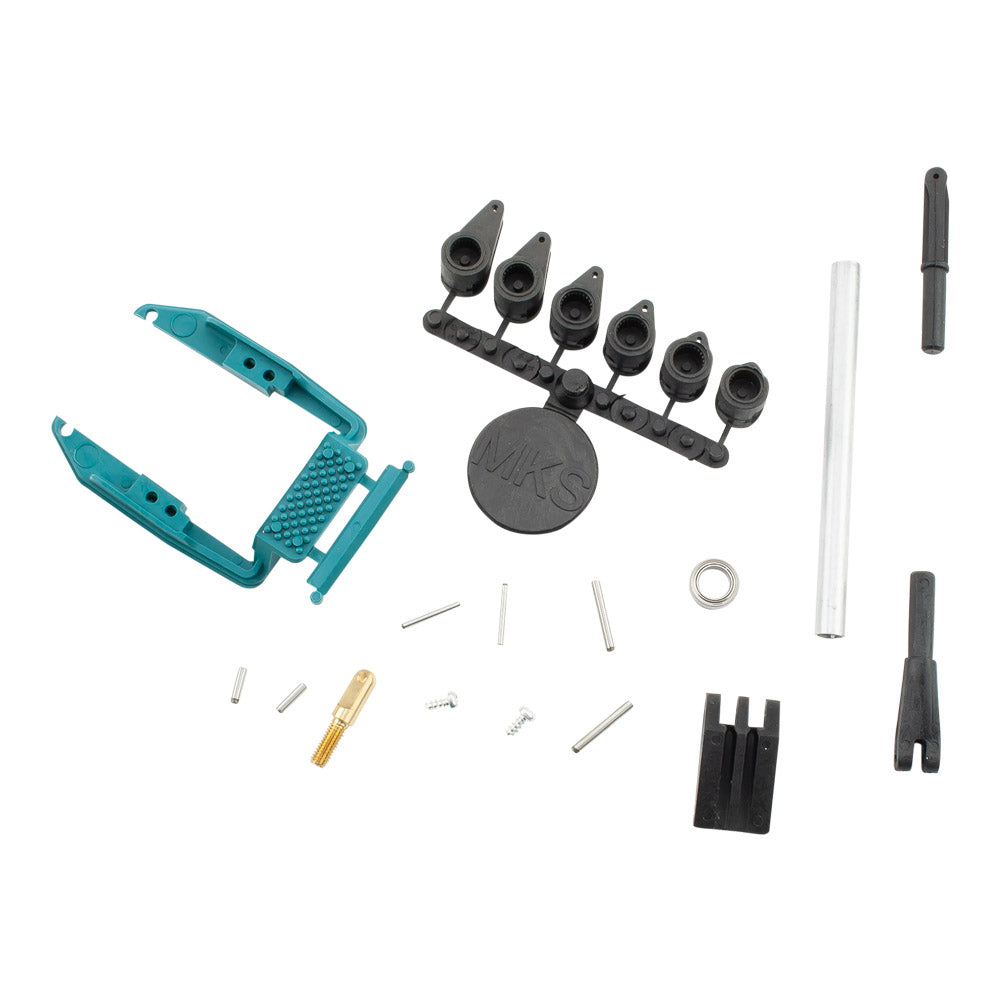

IDS for MKS HV6110 with MICRO Pushrods, Pair (for 2 Servos)
IDS system based on the MKS 6110 bearing servo frame type.
The one-piece pushrod is made of high-strength, carbon-fiber reinforced plastic.
The IDS is supplied with a selection of different length pushrods, making the system suitable for use in any model.
The set also includes 6 IDS servo arms of different lengths, so the IDS can be used on both the aileron and the flap.
The IDS system can also be used for "left" and "right".
Clevis set, effective lever lengths: 3.5 mm, 4.5 mm, 5.5 mm, 7 mm, 8.5 mm, 10 mm.
IDS Pushrod Micro:
effective lengths: 45 mm, 48 mm, 50 mm, 53 mm, 55 mm, 58 mm
Cross-section: 4 x 3.5 mm
Technical data:
Servo frame dimensions: 49 x 36 x 11 millimeters
The following servos can be used with "IDS Type MKS 6110":
MKS HV 6110
