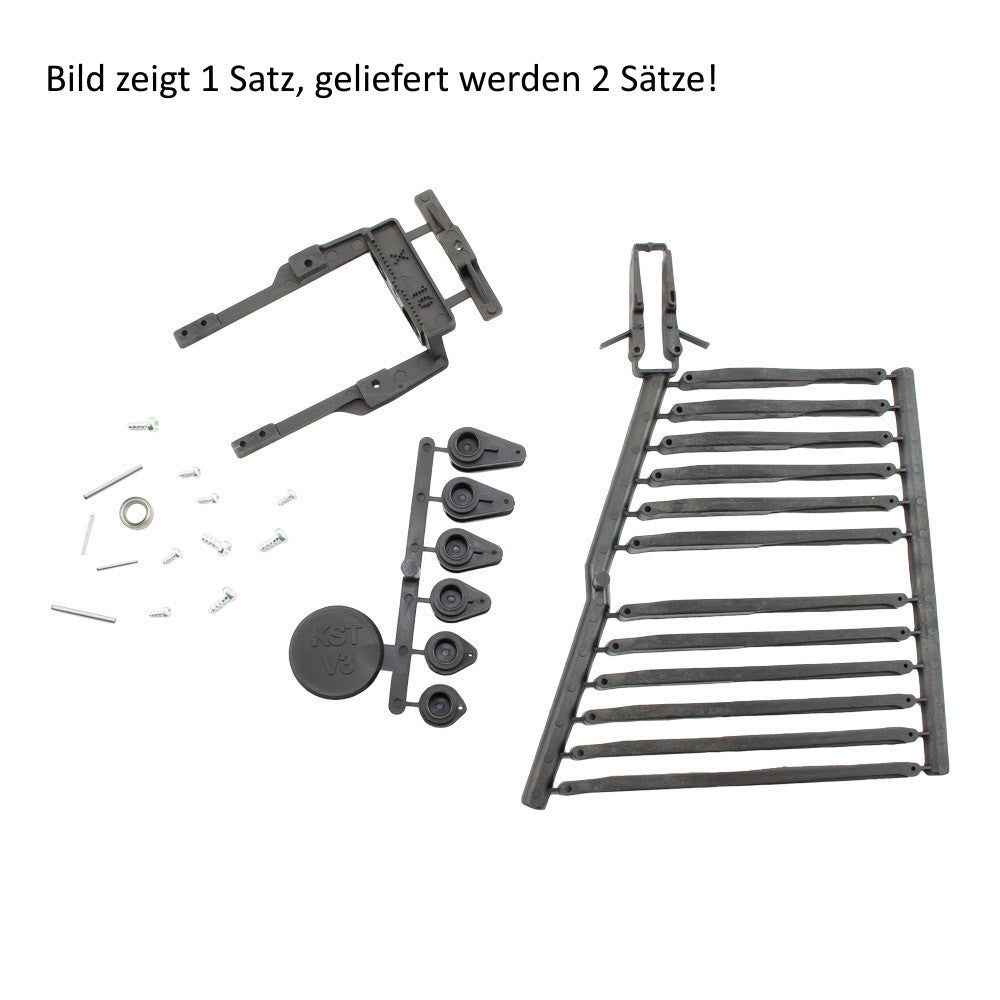

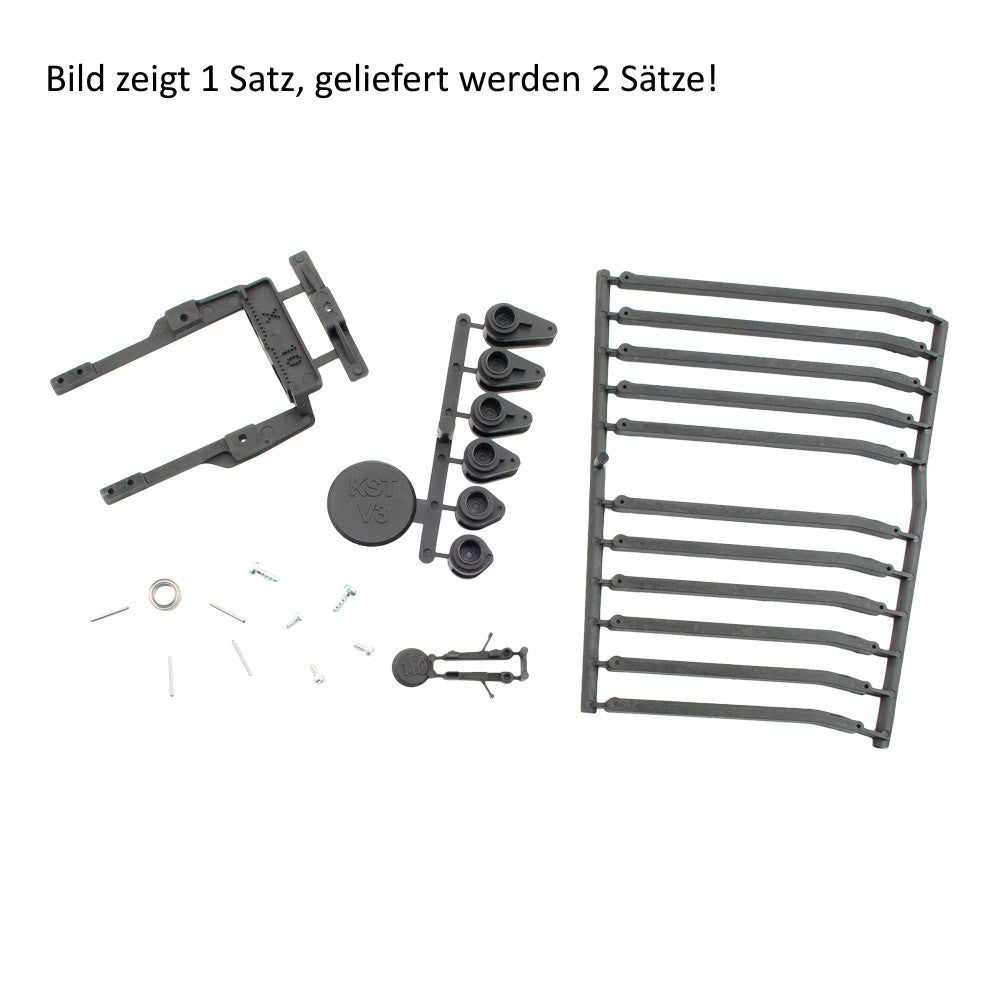

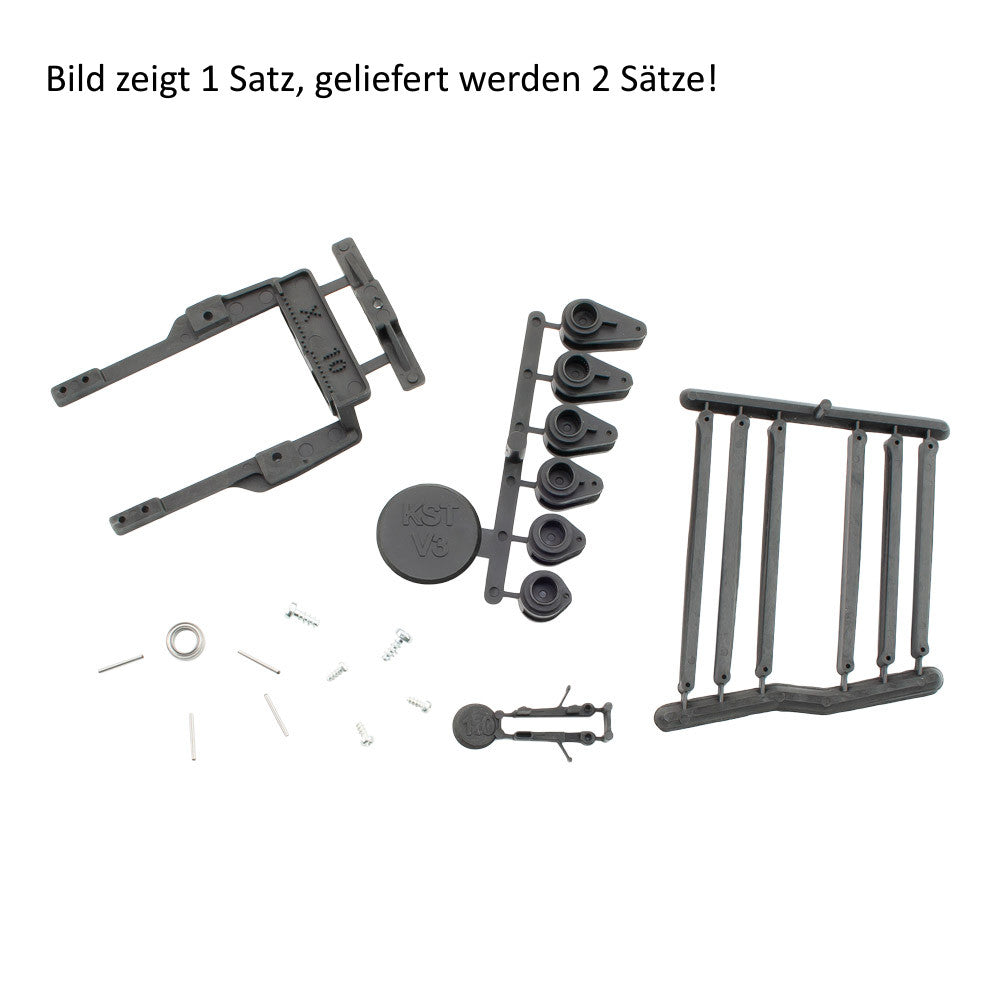

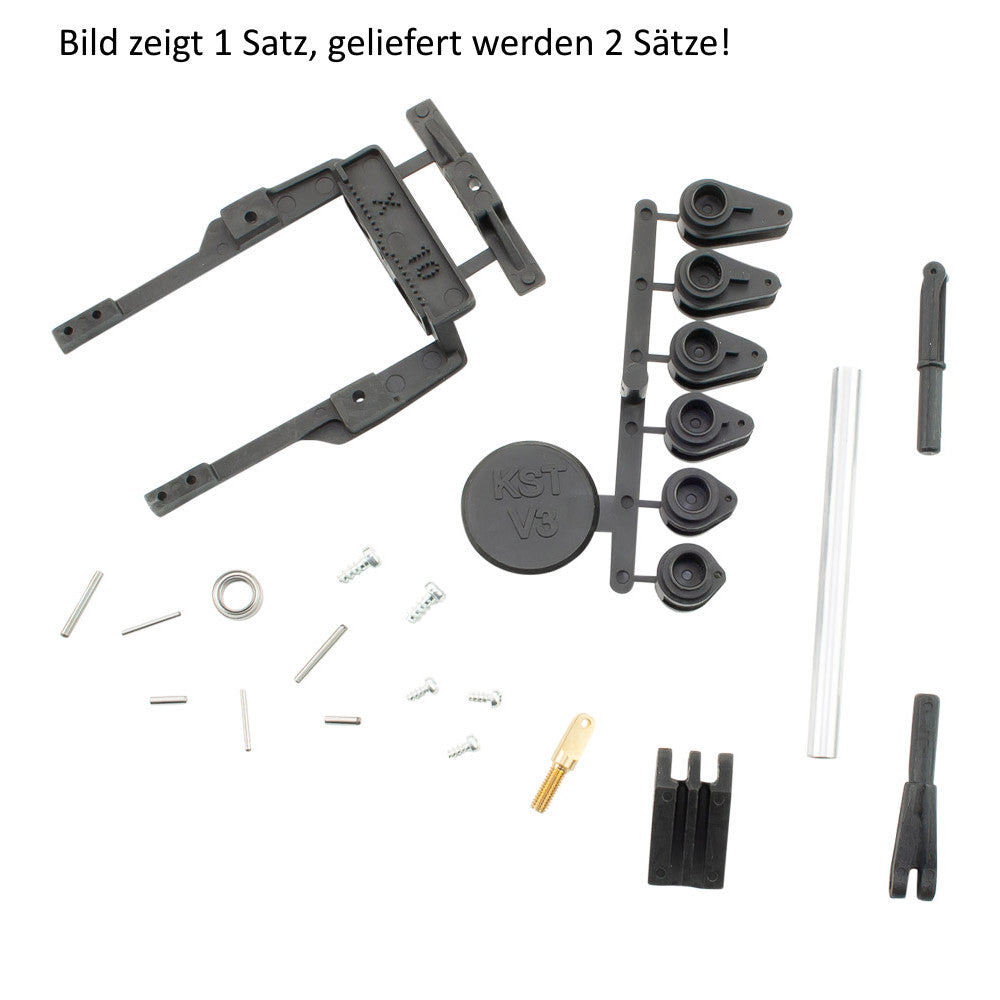

IDS servo frames for the X10 Pro
As of April 2026 · Prices incl. VAT unless stated otherwise.
-
Delivery time on request.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
IDS servo frames for the X10 Pro
IDS System with MICRO Pushrods for KST X10-PRO-A and KST X10-PRO-A Mini Servos
IDS System based on KST X10-PRO-A bearing servo frames.
One-piece pushrod made of high-strength, carbon fiber reinforced plastic.
The IDS is supplied with a selection of pushrods, meaning the system can be used in any model.
The set includes 6 IDS servo arms of different lengths, so the IDS can be used on both the aileron and the flap.
The IDS systems can be used for "left" and "right" applications alike.
Clevis set, effective lever lengths: 4.5 mm, 5.5 mm, 7.0 mm, 8.0 mm, 10.0 mm, 11.5 mm.
IDS Mirco Pushrod:
Effective lengths: 45 mm, 48 mm, 50 mm, 53 mm, 55 mm, 58 mm
Cross-section: 4 x 3.5 mm
Technical data:
Servo frame dimensions: 58 x 42 x 11 millimeters
