Integrated Drive Systems, MONO, (IDS/LDS)
for Savöx 0211MG, 1212MG, 1211MG

IDS System based on the Savöx bearing servo frame type.


One-piece pushrods made of high-strength, carbon fiber reinforced plastic.

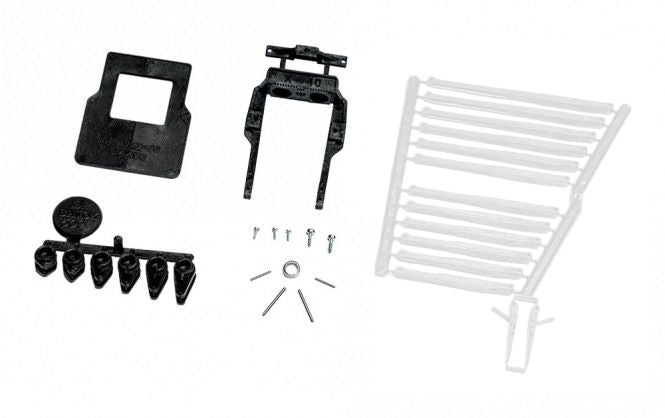

The IDS is supplied with a selection of different length pushrods, making the system suitable for any model. The set also includes 6 IDS servo arms of different lengths, so the IDS can be used on the aileron as well as on the flap. The IDS system can also be used for "left" and "right".

Clevis set, effective lever lengths: 4.5 mm, 5.5 mm, 7 mm, 8 mm, 10 mm, 11.5 mm

IDS pushrod Mirco, effective lengths: 45 mm, 48 mm, 50 mm, 53 mm, 55 mm, 58 mm
Cross-section: 4 x 3.5 mm

IDS pushrod Mini, effective lengths: 61 mm, 63 mm, 65 mm, 67 mm, 69 mm, 71 mm, 73 mm, 75 mm, 77 mm, 79 mm, 81 mm
Cross-section: 4 x 3.5 mm

IDS pushrod Midi, effective lengths: 48 mm, 51 mm, 54 mm, 57 mm, 60 mm, 63 mm, 66 mm, 69 mm, 72 mm, 75 mm, 78 mm, 81mm
Cross-section: 6 x 3.8 mm

Servo frame dimensions: 61 x 45 x 11 millimeters

the following servos can be used:

• Savöx SG-0211MG
• Savöx SG-1212MG
• Savöx SG-1211MG

Please note: The screw holes on the servo housing must be slightly reworked for assembly. A solution is currently being sought with the manufacturer.
