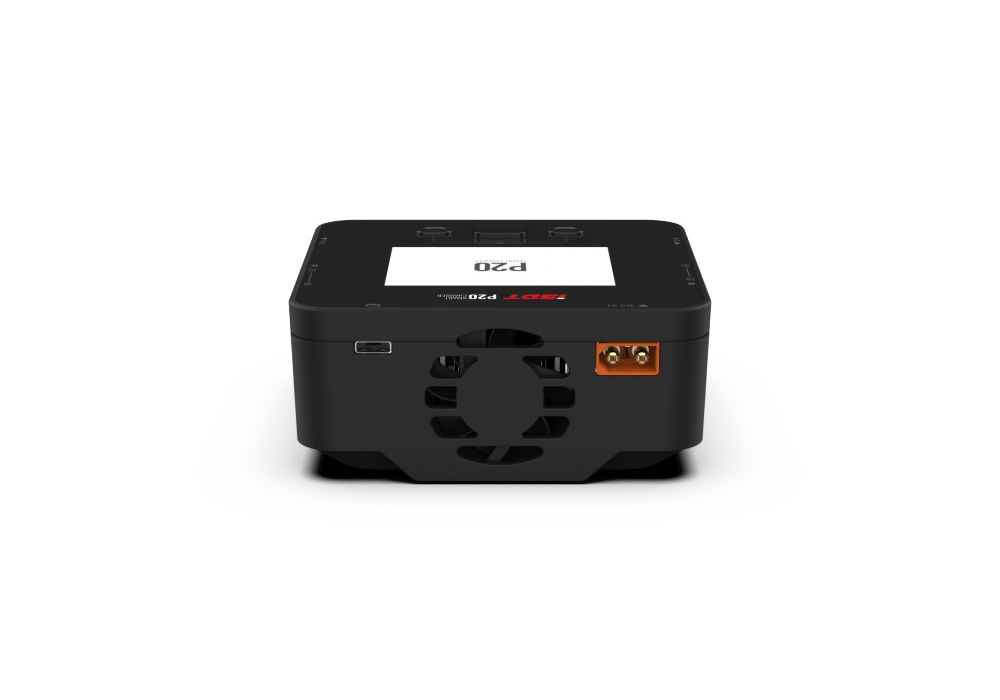

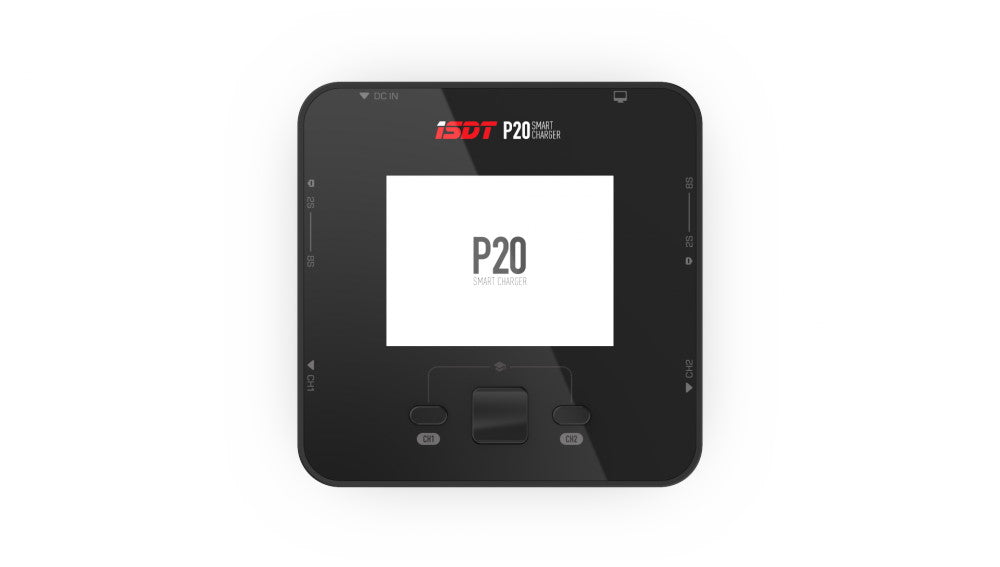

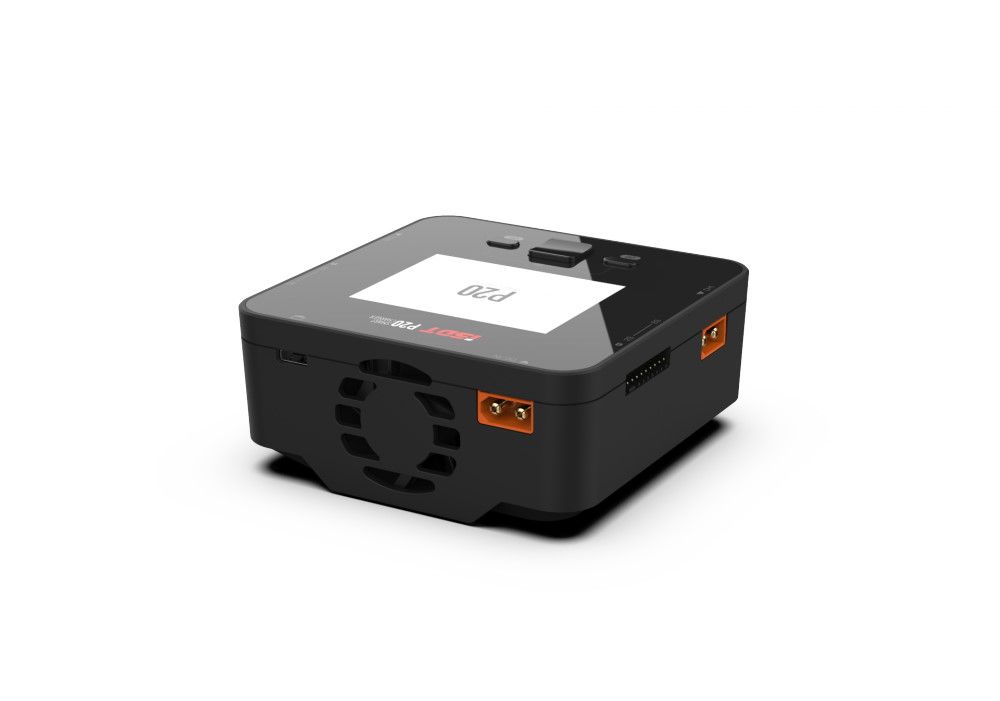

iSDT SMART P20 Duo Charger, BATTGO, 2x 500W, 20A, 8S Lipo, 10-30V DC
As of April 2026 · Prices incl. VAT unless stated otherwise.
-
Delivery time Germany: 1-3 business days.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
iSDT SMART P20 Duo Charger, BATTGO, 2x 500W, 20A, 8S Lipo, 10-30V DC
iSDT SMART DUO CHARGER P20, 2x 500W, 20A, 8S Lipo, 10-30V DC
Very compact 2-channel charger with 2x 500 watts of charging power and up to 2x 8-cell LiPo. A single channel can deliver a maximum of 500W. The max. charging current per output is 20A. The balancer works with up to 1500mA/cell.
The new ScOS 2.0 operating system has been optimized for improved system stability and expands the functionality with additional programs:
-
DC Power - the output can be used as a DC output, voltage and current are adjustable
-
dark mode - the display is switched for use in the dark
-
battery scrap - if a battery is to be disposed of, it can be discharged to 0V with this function
With the "parallel task" program, both charging outputs are connected. This allows a battery pack to be charged with a maximum of 800W. One of the two balancer ports can be used for balancing.
Technical data:
- Input voltage: 10-34V - DC voltage
- Max input current: 35A
- Output voltage: 2-30V max. 150W
- Total charging power: 1000W (from 25V input voltage)
- Charging power: 500W per channel
- Discharge power per channel: 15W
- Charging current per channel: 0.2-20A
- Discharge current per channel:
- Balancer current: 1500mA/cell
- Adjustable end-of-charge voltage: up to 4.35V for LiHV
- Number of cells - battery type: 1-8 LiXX, 1-7 LiHv, 1-16 NiXX, 1-12 Pb per channel
- Weight: 250 g
- Dimensions: 105x105x65 mm
- Color display: 2.4 inch IPS LCD, easy to read even in daylight and at an oblique viewing angle
- Updatable via USB
- Multilingual menu navigation also available in German
No balancer board is included with the charger!
