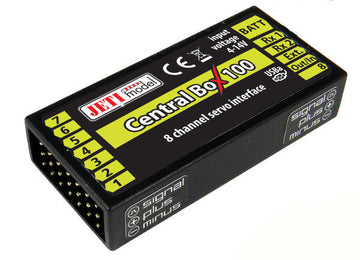

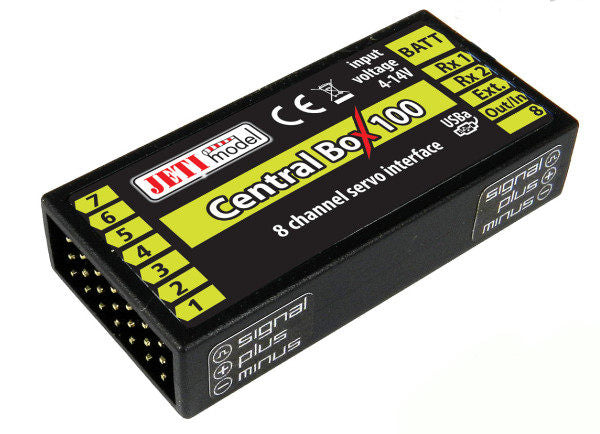

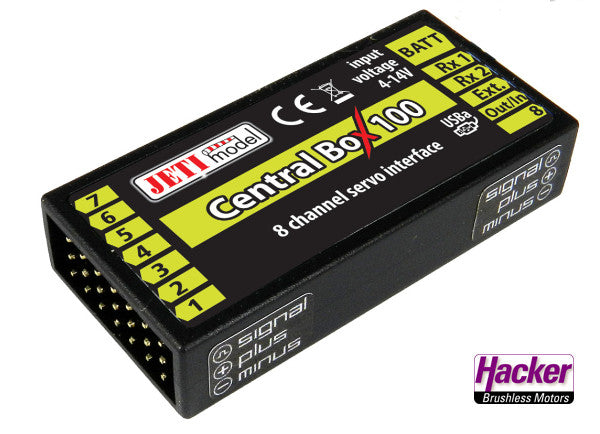

JETI DUPLEX 2.4EX Central Box 100
Hacker # 80001603

The Jeti Duplex Central Box 100 is the central connection unit for the complete management of up to eight servos in a model. The focus here was on maximum safety. The Central Box 100 has a unique design that offers overload protection on each servo output. It is powered by a receiver battery and fully supports the JETI EX telemetry system. Up to two receivers with serial (PPM, EX Bus) output can be connected to the Central Box 100. With the JETI Duplex DC/DS transmitters, you can exploit the full potential of this Central Box 100, such as the easy programming option, full EX telemetry and the very fast servo response.

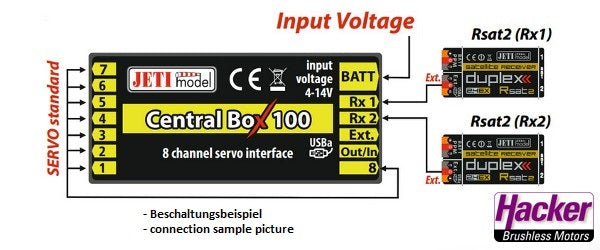

The Central Box 100 supports up to 8 protected servo outputs, max. two RSAT2 receivers and one receiver battery. The RSAT2 receivers are NOT included in the delivery.

Features:

• Overload protection for each channel
• Possibility to connect up to 2 receivers with serial interface (PPM, EX Bus)
• Built-in expander function for up to 3 telemetry sensors
• MPX high-current input for the receiver battery
• 100Hz mode of the servo outputs (10ms period)
• Supports EX telemetry (voltage, current, consumed capacity and temperature measurement, overload indication, ...)
• Easy programming via DC/DS transmitters
• Firmware updates by user (via JETI USBa adapter)
• Suitable for use with high-voltage (HV) servos
• Compact size for easy installation in the model
• Each output is individually configurable (channel assignment, trim, direction of rotation, servo travel (ATV))

Technical data:

• Manufacturer / Importer: Jeti / Hacker:
• Operating voltage [V]: 4.0 - 14 (4..10Nixx / 2..3Lixx)
• Continuous current [A]: 10 (90 for 2 sec.)
• Dimensions approx.: [mm] 52x25x11
• Weight approx.: [g] 20
• Number of channels: 8
• Telemetry capable: yes
• Operating temperature: [°C] -20...+75
