JETI DUPLEX 2.4EX Central Box 400 + 2x Rsat2 + RC Switch, Hacker # 80001607

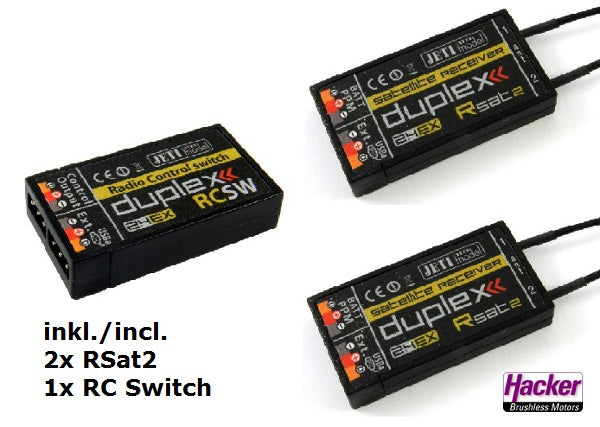

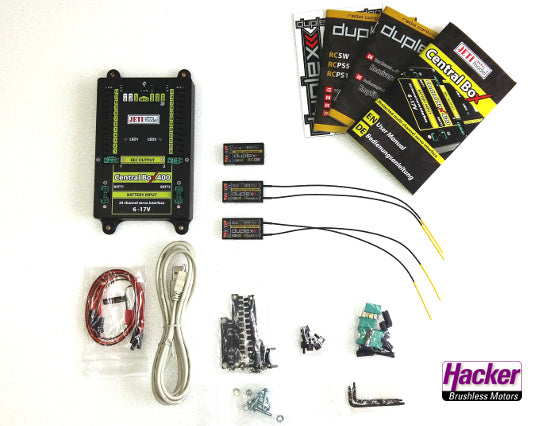

Centralbox 400 + 2x Rsat2 + 1x RC Switch
Hacker # 80001607

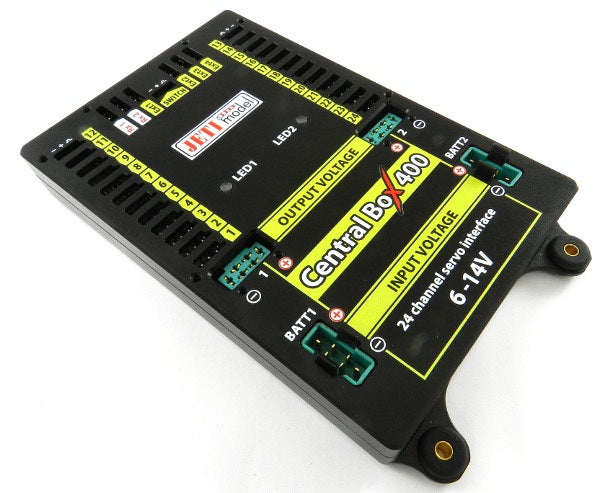

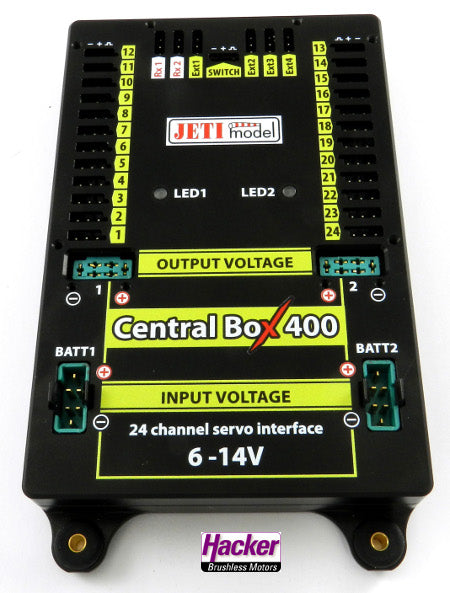

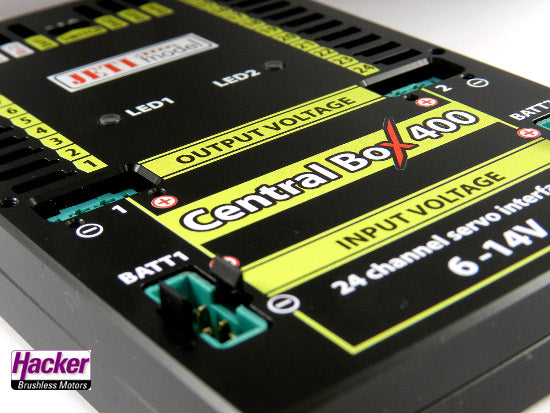

The CentralBox 400 is a combination of a heavy-duty battery switch with adjustable voltage reduction, 24 programmable and protected servo ports, and up to 4 telemetry ports. The two included satellites can be connected with JETI EX-Bus or
PPM sum signal. Commissioning (ON/OFF) is done wirelessly via the RC Switch from the JETI Duplex DS/DC transmitter (RC Switch incl.).
Features:
- Channel slots: 24 with 5V pulse voltage
- Receiver connections (e.g. for RSAT2): 2x
- Voltage regulation for servo connections: 2x BEC with adjustable voltage from 5 to 8.4V
- Telemetry: battery input voltage, current consumption of the RC system, consumed capacity, temperature, overcurrent trip
- External sensor connections: for up to 4 sensors
- Overcurrent/short-circuit protection for each servo slot
- Supported protocols: PPM, EXBUS, EX,..
- ON/OFF switch: via the JETI RC Switch from the transmitter
- Connection option for further JETI Central Boxes, the regulated output voltage is provided via MPX connections (up to 15A per connection).
- mechanically secured battery connections (security clips)
- Vibration-proof mounting option
- Full aluminum housing for perfect heat dissipation under high load and mechanical stability
Technical Data CentralBox 400:
- Weight [g]: 271
- Dimensions [mm]: 130 x 86 x 19
- Continuous current max. [A]: 30
- Supply voltage [V]: 6 ... 14
- Battery connections: 2
- Outputs with regulated voltage: 2
- Peak current (300ms) [A]: 200
- Current consumption in OFF state [uA]: 60
