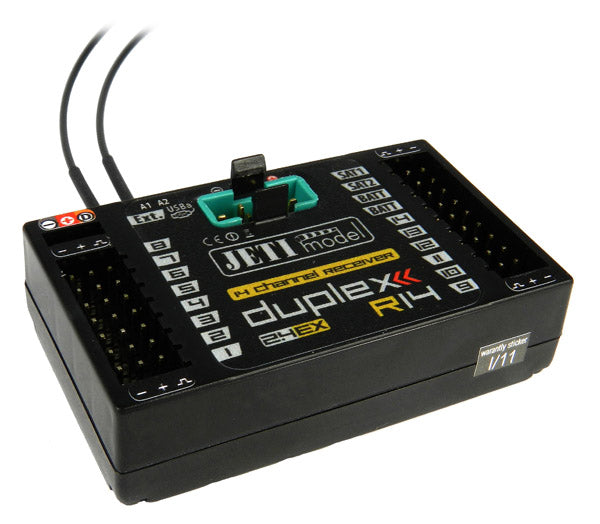

JETI DUPLEX 2.4EX Receiver R14, # 80001208
As of April 2026 · Prices incl. VAT unless stated otherwise.
-
Delivery time Germany: 1-3 business days.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
JETI DUPLEX 2.4EX Receiver R14, # 80001208
JETI DUPLEX 2.4EX Receiver R14, # 80001208
The DUPLEX 2.4EX R14 receiver offers the option of connecting a DUPLEX 2.4GHz satellite receiver. The servo outputs can be assigned to any channels.
This eliminates the need for V-cables. Programming is done via the JETIBOX. Power can be supplied via an MPX connection or any servo slot.
- Updatable (USB interface required)
- compatible with "non-EX versions"
- bidirectional communication with Duplex transmitters
- prepared for voice output on JETI transmitters and JETI PROFIBOX
- Telemetry data transfer to JETI transmitters, or readable via JETIBOX
- Voltage display of receiver power on JETI transmitter
- Servo channels freely assignable
- adjustable value for alarm triggering
- Failsafe adjustable
- Servo travel, center position and runtime adjustable
- fast activation after power on (0.25 Sec.)
- Connection of sensors possible (up to 8 sensors with 8 channel expander)
- programmable with JETI Box or wirelessly with Jeti transmitter
Technical data:
- Manufacturer Jeti Model
- Operating voltage 3.2 - 8.4 V
- Frequency band 2.4 GHz
- Current consumption approx. 40 mA
- Dimensions approx. 62x38x16mm
- Weight approx. 30 grams
- Sensitivity -106 dBm
- Output power 20 dBm
- Number of channels 14
- Antenna length 2 x 400 mm
- Operating temperature -10°C - 85°C
