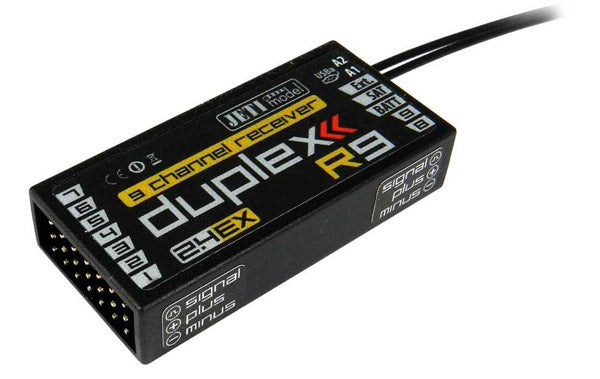

JETI DUPLEX 2.4EX Receiver R9, Hacker # 80001224
JETI DUPLEX 2.4EX Receiver R9 # 80001224
The DUPLEX R9 receiver was designed for use in medium and large models with slim fuselages. The receiver has the usual JR connectors for the servos and a JR connector for telemetry. Power can be supplied via any servo slot. An additional SAT receiver can even be connected.
- Updatable (USB interface required)
- compatible with "non-EX variants"
- bidirectional communication with Duplex transmitters
- prepared for voice output on JETI transmitters and JETI PROFIBOX
- Telemetry data transfer to JETI transmitters, or readable via JETIBOX
- Voltage display of receiver power supply on JETI transmitter
- Servo channels freely assignable
- adjustable value for alarm triggering
- Failsafe adjustable
- Servo travel, center position and transit time adjustable
- fast activation after switching on (0.25 Sec.)
- Connection of sensors possible (up to 8 sensors with 8 channel expander)
- programmable with the JETI Box or wirelessly with Jeti transmitter
Technical data:
- Manufacturer Jeti Model
- Operating voltage 3.2 - 8.4 V
- Frequency band 2.4 GHz
- Current consumption approx. 30 mA
- Dimensions approx. 51x24x11mm
- Weight approx. 13 grams
- Sensitivity -106 dBm
- Output power 20 dBm
- Number of channels 9
- Antenna length 2 x 200 mm
- Sat receiver possible yes
- Operating temperature -10°C - 85°C
