Description:

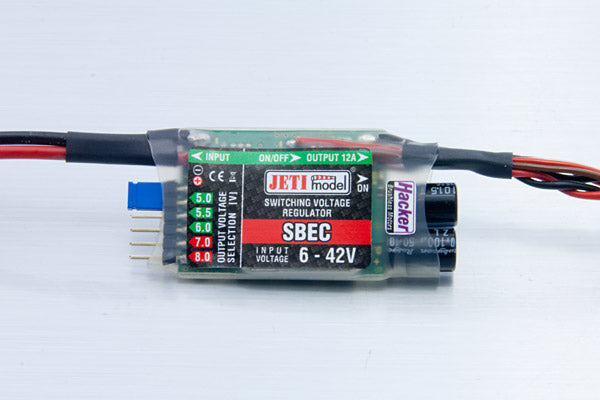

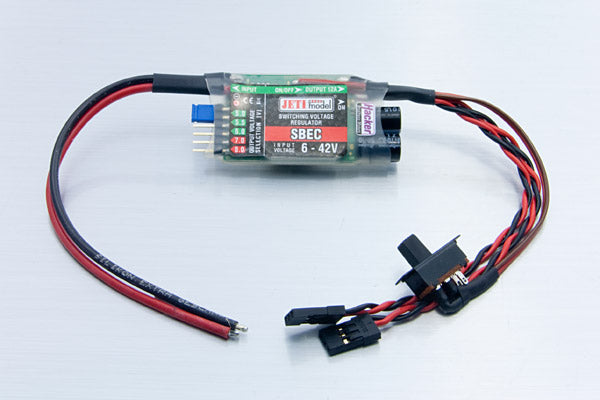

With this SBEC switching regulator from JetiModels, it is possible to power your receiver and servos directly from the flight battery with the necessary voltage and current. With an impressive 12A pulse current (for max. 5 sec.), the SBEC works with 2S-10S LiXX batteries and can output a selectable output voltage of 5-8V. For example, Hacker's factory helicopters are equipped with this SBEC to be able to do without the bulky and heavy receiver battery.
The possible continuous current depends heavily on the input voltage, at:
- 2S: 6.2A
- 3S: 5.7A
- 4S: 5.4A
- 5S: 5.1A
- 6S: 4.7A
- 8S: 4.1A
- 10S: 3.5A
Technical data JetiModel SBEC
- Manufacturer / Importer Jeti/Hacker
- Input voltage (recommended/max.) 6-42V/50V
- Output voltage adjustable 5.0V-5.5V-6.0V-7.0V-8.0V
- Max. operating temperature 85°C
- Pulse current 12A (max 5 sec.)
- Quiescent current 140-600µA (at 7-42V)
- Weight approx. 29g
- Dimensions 60x28x10mm
