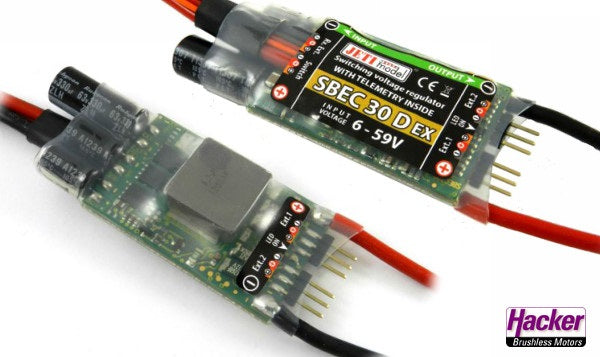

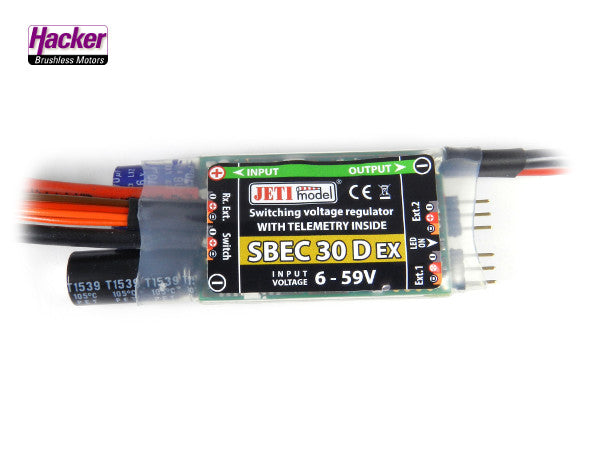

JETImodel SBEC 30 D, receiver power supply from the drive battery
JETImodel SBEC 30 D, receiver power supply from the drive battery
Powerful BEC with adjustable output voltage. Supplies your receiver system from the drive battery. The setting can be made via the device overview of the Jeti DC/DS transmitters or the JetiBox. Switching ON/OFF is done here with the well-known magnetic switch. The SBEC 30 D has telemetry capabilities fully integrated and features electronic overload protection.
Features:
- Adjustable output voltage in 0.1 V increments: 5-8.4V
- Supply voltage: 6-59V
- Number of LiXX battery cells: 2 - 15
- Continuous output current: 8A
- Peak output current: 30A
- Telemetry via EX Bus (battery voltage, current flow, capacity, temperature, ...)
- Resetting of telemetry values via EX Bus/assigned switch on the DC/DS transmitter possible
- Expander function for connecting 2 additional sensors
Technical data:
- Recommended input voltage [V]: 6–59
- Max. input voltage [V]: 59
- Adjustable output voltage [V]: 5.0-8.4V
- Pulse current at output [A]: 30 A (5s)
- Temperature range [°C]: - 20 to +85
- Weight [g]: 50
- Dimensions [mm]: 72 x 30 x 12
Power consumption in OFF state:
- 130µA on 15S LiXX battery
- 70µA on 2S LiXX battery
