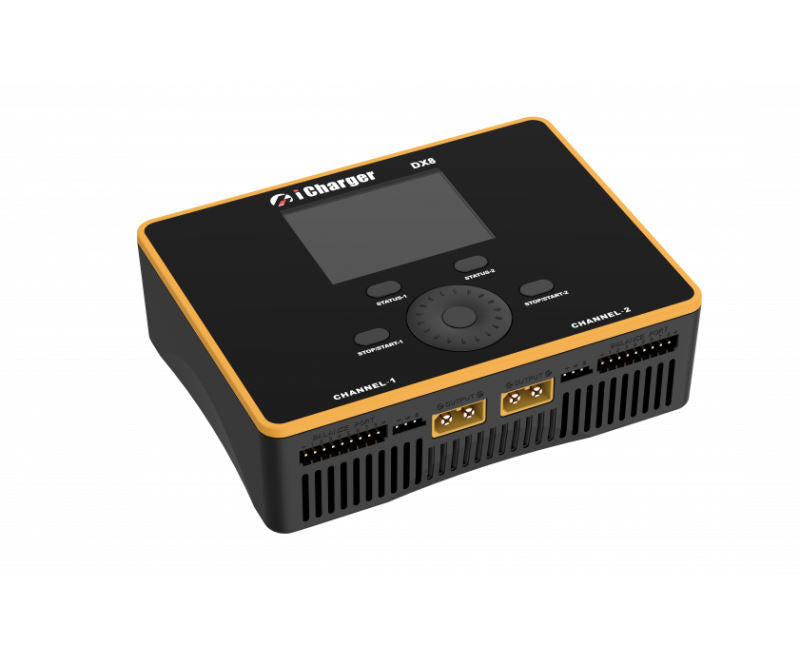

Junsi iCharger DX8 - 2x 8S LiPo, 2x 1100W or 1x 1600W

All Junsi chargers of the X and DUO series are developed and approved for use in model building. Industrial use is not intended and therefore not permitted! All Junsi chargers may only be operated with power supplies developed for model building! AGM batteries may not be charged in the PB program!

The new DX8 charger combines the advantages of the well-known Junsi iCharger 308DUO with the size of a small pocket charger. Despite its small size of 97.5x128.5x40 mm, no compromises were made in terms of performance and usability. The newly developed rotary wheel has a very good pressure point and makes operation much easier.

The technical data is impressive: 1600W charging power (from >25V), 1-8s LiXx cells and up to 30 amps of charging current are sufficient even for large batteries with high capacity. Of course, all other battery types such as LiHV, LiIo, NiZn, PB, NiCd or NiMh batteries can also be charged.

The discharge power is 70 watts total (45W per output if only one output is used), but can be increased to up to 2100W by means of an external load (discharge resistor). Of course, the iCharger DX8 also supports regenerative charging. Here, the battery capacity, for example, from a full flight battery, is fed back into the power supply battery.

The balancer current of 4 amps total (2A per output) always ensures perfectly balanced cell voltages.

A USB-C PD port for charging smartphones etc (5V/3A, 9V/2A, 12V/1.5A) or for software updates is also installed. The Micro SD slot can be used for logging data, but also for future updates.

A servo tester is also integrated, please note that an external power supply is required here!

The menu navigation is almost identical to the well-known Junsi iCharger 308DUO, 406 DUO or 4010DUO.

A 2.4 inch IPS LCD display ensures good readability even in low light.

Instructions in English are included with the charger in the form of a CD; the German version can be downloaded from our website.
