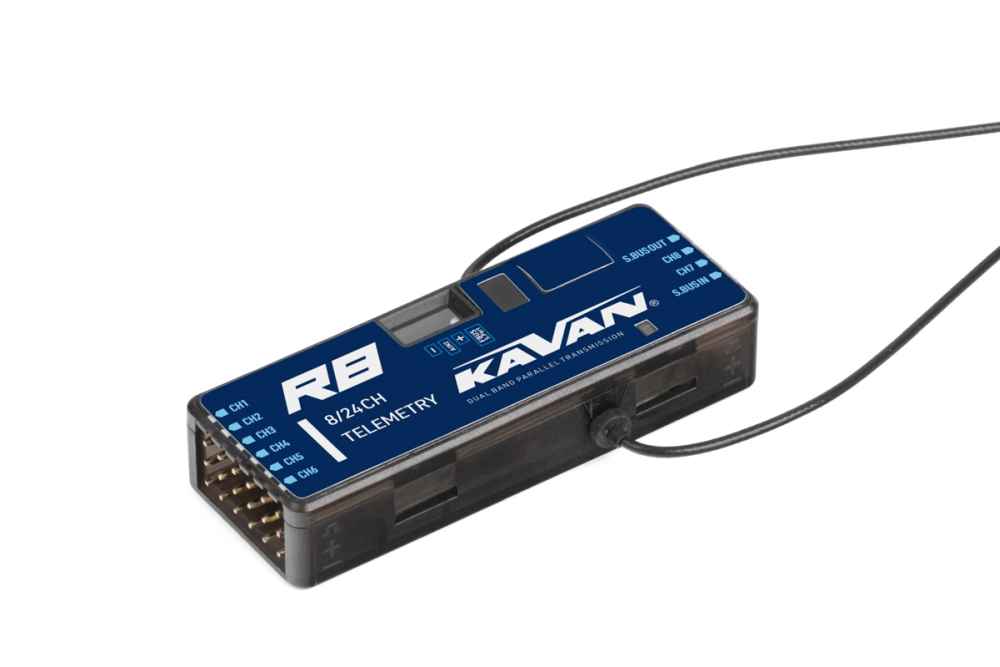

KAVAN Receiver R8, 8-channel, 2.4GHz
# KAV18.10008

Advanced 8-channel 2.4GHz dual-frequency Twin 2.4GHz telemetry receiver. It features 8 high-precision PWM channels and 16 or 24-channel mode via S.BUS. Two detachable antennas with IPEX4 connectors ensure full signal strength over a range of up to tens of kilometers. It is particularly suitable for gliders but can also be used for other models. With redundancy support, it can be connected as a primary receiver via S.BUS. With the Twin 2.4GHz protocol, both receivers in this connection operate completely simultaneously. Thanks to the F.BUS connection option, you can also quickly and easily bind it with several different telemetry devices, allowing bidirectional data transmission over a single cable.

The V8 receiver features advanced interference suppression for reliable, stable signal transmission over the entire range. The intelligent assignment of the transmission system speeds up pairing. The black box function stores important flight data. The receiver's operating states are indicated by an LED display. After intelligent binding, firmware updates are possible wirelessly.

Features:

• Increased protection against RF interference and more stable RF transmission
• Simultaneous Twin 2.4GHz dual-frequency transmission system with intelligent binding
• Black box function
• High maximum operating range
• Wireless firmware update (OTA)
• 8 high-precision PWM channels
• S.BUS output port (with 16/24-channel mode)
• S.BUS input port (with support for redundant connection of 2 receivers)
• F.BUS / S.Port

Technical Data:

• Frequency: two simultaneous 2.4 GHz
• Dimensions: 54×20×10 mm (L*W*H)
• Weight: 9.8 g
• Operating voltage: 3.5–10 V (minimum supply voltage 2.8 V)
• Operating current: 80 mA at 5 V
• External voltage measurement range via AIN2: 0–35 V
• Antenna connector: IPEX4
• Compatibility: 2.4 GHz dual-frequency simultaneous transmission system
