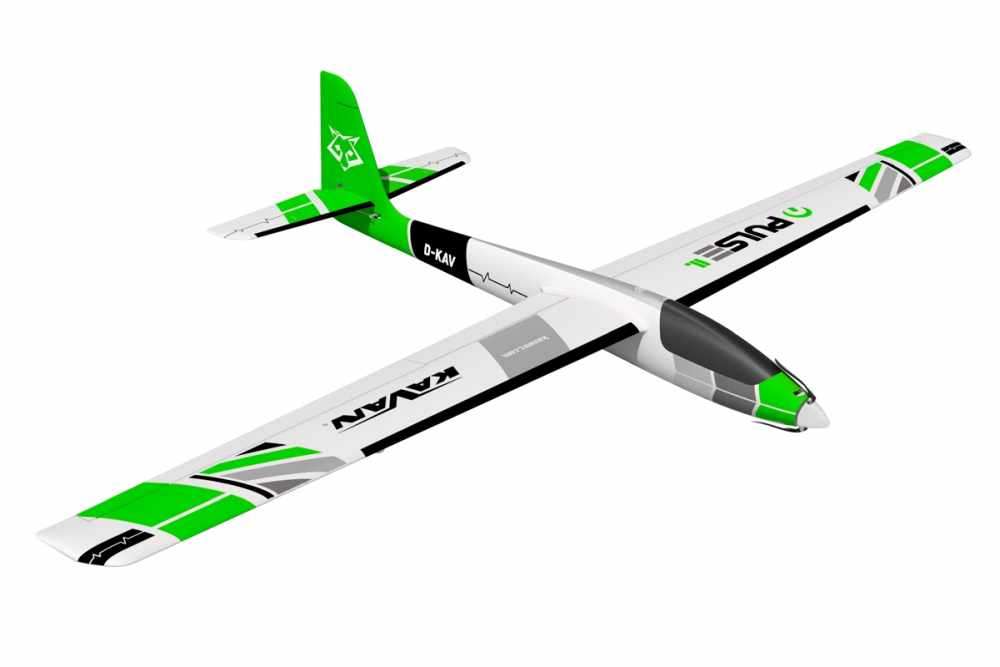

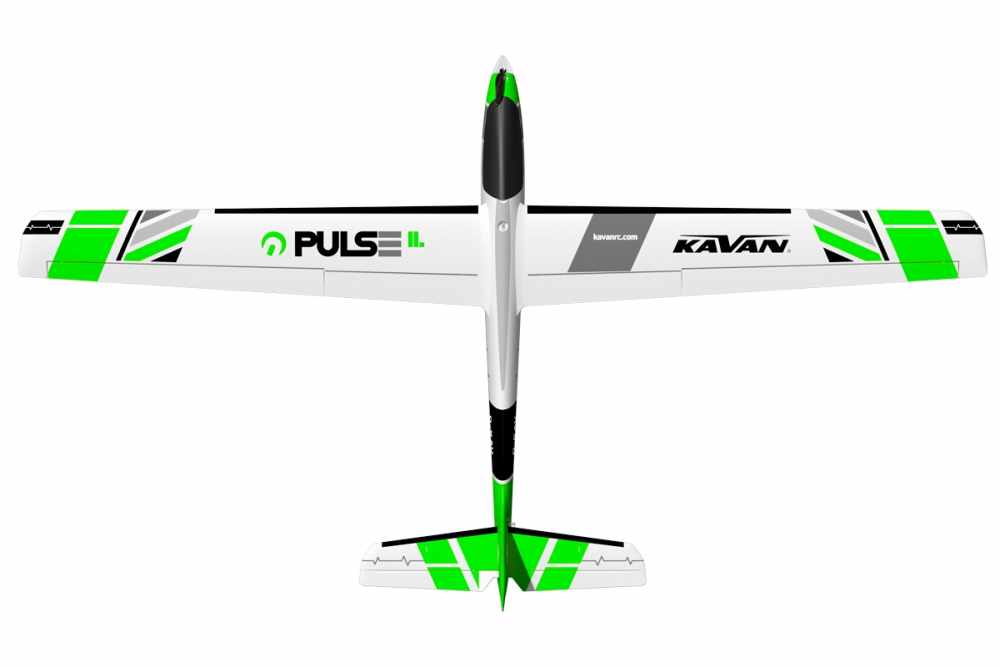

KAVAN Pulse 2200 V2 ARF, Spw. 2206mm, green
# KAV02.8092

The popular PULSE 2200 model is back in the V2 version – agile and nimble, with new, stronger and faster servos and a host of other improvements such as precise ball joints on the control rods, so you can enjoy plenty of fun on slopes and in flat areas. PULSE 2200 V2 has a wing with ailerons and flaps, a robust carbon-reinforced EPO foam construction, and thanks to a 600–800W brushless motor, it has enough power for aerobatics and slope soaring. The perfect leisure model that any advanced pilot can enjoy.

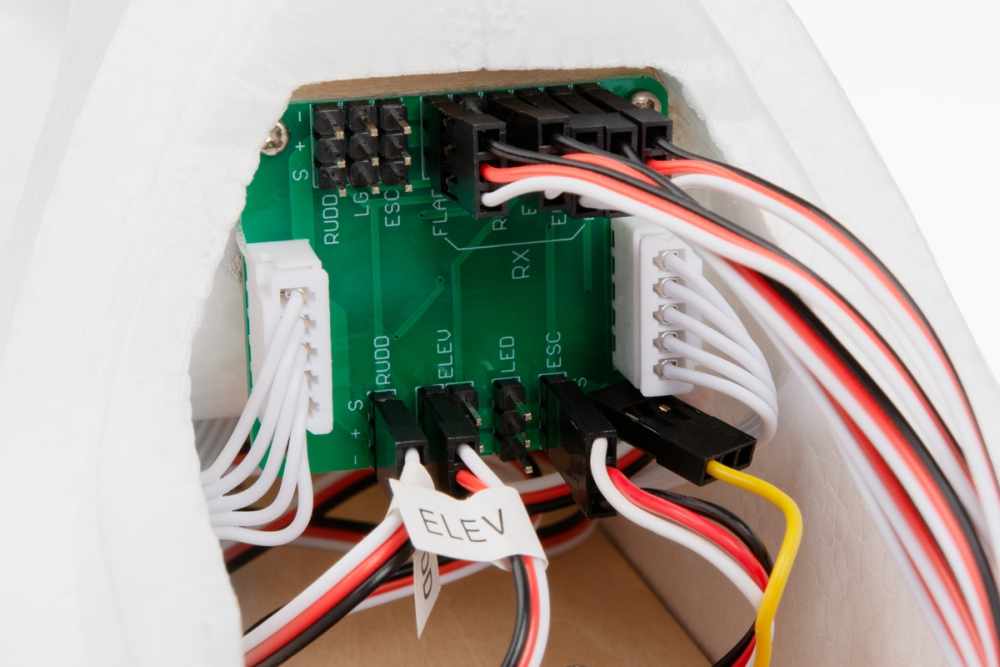

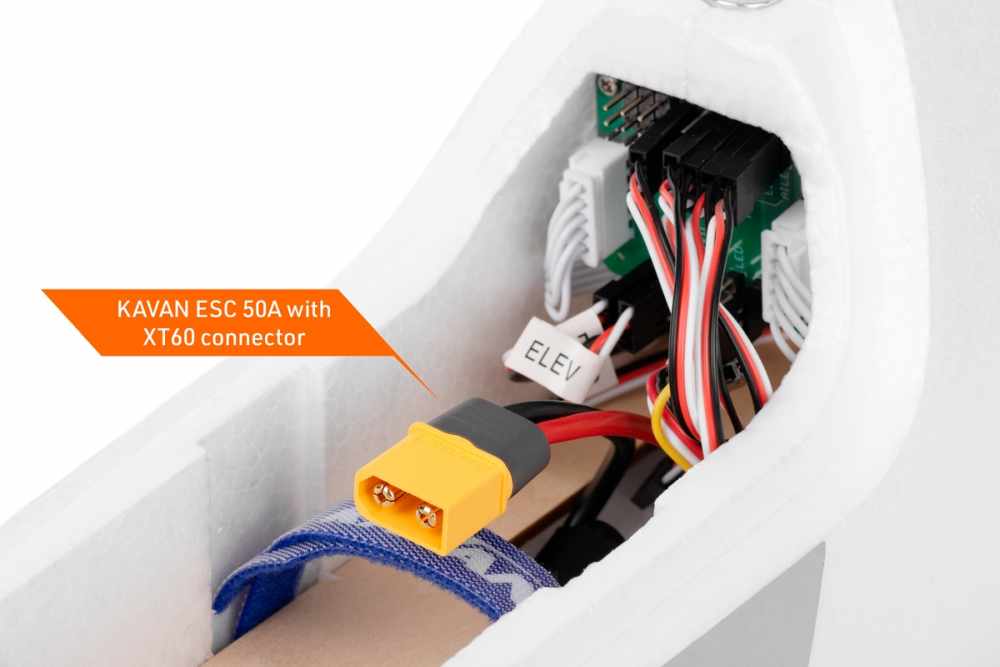

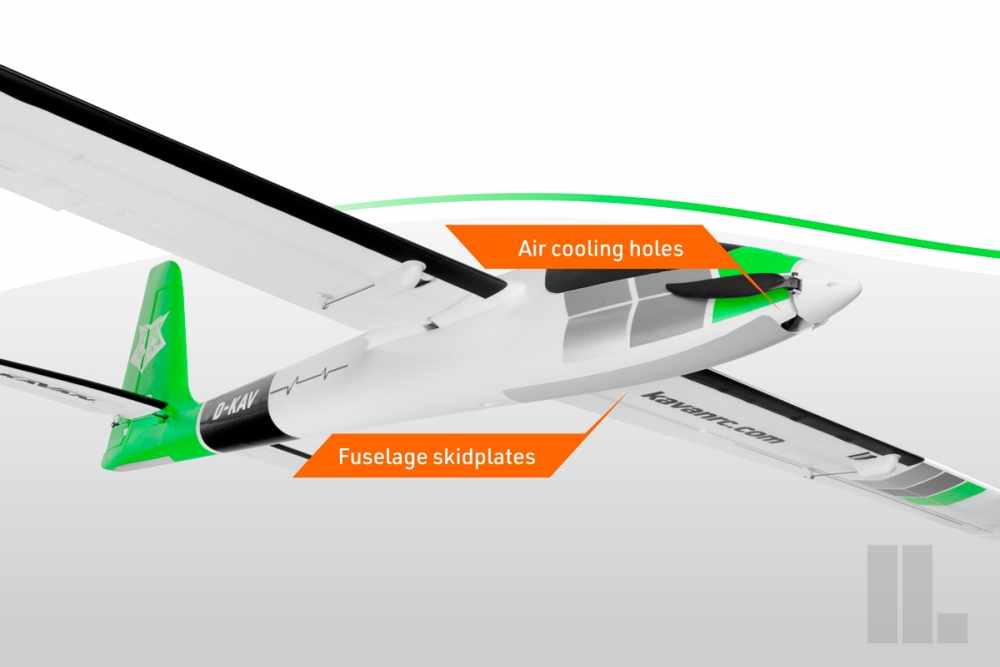

The fuselage of the model is made of highly durable EPO foam (extruded polyolefin) with strong internal reinforcements. A C3548-750 brushless electric motor with an 11×8-inch folding propeller and a KAVAN R-50SB Plus ESC with a powerful BEC stabilizer and extended programming options, which is required for powering 6 servos onboard, is already installed. The canopy is removable and is secured at the front with a pin and at the rear with a magnet. In the fuselage, you will find enough space for the drive battery and receiver. The elevator and rudder servos are located in the tail boom, and the rudders are controlled by short straight linkages.

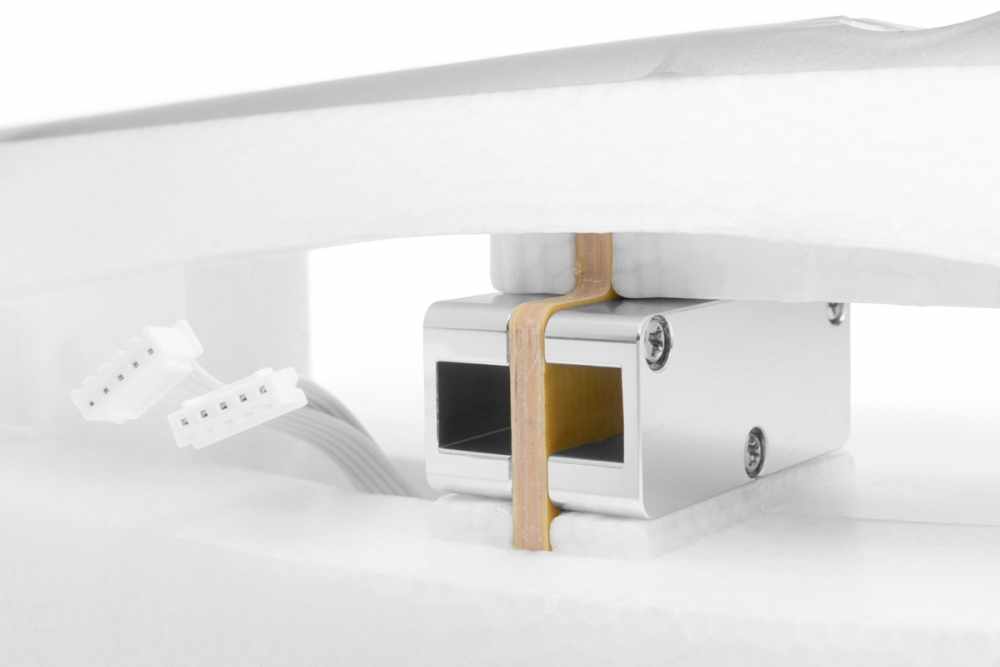

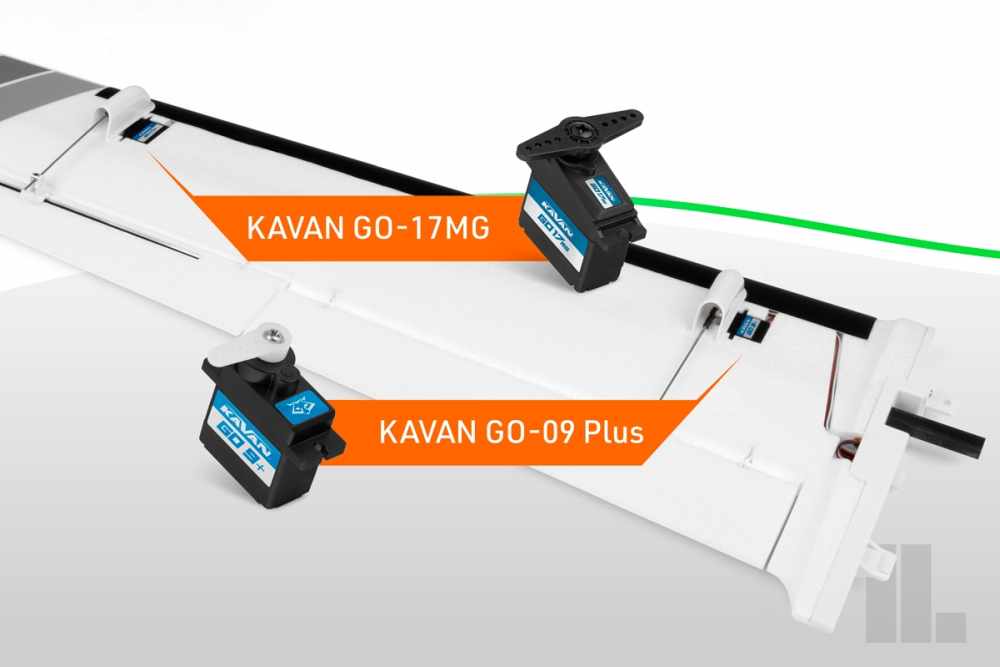

The model's EPO foam wing consists of two parts with carbon rods, whose exposed sections also serve as wing connectors and fit into the duralumin housings in the fuselage. The wing halves are secured with a plastic screw. The ailerons (reinforced with carbon rods) and the flaps are always independently controlled by two servos with short straight wire linkages.

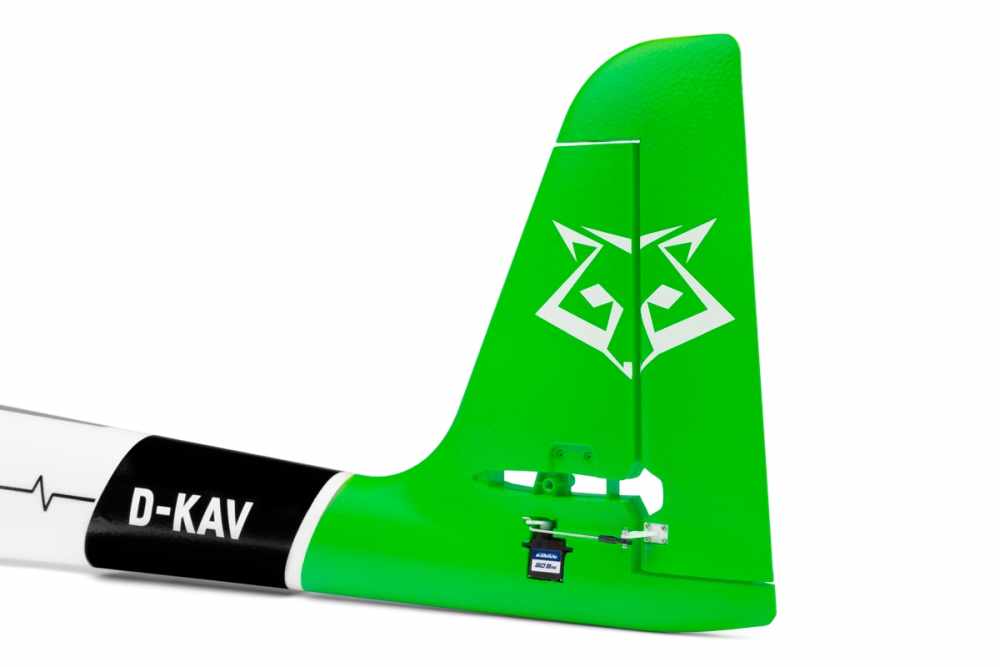

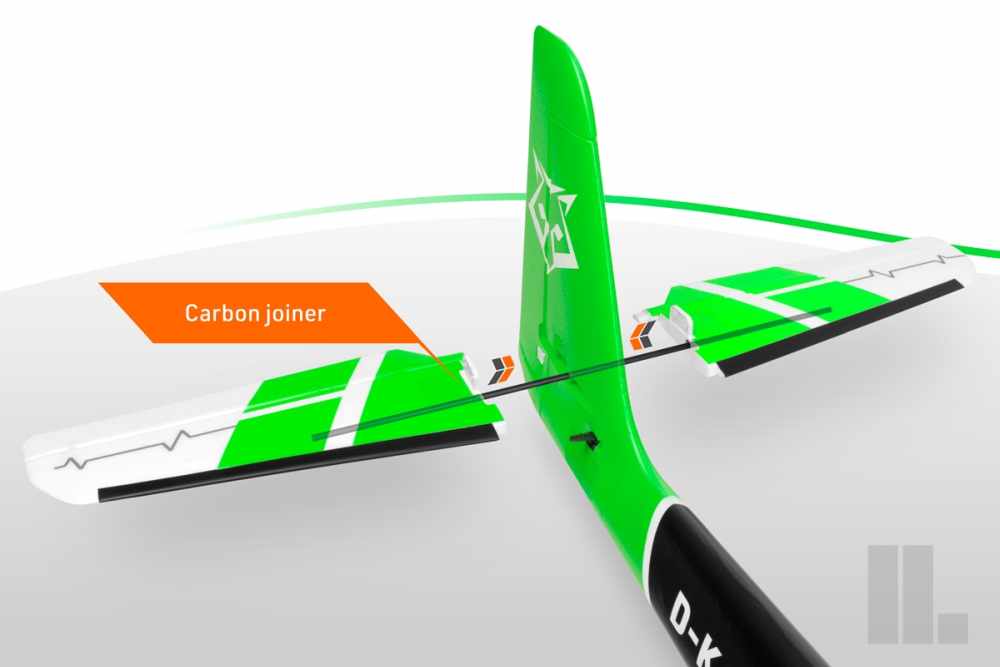

The tail surfaces are also made of EPO foam with carbon rods as reinforcement. The two-piece elevator is attached to the fin with a carbon rod and a pair of screws to simplify assembly and disassembly.

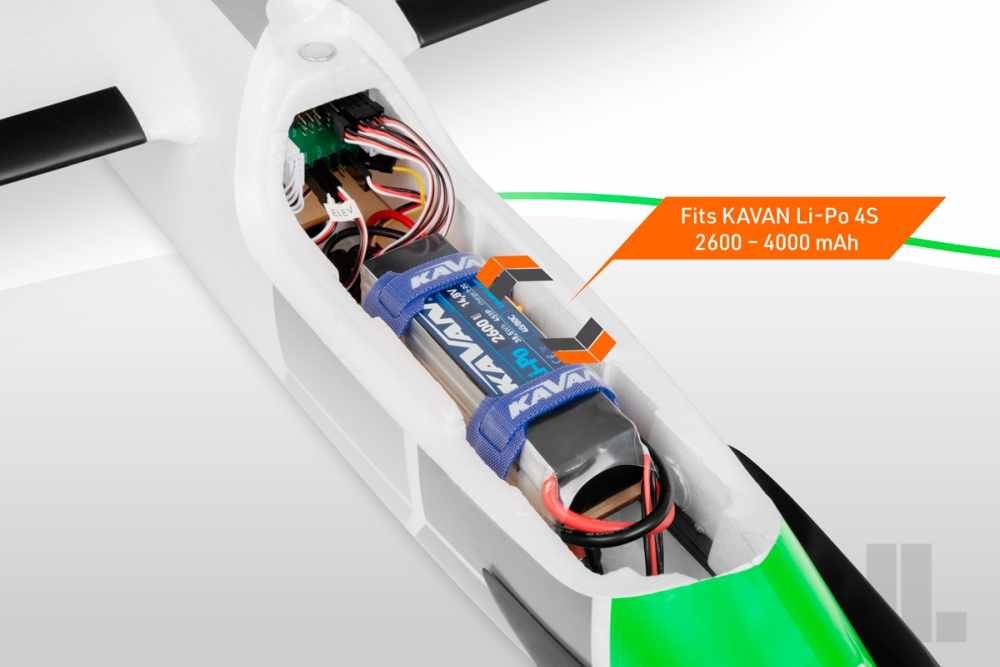

For power, you will need a 4-cell LiPo pack with a capacity of 2600–4000mAh and a minimum discharge rate of 30C.
To control the model, you can use a 6-channel RC set without special functions – in the basic version, ailerons and flaps are only connected to one channel via cables with multi-plugs.
Of course, it would be ideal to use at least a 7-channel computer RC set that allows independent control of ailerons and flaps by two servos and a mix for the butterfly brake. Here, both ailerons move up and both flaps move down. In this case, the aileron and flap servos must be connected separately. The instructions, of course, also include a detailed table with a proven standard setting for rudder deflections, so you can easily prepare your Pulse 2200 V2 for flight, even if it's your first model with a "four-flap wing".

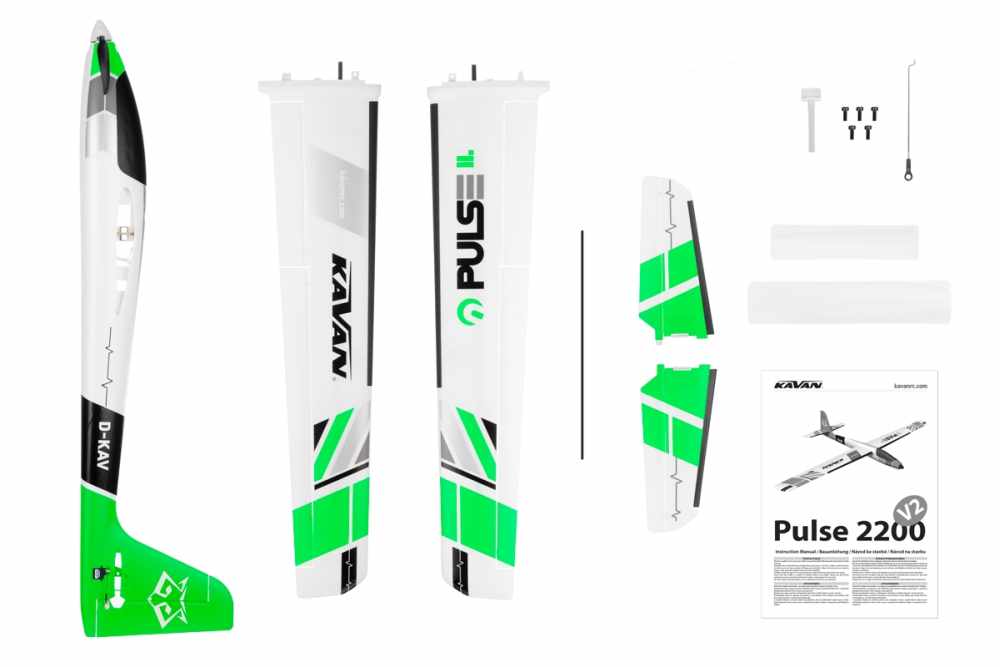

ARF set includes:

• Fuselage, wing, and tail surfaces made of polyolefin (EPO)
• Built-in motor, propeller, ESC, 6 servos
• Instructions
