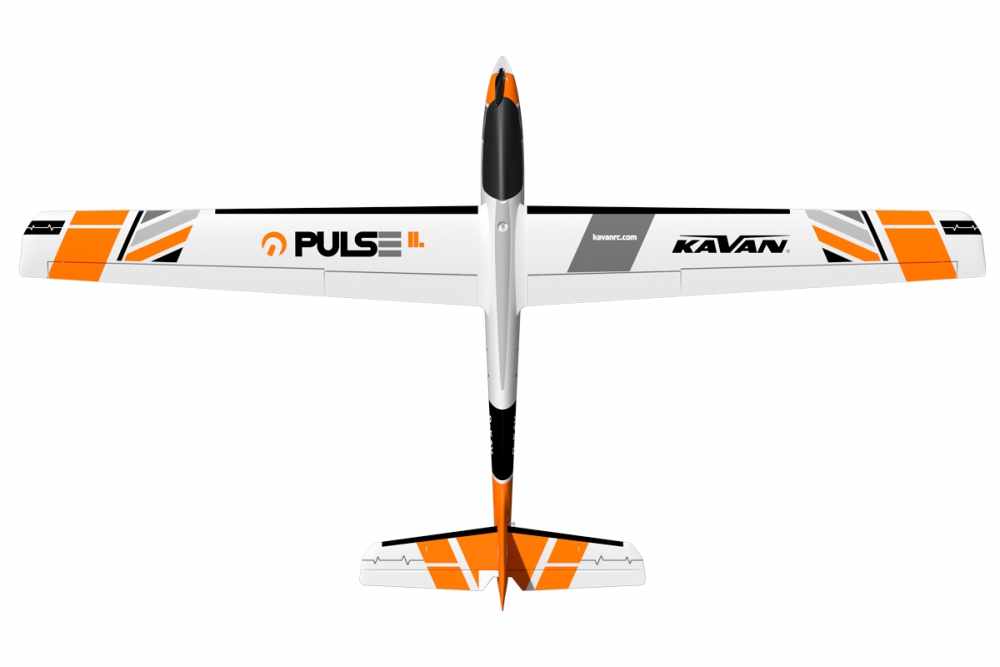

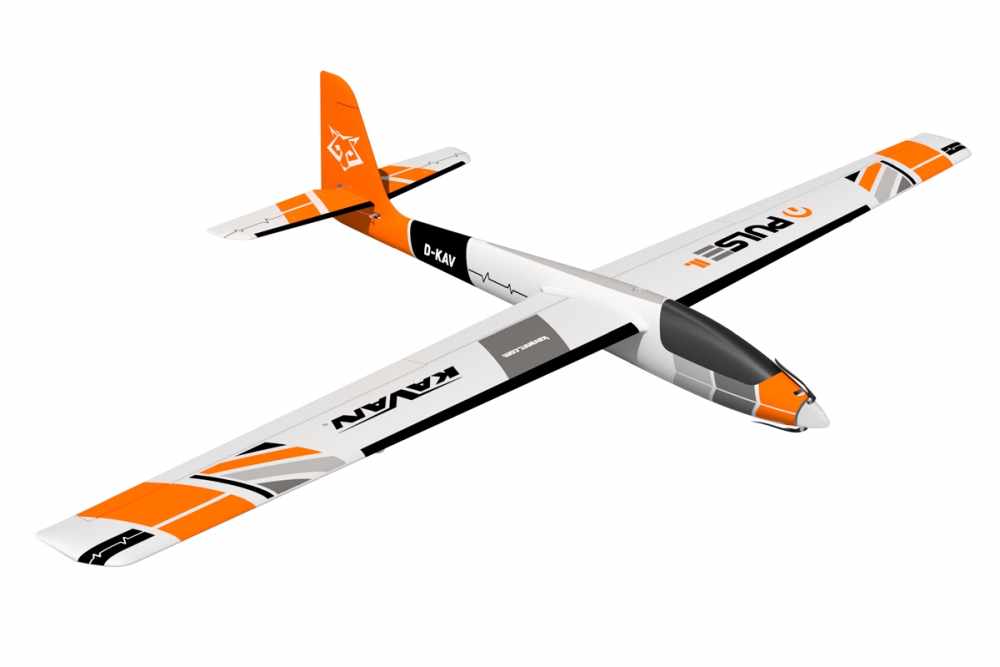

KAVAN Pulse 2200 V2 ARF, Spw. 2206mm, orange
# KAV02.8091

The popular PULSE 2200 model is back in the V2 version – nimble and agile, with new, stronger and faster servos and a host of other improvements like precise ball joints on the control linkages, so you can enjoy plenty of fun on the slope and on flat ground. PULSE 2200 V2 has a wing with ailerons and flaps, a robust carbon-reinforced EPO foam construction, and thanks to a 600–800W brushless motor, it has enough power for aerobatics and slope soaring. The perfect recreational model for any advanced pilot to let loose with.

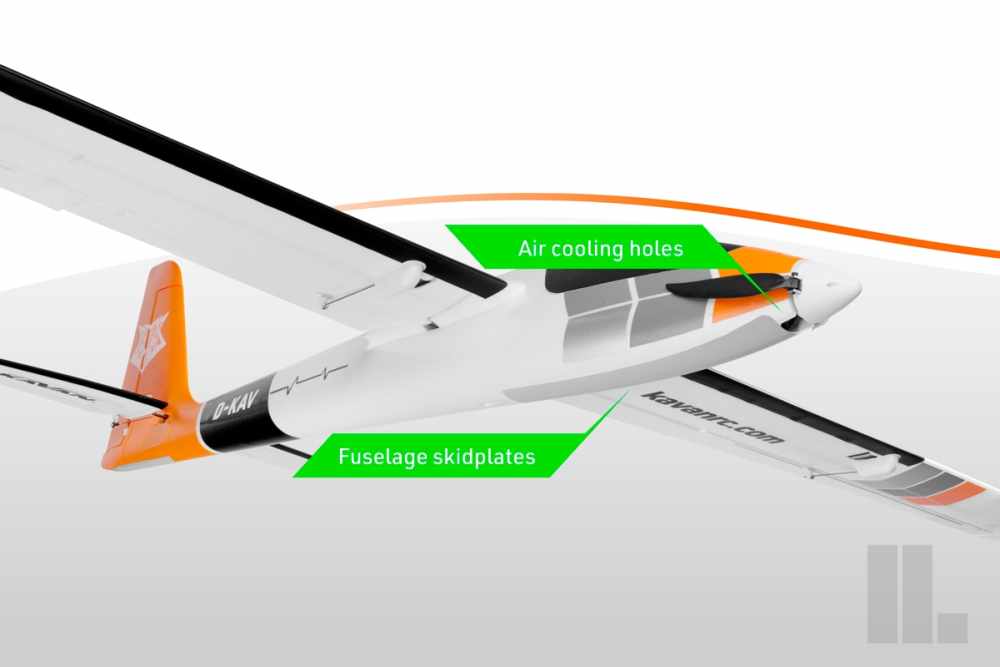

The fuselage of the model is made of highly durable EPO foam (extruded polyolefin) with solid internal reinforcements. A C3548-750 brushless electric motor with an 11×8-inch folding propeller and a KAVAN R-50SB Plus ESC with a powerful BEC stabilizer and extended programming options, which is necessary for powering 6 servos on board, are already installed. The canopy is removable and is secured at the front with a pin and at the rear with a magnet. Inside the fuselage, you will find enough space for the drive battery and receiver. The elevator and rudder servos are located in the tail boom, and the control surfaces are operated by short, straight linkages.

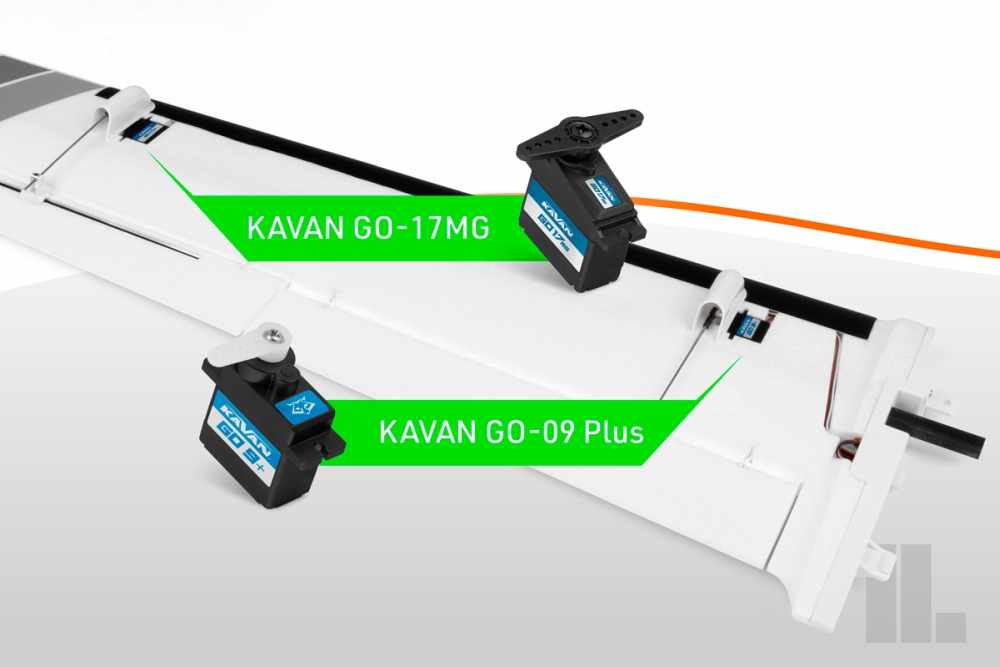

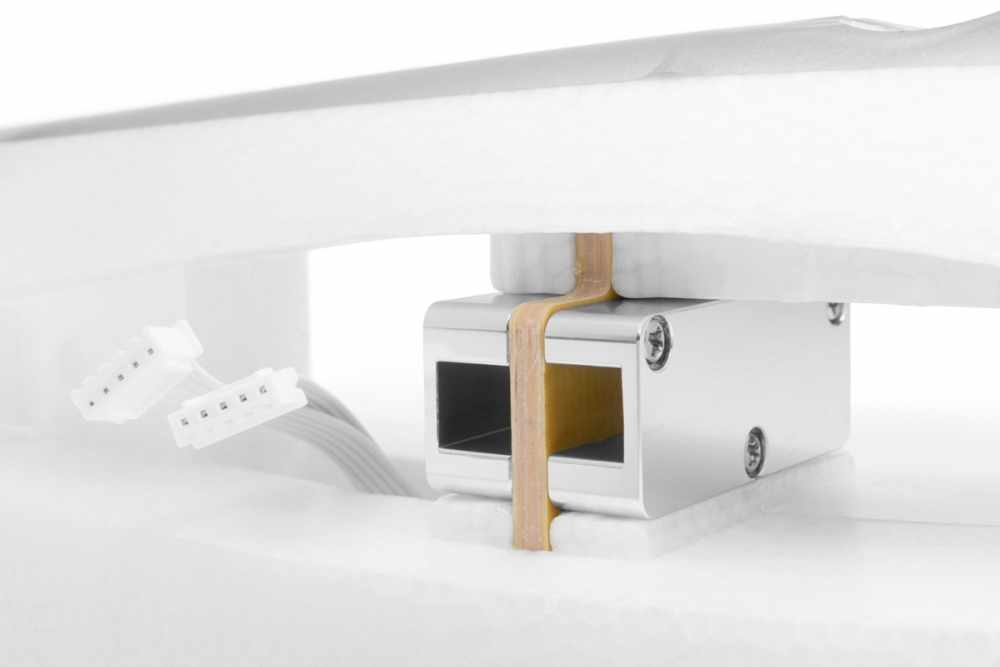

The model's EPO foam wing consists of two parts with carbon rods, whose extended parts also serve as wing connectors and fit into the duralumin housings in the fuselage. The wing halves are secured with a plastic screw. The ailerons (reinforced with carbon rods) and flaps are independently controlled by two servos each with short, straight wire linkages.

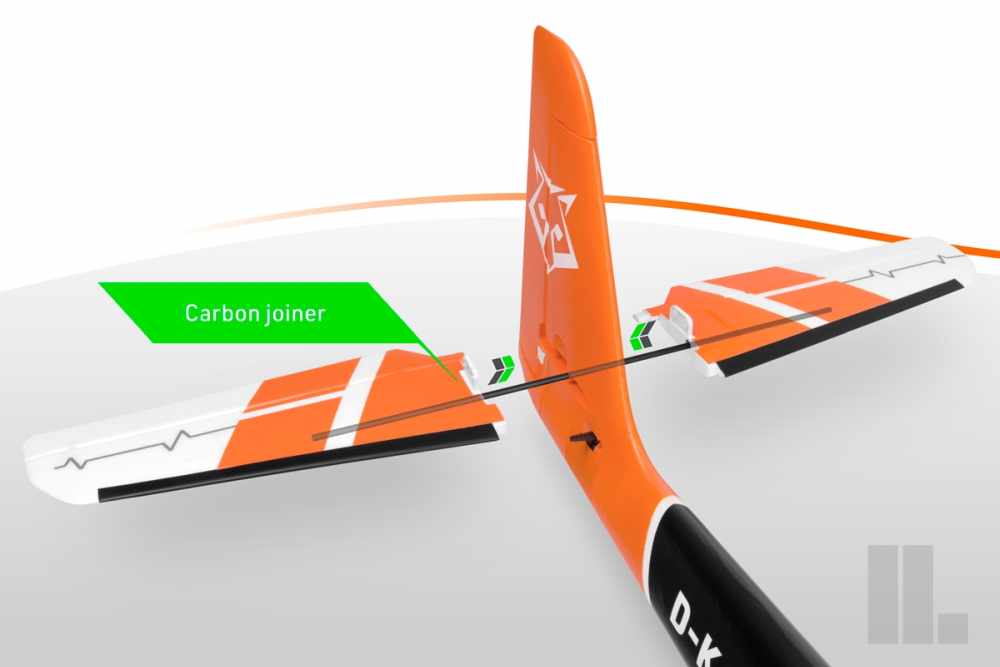

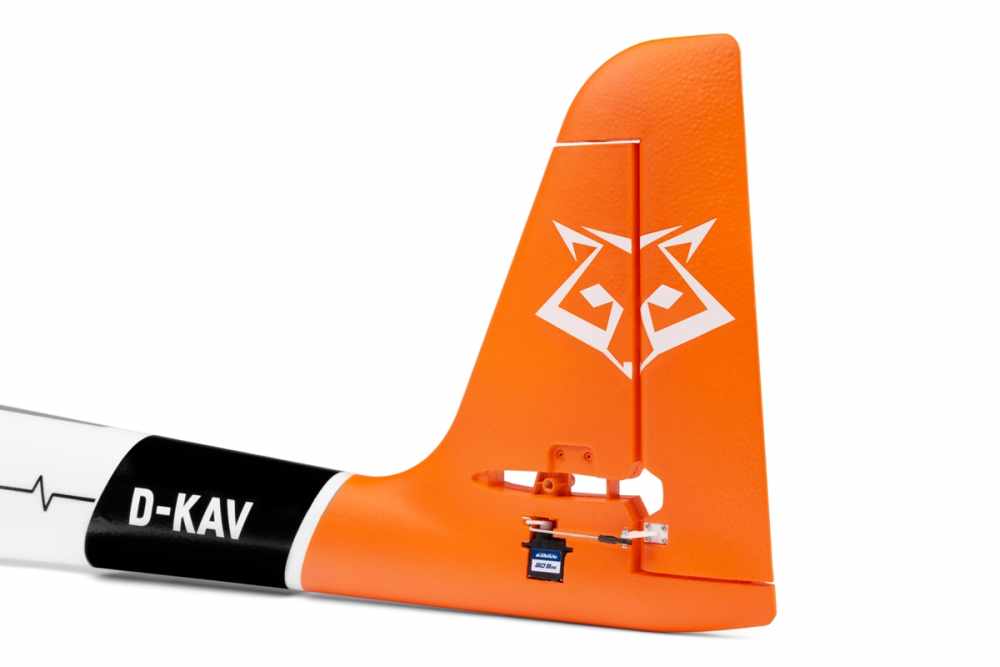

The tail sections are also made of EPO foam with carbon rods for reinforcement. The two-piece elevator is attached to the fin with a carbon rod and a pair of screws to simplify assembly and disassembly.

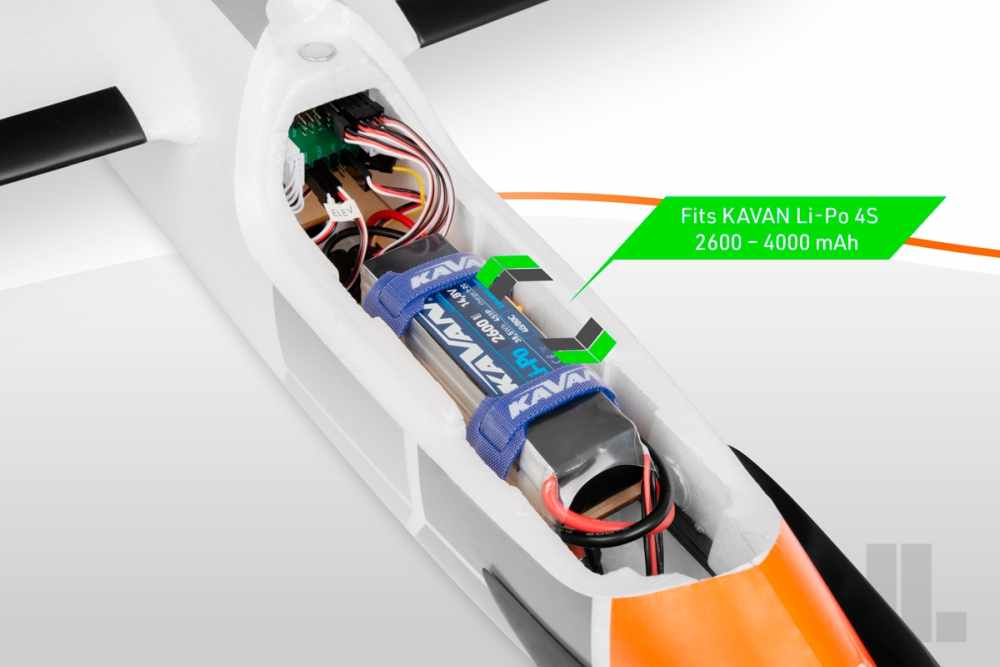

For power, you will need a 4-cell LiPo pack with a capacity of 2600–4000mAh and a minimum discharge rate of 30C.

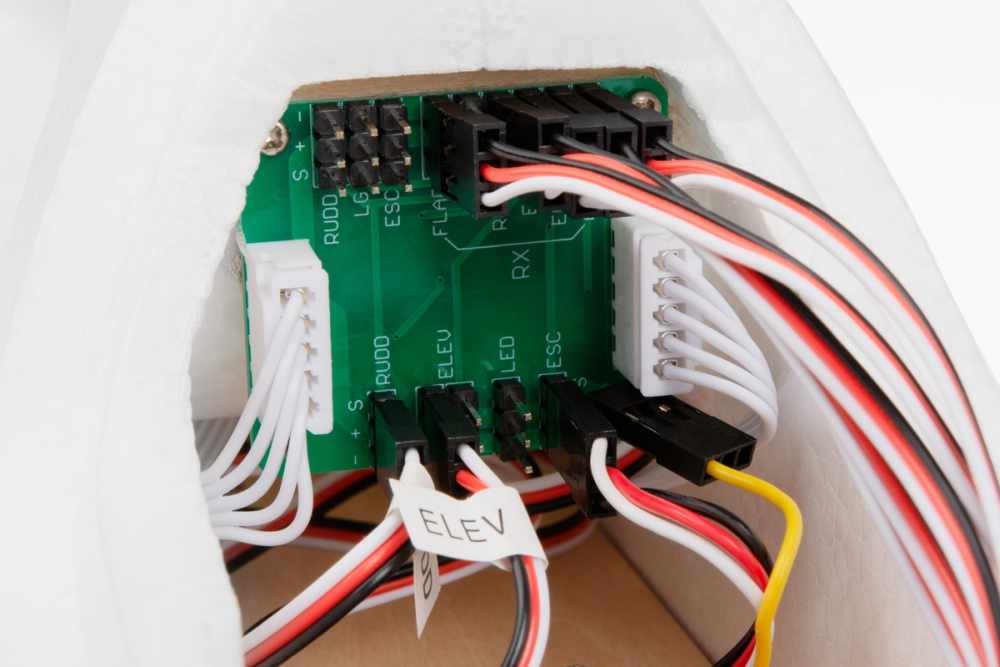

To control the model, you can use a 6-channel RC set without special functions – in the basic version, ailerons and flaps are always connected to one channel via cables with multi-connectors.
Of course, it would be ideal to use at least a 7-channel computer RC set that allows independent control of ailerons and flaps by two servos and a mix for the butterfly brake. Here, both ailerons move up and both flaps move down. In this case, the aileron and flap servos must be connected separately. The instructions, of course, also include a detailed table with a proven standard setting for rudder deflections, so you can easily prepare the Pulse 2200 V2 for flight, even if it's your first model with a "four-flap wing."

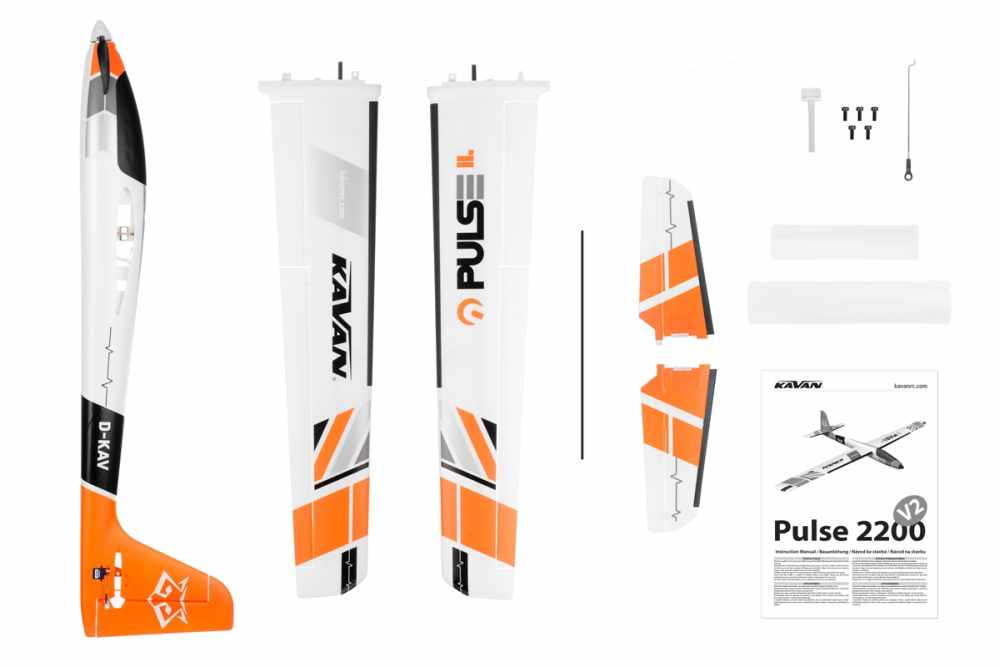

ARF set includes:

• Fuselage, wing, and tail unit made of polyolefin (EPO)
• built-in motor, propeller, ESC, 6 servos
• instructions
