"JK" Retract Engine Control with Programming Adapter, Uni Connection SM # 1000

For the fully automatic control of electric retract engines in large gliders.

Version for engines of the type Köllner / Braekler and similar.

A three-position switch on the transmitter controls the entire retract engine with three servos (1x engine arm and 2x cover flap) plus speed controller and tow release servo via a single receiver channel! Three additional limit switches prevent malfunctions even if, for example, a servo or the mechanism is defective. All servo values are programmed with the included programming adapter and permanently stored in the non-volatile memory of the processor.

An extension process proceeds as follows:

• Three-position switch on the transmitter forward
• the engine's cover flaps open, the engine arm slowly extends
• the engine's cover flaps close again
• the motor slowly accelerates to full throttle

The retraction process is analogous:

• Three-position switch on the transmitter back
• the motor slowly decelerates, the engine's cover flaps open
• the engine arm slowly retracts
• the engine's cover flaps close again

For the entire process, you only need to flip a single switch on the transmitter!

This makes a retract engine as simple as a direct drive in the fuselage nose!

• Control of 5 servos
• Safety circuits with limit switches prevent errors
• only one receiver channel required
• simple programming
• also controls a tow release
• high-quality, extra-long receiver connection cable
• stress-free retract engine operation
• prepared for software updates

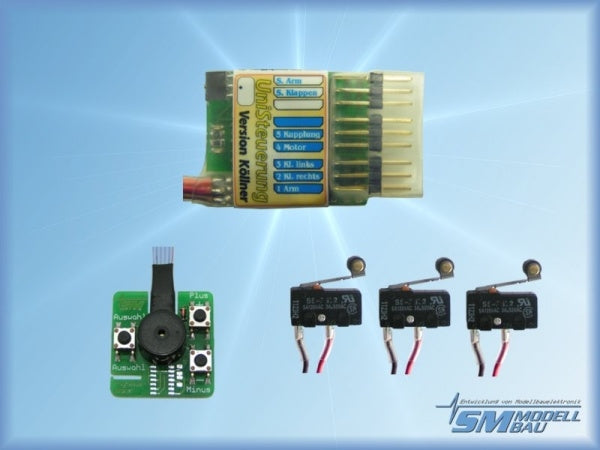

Scope of delivery:

• Main electronics for controlling 5 servos
• Limit switch set pre-connected
• Programming adapter
• detailed color instruction manual
