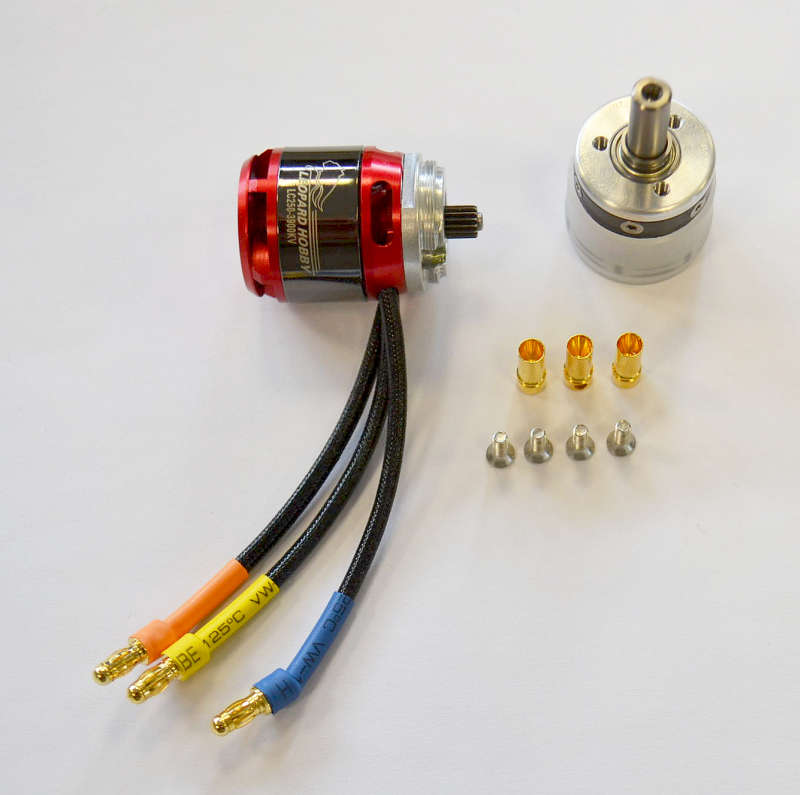

Leopard LC250-30 6-pole 4420KV with Micro Edition 5:1 NL/T
Leopard LC250-30 6-pole 4420KV with Micro Edition 5:1NL/T
Incredibly light, powerful drive particularly suitable for RES gliders and F5J from 1.4 - 4.0m and small speeders.
Data:
- Weight 65g without connector
- Diameter 24.6mm
- Length without shaft 52mm
- Shaft diameter: 6mm
- 939 rpm/V 6 poles
- Bolt circle 14mm, 3xM2.5
- For 2-4 Lipo
- Current max 48Amp.
- max. power at 2s 280 Watt
- max. power at 3s 500 Watt
- max. power at 4s 600 Watt
- Timing 6-12° 8khz
- Best ETA at 11 V, 23-27 Amp., 81%
- Ideal operating range 15-40Amp.
Switch-on times:
- Glider - typical hotliner, considering ambient temperature and effective cooling.
If you have received a complete drive, the motor and gearbox are not assembled, so that disassembly and assembly remain no mystery.
The unit was previously assembled, adjusted and test run on the test bench at Reisenauer company.
Important note:
For assembly, Reisenauer recommends the assembly wrench with order no.: RE-ZE-000501
