Leopard LC250-30 6-pole 5000KV with Micro Edition 5:1 NL/T
Leopard LC250-30 6-pole 5000KV with Micro Edition 5:1NL/T
Incredibly light, powerful drive particularly suitable for RES gliders and F5J from 1.4 - 4.0m and small speeders.
Data:
- Weight 65g without connector
- Diameter 24.6mm
- Length without shaft 52mm
- Shaft diameter: 6mm
- 939 rpm/V 6 poles
- Bolt circle 14mm, 3xM2.5
- For 2-3 Lipo
- Current max 54 Amp.
- max. power at 2s 300 Watt
- max. power at 3s 550 Watt
- Timing 6-12° 8khz
- Best ETA at 11 V, 23-27 Amp., 81%
- Ideal operating range 15-40Amp.
Operating times:
- Glider - typical hotliner, taking into account ambient temperature and effective cooling.

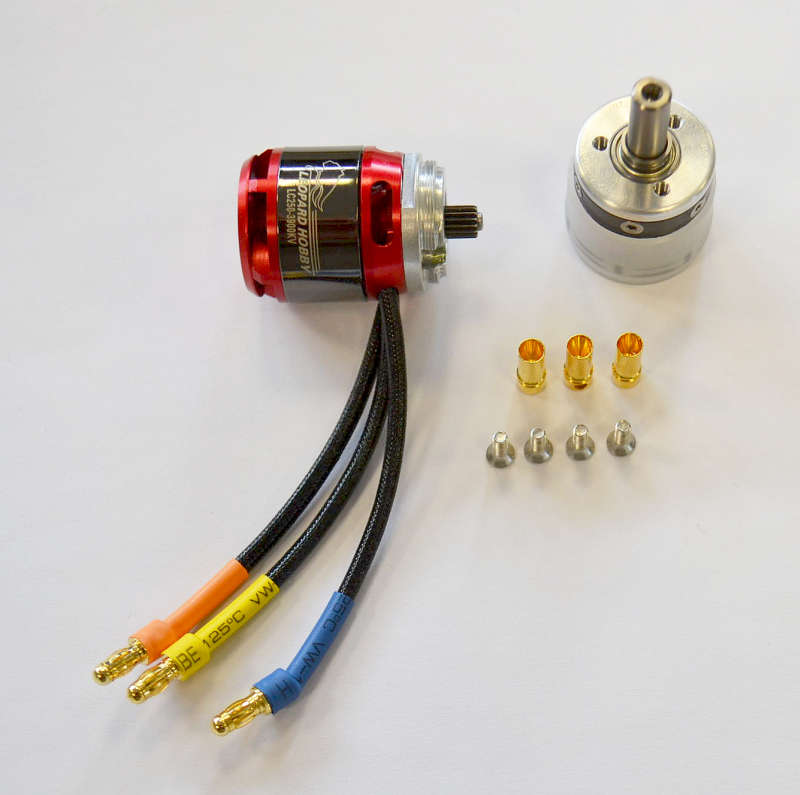

If you have received a complete drive, the motor and gearbox are not assembled so that disassembly and assembly remain an open secret.
The unit was previously assembled, adjusted and test run on the test bench by Reisenauer.
Important note:
For assembly, Reisenauer recommends the assembly key with order no.: RE-ZE-000501
