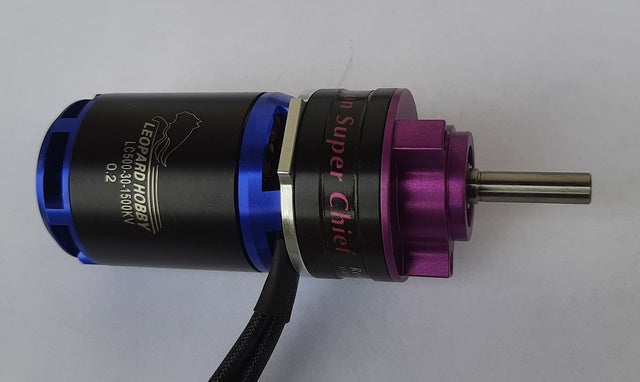

Leopard LC500-30, 6-pole, 1500KV with Super Chief 5:1, round shaft
Leopard LC500-30, 6-pole 1500KV with Super Chief 5:1 round
Powerful drive particularly suitable for gliders up to 10,000g.
Specifications:
- Weight 292g
- Diameter 38mm
- Length without shaft 91mm (+ shaft 22mm)
- Shaft diameter: 6mm
- 355 rpm-1/V
- 6 poles
- Bolt circle 30mm, 3x M4
- For 4-6 Lipo
- Current max 85 Amp.
- Max. power at 4S LiPo 1180 Watt
- Max. power at 5S LiPo 1480 Watt
- Max. power at 6S LiPo 1800 Watt
- Timing 12°
- Clock frequency 8-12khz
Run times: Glider - Hotliner typical, taking into account ambient temperature and effective cooling!
If you have received a complete drive, the motor and gearbox are not assembled, so that disassembly and assembly remain no secret.
The unit was previously assembled, adjusted and test run on the test bench at Reisenauer.
Important note:
For assembly, Reisenauer recommends the assembly key with order no.: RE-ZC-000504
