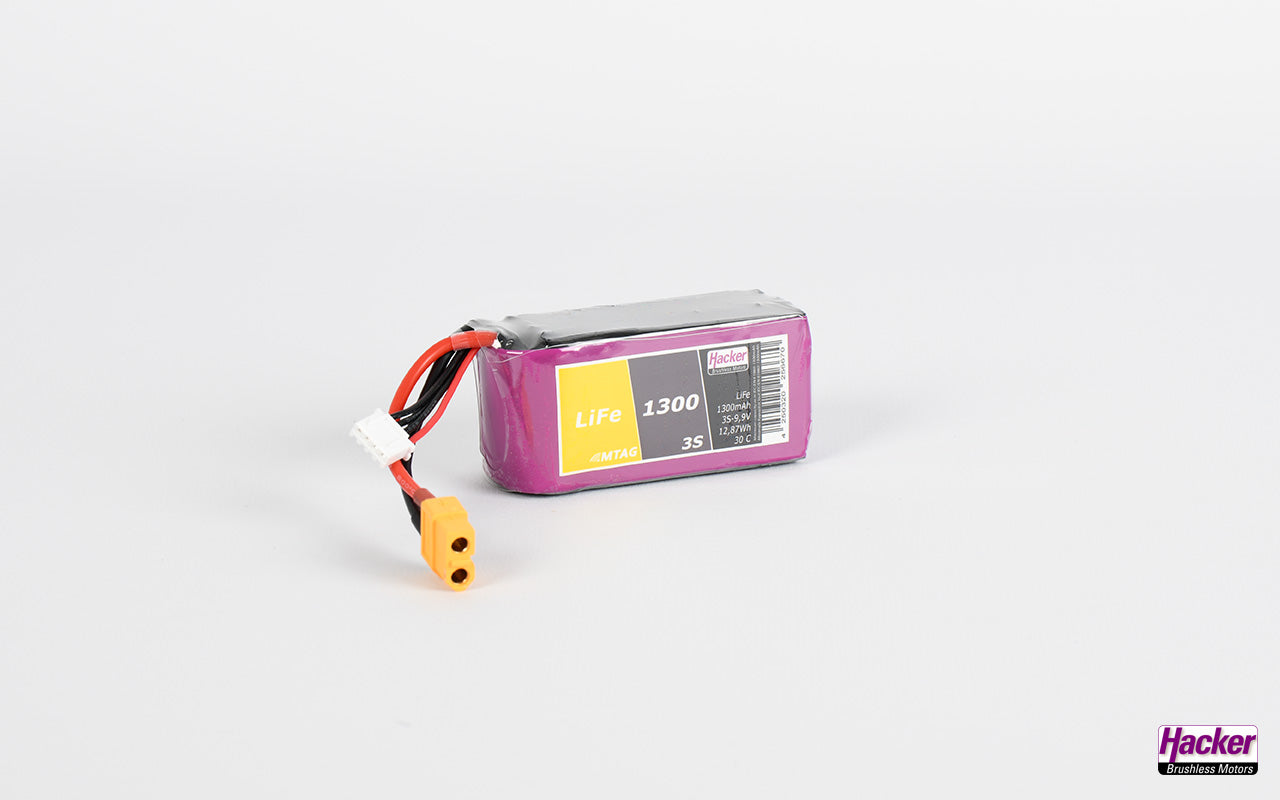

TopFuel LiFe Battery ECO-X MTAG 3S/1300mAh, 9.9V, 30C continuous, Hacker # 91300351

Description:

The TopFuel LiFe cells are designed in a flat, LiPo-like form factor and thus fit ideally into almost any existing battery compartment.

The main difference to LiPo and LiIon batteries is the lower voltage level of 3.3 volts to a maximum of 3.6 volts per cell. LiFe batteries are significantly less sensitive to under- and overvoltage. They are characterized by a very constant and flat discharge curve as well as very high cycle stability.

The battery is pre-soldered with the XT60 connector system.

Connections:

• XT60 connector with gold contacts, suitable for continuous loads up to 60 amperes
• XH balancer connector

Internal chip for battery telemetry

Battery data such as type, number of cells, capacity, C-rate, or battery ID are stored on the passive MTAG chip. These values can be read out if required* with an external NFC sensor such as the HACKER or JETI MTAG and transferred to the transmitter telemetry.

The integrated MTAG chip also offers the possibility to count and store the charging cycles manually or automatically. When using several identical batteries in series or parallel operation, more effective active battery management becomes possible.

*Note: It is up to the user whether to use the MTAG function or not. The TopFuel battery can be used like any ordinary battery without MTAG.
