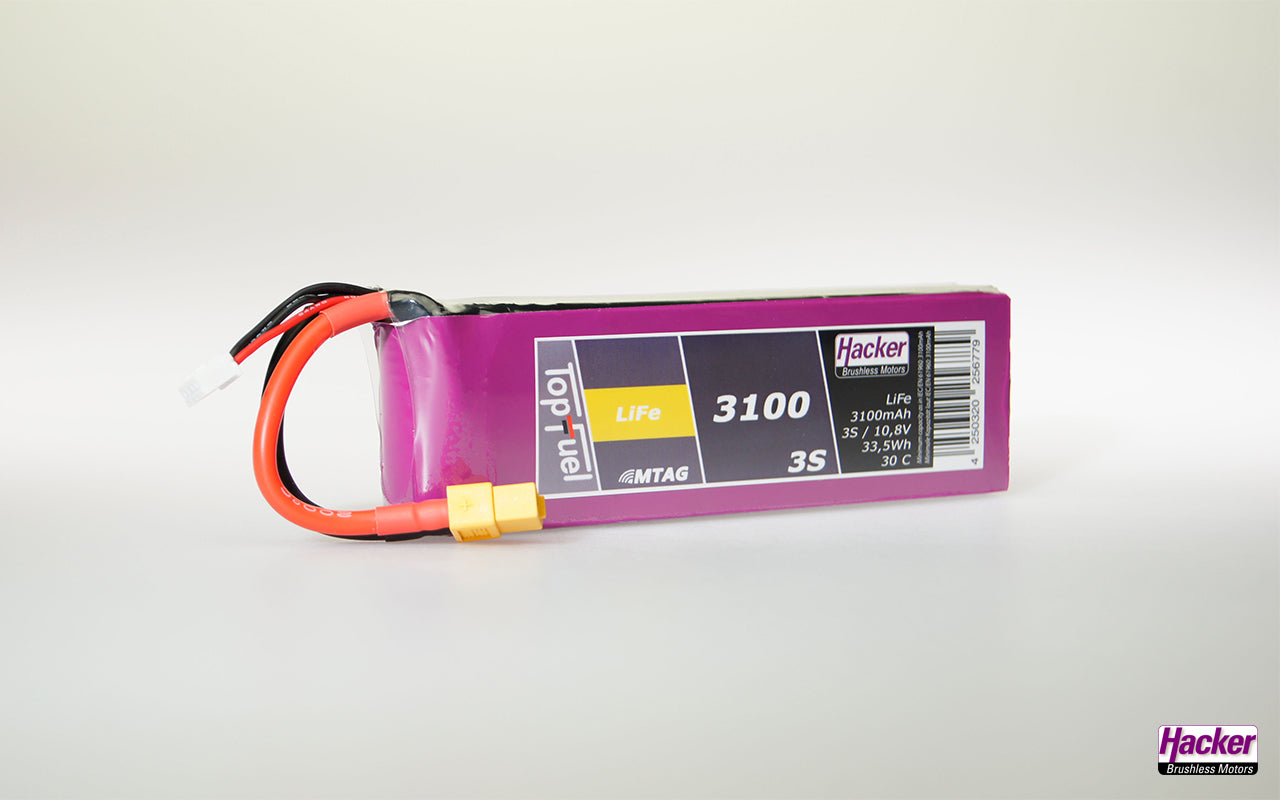

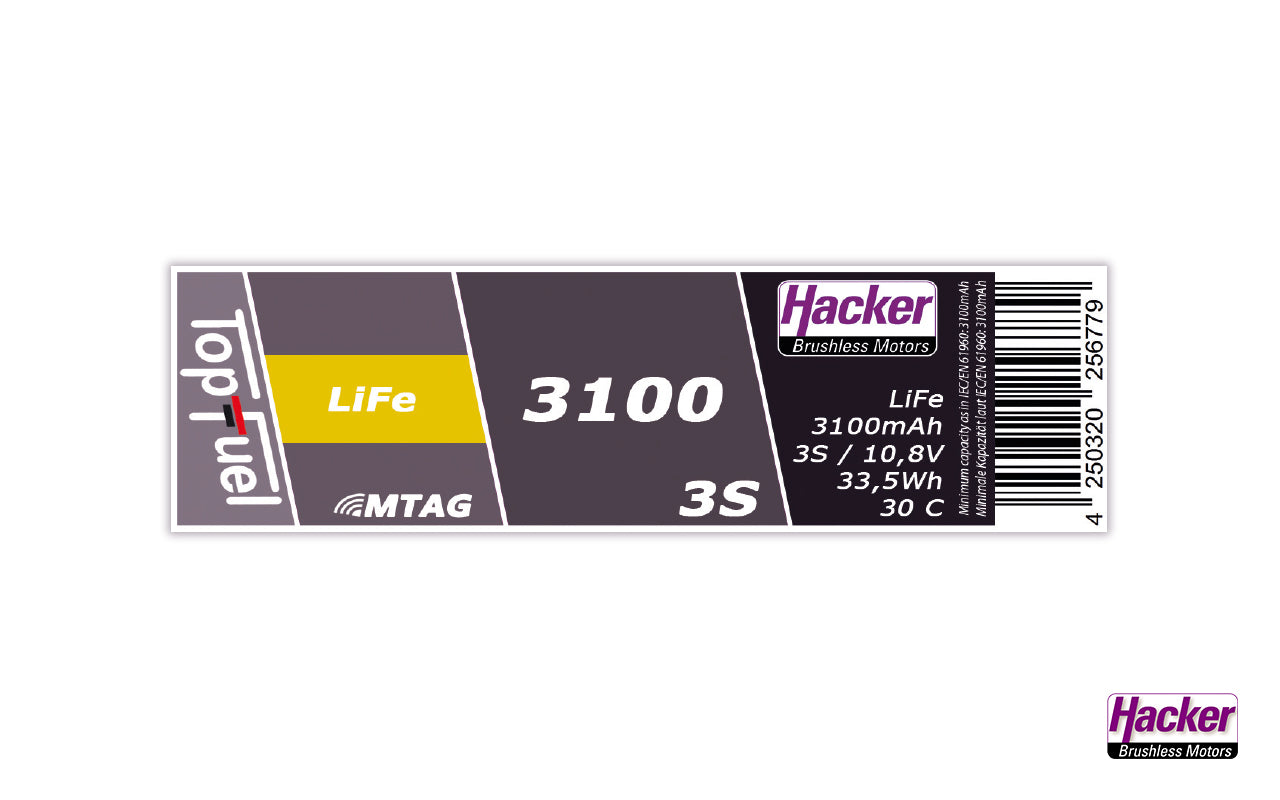

TopFuel LiFe-Battery ECO-X MTAG 3S/3100mAh, 9.9V, 30C Continuous, Hacker # 93100351

Description:

The TopFuel LiFe cells are built in a flat, LiPo-like design, making them ideal for almost any existing battery compartment.

The main difference from LiPo and LiIon batteries is the lower voltage level of 3.3 volts to a maximum of 3.6 volts per cell. LiFe batteries are significantly less sensitive to undervoltage and overvoltage. They are characterized by a very constant and flat discharge curve as well as very high cycle stability.

The battery is pre-soldered with the XT60 connector system.

Connections:

• XT60 connector with gold contacts, suitable for up to 60 amps continuous load
• XH balancer connector

Internal chip for battery telemetry

Battery data such as type, cell count, capacity, C-rate, or battery ID are stored on the passive MTAG chip. These values can be read out if required* with an external NFC sensor, such as the HACKER or JETI MTAG, and transferred to the transmitter telemetry.

The built-in MTAG chip also offers the possibility to count and save the charging cycles manually or automatically. When using several identical batteries in series or parallel operation, more effective active battery management is thus possible.

*Note: It is up to the user whether they want to use the MTAG function or not. The TopFuel battery can be used like any ordinary battery without MTAG.
