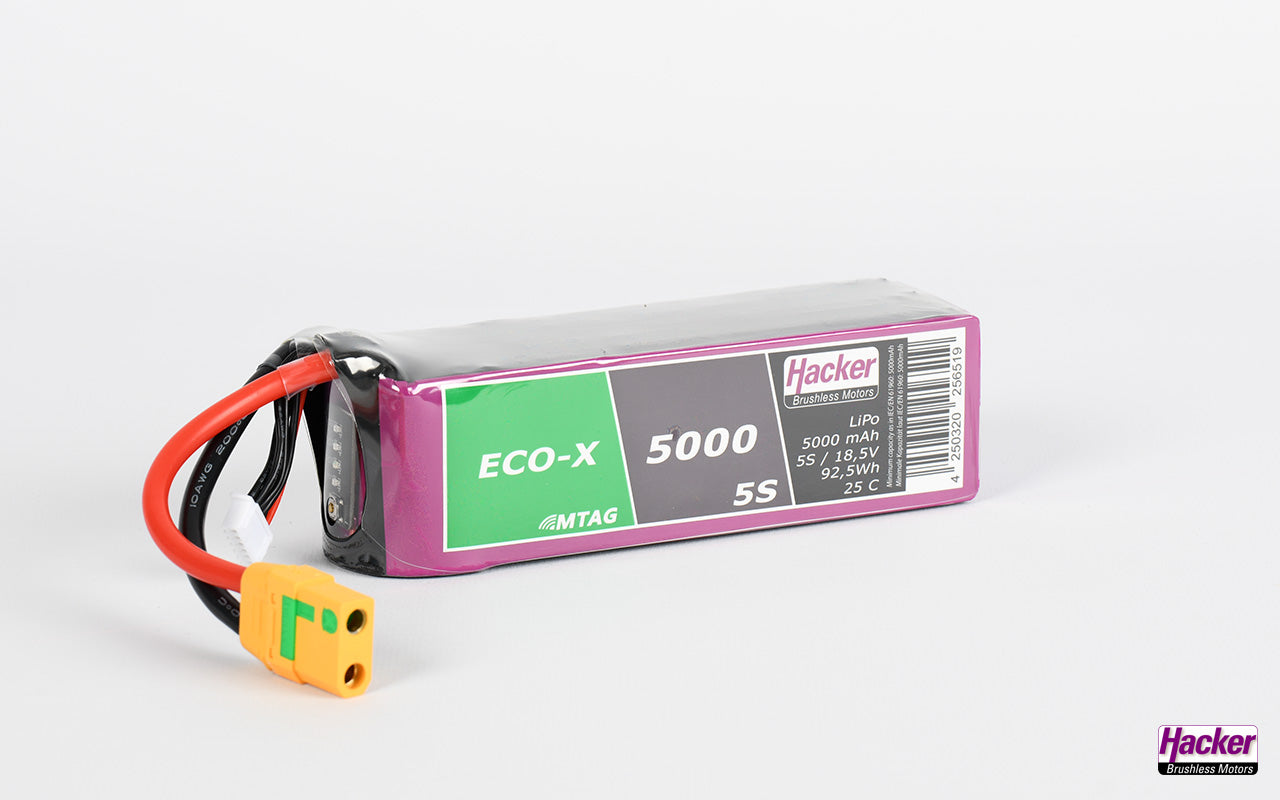

LiPo Battery TopFuel ECO-X MTAG, 5S/5000mAh, 18.5V, 25C Continuous, Hacker # 95000531

The ECO-X cells have been proven thousands of times and offer the perfect balance between load capacity, weight, and service life.

The battery is pre-soldered with the XT90-S connector system with anti-spark function. It is perfectly suited for tough everyday use.

Can be used in all aircraft or ship models, as well as in the R/C car sector.

Connections

• XT90-S connector with gold contacts and anti-spark function, suitable for up to 90 amps continuous load
• XH balancer connector

Safety when connecting

The anti-spark function integrated into the XT90-S connector prevents sparking, for example, when connecting to the ESC.

Internal chip for battery telemetry

Battery data such as type, cell count, capacity, C-rate, or battery ID are stored on the passive MTAG chip. These values can be read out and transferred to the transmitter telemetry if required* using an external NFC sensor such as the HACKER or JETI MTAG.

The integrated MTAG chip also offers the option of counting and saving the charging cycles manually or automatically. When using several identical batteries in series or parallel operation, more effective active battery management becomes possible.

*Note: It is up to the user whether they want to use the MTAG function or not. The TopFuel battery can be used like any ordinary battery without MTAG.

Voltage Indicator Technology

The TopFuel battery is delivered with the proven Voltage Indicator Technology. At the touch of a button, the charge status of the battery is displayed via four differently colored LEDs. The Voltage Indicator helps to accurately assess the battery's charge status at all times.

Optimized ex works

The special manufacturing process, in which the batteries are pressed during filling, makes these cells up to 10 percent thinner and more robust than comparable cells with the same capacity and load capacity.
