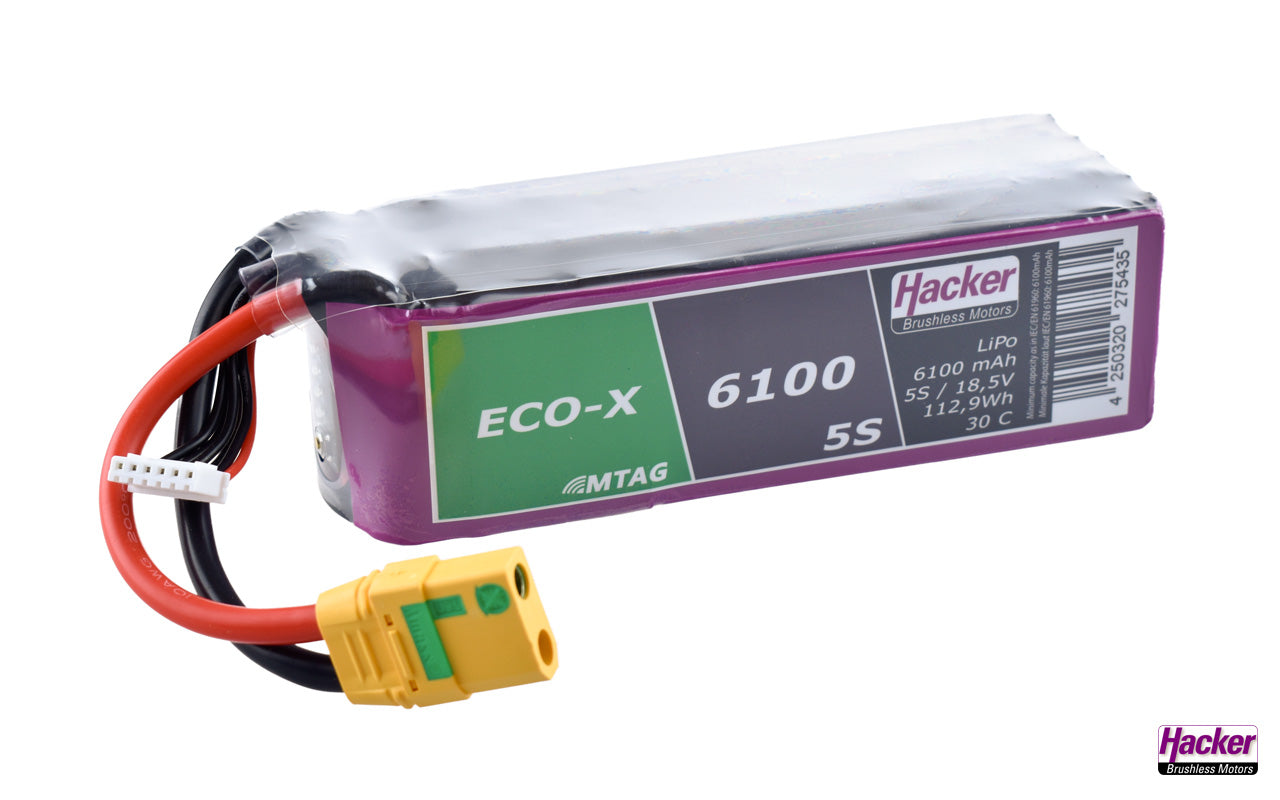

TF LiPo ECO-X 6100-5S MTAG

Product Description and Features

The ECO-X cells have been tried and tested thousands of times and strike the perfect balance between resilience, weight, and lifespan.

The battery comes pre-soldered with the XT90-S connector system with anti-spark function. It is perfectly suited for tough everyday use.

Can be used in all aircraft or ship models, as well as in the R/C car sector.

Connectors

• XT90-S connector with gold contacts and anti-spark function, suitable for continuous loads up to 90 amps
• XH balancer connector

Safety when connecting

The XT90-S connector features an integrated anti-spark function that prevents sparking, for example, when connecting to the ESC.

Internal chip for battery telemetry

The passive MTAG chip stores battery data such as type, cell count, capacity, C-rate, or battery ID. These values can be read out as needed* with an external NFC sensor, such as the HACKER or JETI MTAG, and transferred to the transmitter telemetry.

The built-in MTAG chip also offers the option of counting and saving charging cycles manually or automatically. When using several identical batteries in series or parallel operation, more effective active battery management becomes possible.

*Note: It is up to the user whether they want to use the MTAG function or not. The TopFuel battery can be used without MTAG like any ordinary battery.

Voltage Indicator Technology

The TopFuel battery is delivered with the proven Voltage Indicator Technology. At the touch of a button, the battery's charge status is displayed via four differently colored LEDs. The Voltage Indicator helps to accurately assess the battery's charge status at all times.

Optimized from the factory

The special manufacturing process, where the batteries are pressed during filling, makes these cells up to 10 percent thinner and more robust than comparable cells with the same capacity and resilience.
