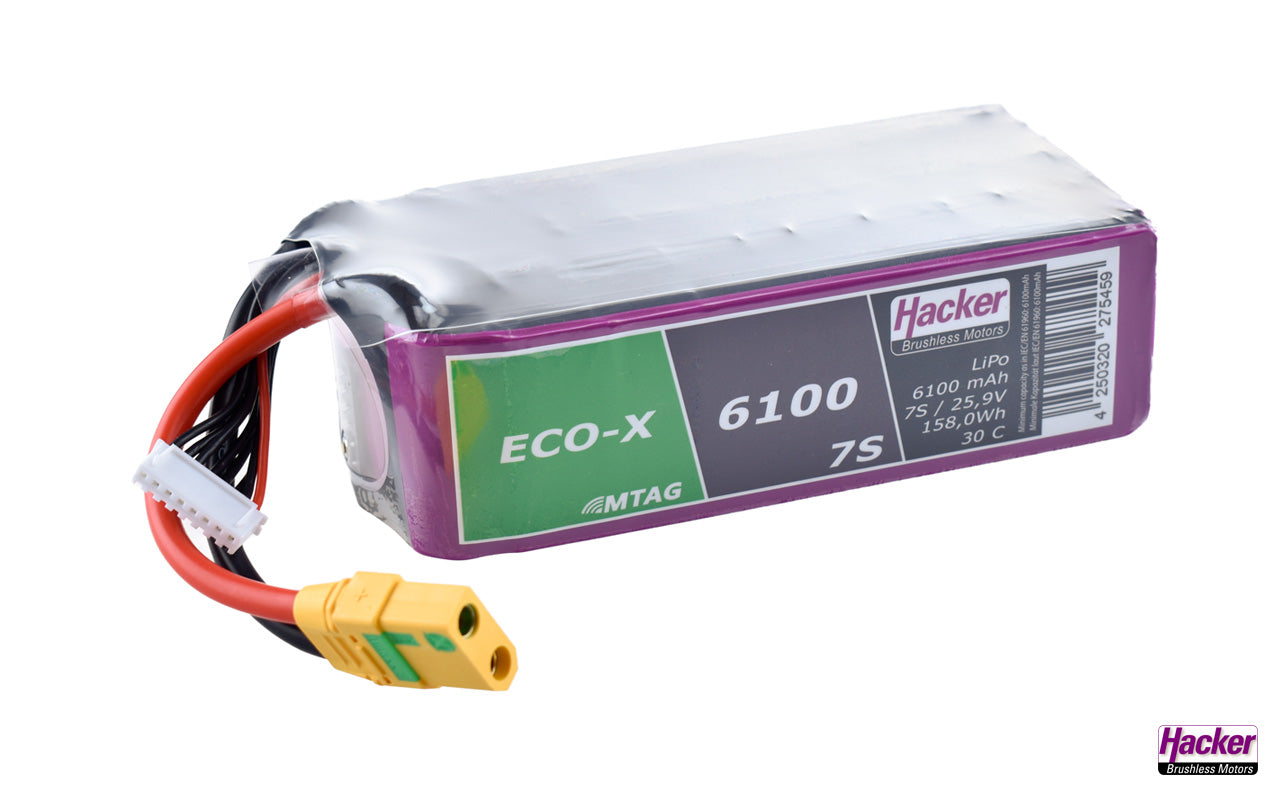

TF LiPo ECO-X 6100-7S MTAG

Product Description and Features

ECO-X cells have proven themselves thousands of times over and offer the perfect balance between resilience, weight, and lifespan.

The battery is pre-soldered with the XT90-S connector system with anti-spark function. It is perfectly suited for tough everyday use.

Can be used in all flight or ship models, as well as in the R/C car sector.

Connections

• XT90-S connector with gold contacts and anti-spark function, suitable for continuous loads up to 90 amps
• XH balancer connector

Safety when plugging in

The XT90-S connector features an integrated anti-spark function that prevents sparking, e.g., when connecting to the ESC.

Internal chip for battery telemetry

The passive MTAG chip stores battery data such as type, cell count, capacity, C-rate, or battery ID. These values can be read out with an external NFC sensor like the HACKER or JETI MTAG and transferred to the transmitter telemetry, if required*.

The built-in MTAG chip also offers the option to manually or automatically count and store charge cycles. When using multiple identical batteries in serial or parallel operation, more effective active battery management becomes possible.

*Note: It is up to the user whether they want to use the MTAG function or not. The TopFuel battery can be used without MTAG like any ordinary battery.

Voltage Indicator Technology

The TopFuel battery comes with the proven Voltage Indicator Technology. At the touch of a button, the battery's state of charge is indicated by four different colored LEDs. The Voltage Indicator helps to correctly assess the battery's state of charge at all times.

Optimized ex works

The special manufacturing process, in which the batteries are pressed during filling, makes these cells up to 10 percent thinner and more robust than comparable cells with the same capacity and resilience.
