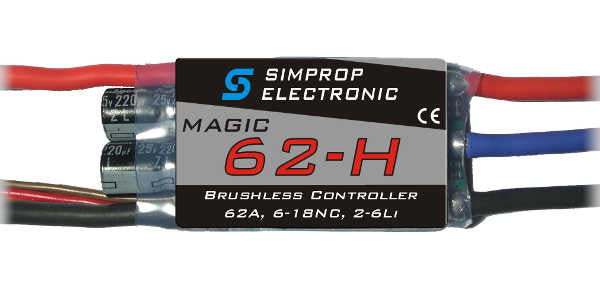

Magic Brushless Controller 62-H (Simprop)
Magic Brushless Controller 62-H (Simprop)
New generation of motor controllers for brushless motors with numerous features:
• Universal Brushless Controller with a wide supply voltage range
• Battery Protection for LiPo / LiIon / NiMh / NiCd / (LiFE with Prog-Box) batteries
• Optimal adaptation of functionality through 4 modes: Flight, Heli, Car, Boat
• Speed controller for E-Helis
• Forward / Reverse function for Car and Boat
• 5.5V COOL Power BEC with DC/DC converter, enabling full load capacity across the entire input voltage range and suitable for digital servos
• Control range programmable, does not need to be repeated at every start
• High clock frequency of 32kHz, allowing for very sensitive control, e.g. for torquing, and very quiet operation
• Programmable with ProgBox or via control stick with status LED and motor tone sequences
• 16-Bit signal processor
• Intelligent temperature shutdown
o Level 1: Controller gets hot => Reduction of motor power to 50%, controller can cool down
o Level 2: Controller overheats => Motor shutdown, controller protection
• RX filter, start-up protection
• Semiconductors instead of heat sinks, making it very small and light
• Overcurrent protection (H types only)
Technical Data:
- Number of cells (LiPo/Li-Ion/Li-Mn) 2-6
- Number of cells NiCd/NiMH 6-18
- Continuous current/Short (max 15s) 62A/72A
- Weight 46g
- BEC load capacity continuous/max. 3/5
- Wiring 2.5mm²
- Battery connector 4mm gold contact
- Motor connector 3.5mm gold contact
- EMK brake switchable yes
- Clock frequency 32kHz
- Temperature shutdown yes
- Overcurrent shutdown yes
- Battery type programmable yes
- Motor rotation direction progr. yes
- Control paths programmable yes
- Dimensions approx. (LxWxH) 67x26x10mm
