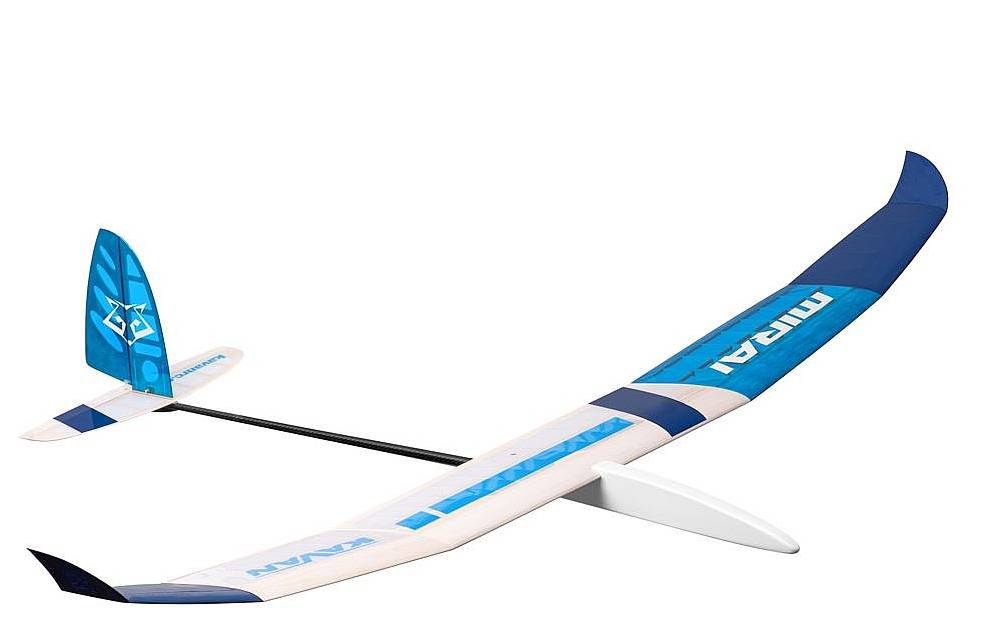

MIRAI, RES Glider Model, Spw. 1995mm, Kit
# KAV02.8021

The MIRAI model was designed and manufactured in the Czech Republic.

MIRAI is an ideal project for model builders who want a truly high-performance model for competitions or hobby flying. Thanks to the excellent design with CNC-cut parts that fit together like puzzle pieces, assembly is very quick and easy.
MIRAI is a competition model with which you can successfully compete for a "podium finish" in the F3-RES or F5-RES category. The kit includes fuselage parts to build either a pure glider fuselage or an electric fuselage.

The front part of the fuselage is made of balsa and light plywood; at its core, it's a simple construction with balsa sidewalls and plywood bulkheads.
In the glider version, the space for the rudder and elevator servos is in the fuselage under the removable side cover, which is held by a magnetic clasp.
In the electric version, the servos are placed under the wing.
The tail boom consists of a carbon tube with a glued-on pylon.

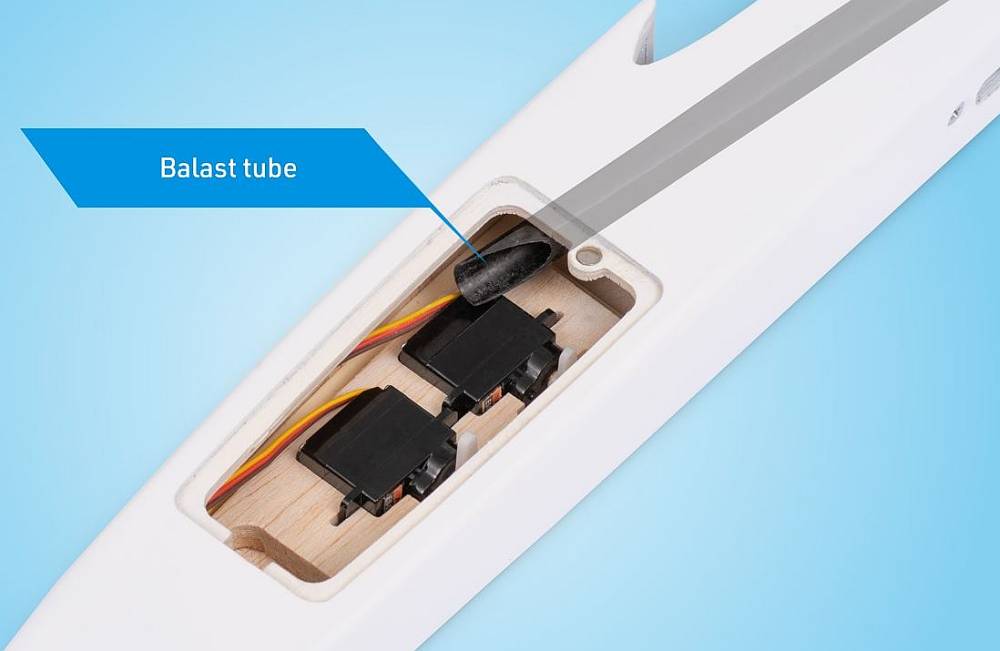

For the glider version, a carbon ballast tube is included, which can be loaded through the fuselage hatch to increase wing loading.

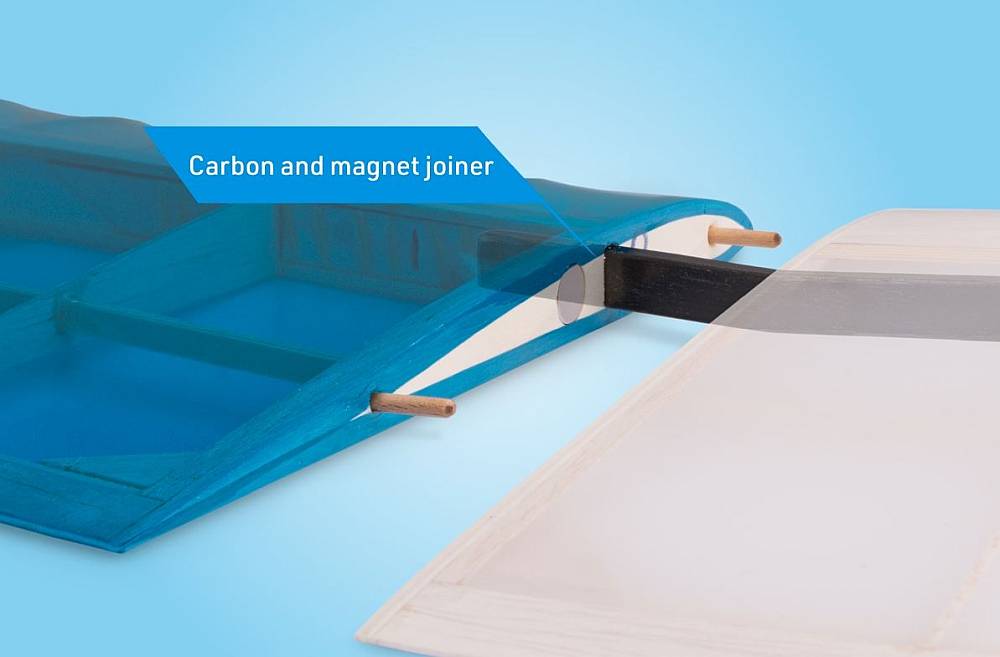

The wingtips with elegant winglets are attached to the center section with carbon connectors and beech dowels to prevent twisting, and secured with magnets.
The three-part wing with the HB RES profile is built in classic construction with balsa ribs and solid sheeting, the D-box. The main spar consists of spruce strips with balsa boxing, which guarantees high structural strength with very low weight.

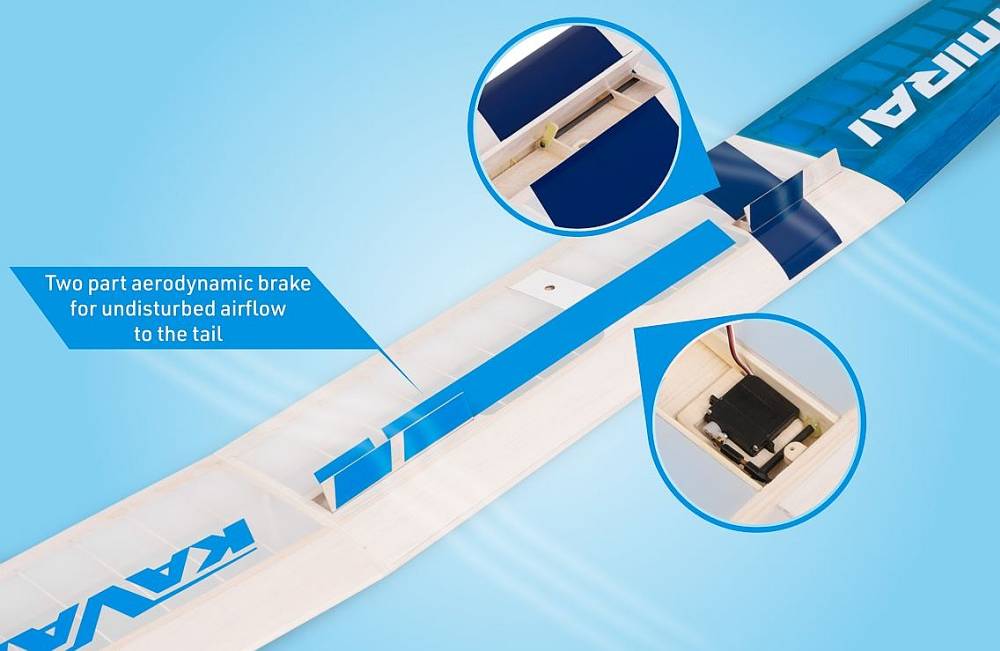

The center section features a two-part airbrake controlled by a single servo via a torsion drive. The wing is attached to the fuselage with plastic screws.

The tail unit is made of CNC-cut balsa parts. They are removable for easier transport. After insertion onto carbon fiber guide rods, they are secured with a plastic screw. The control surfaces are actuated by Bowden cables.

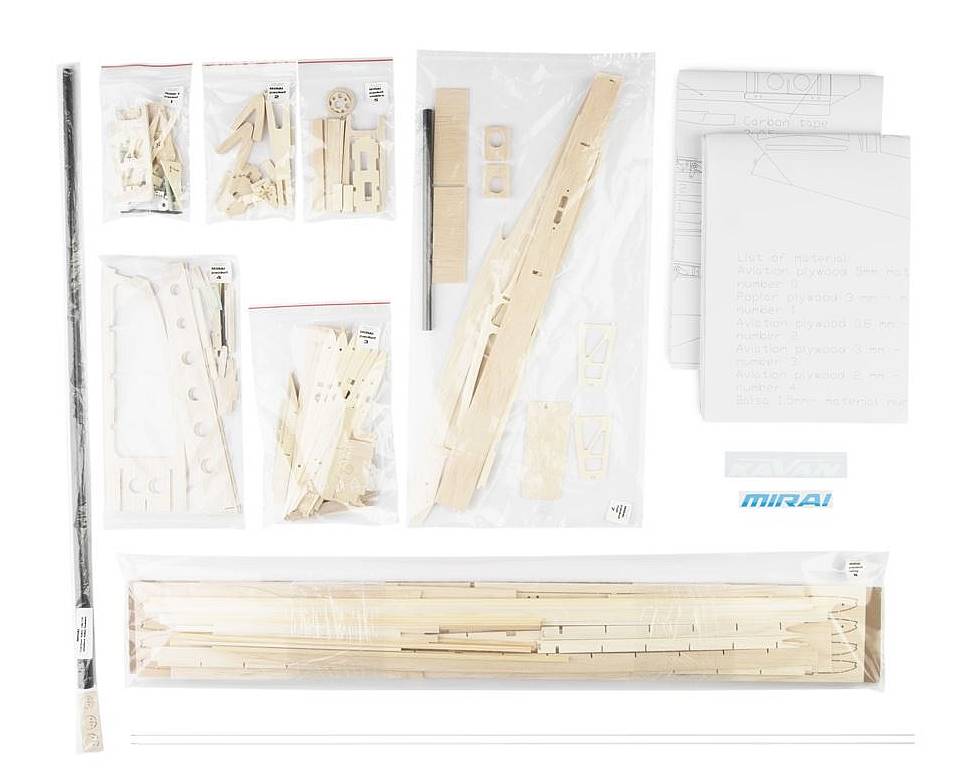

The kit includes:

• CNC cut balsa and plywood parts
• Main spars and balsa sheets for solid sheeting
• Carbon tube tail boom
• Accessory set
• Decal sheet
• 1:1 scale plan
• Building instructions

Required accessories:

• Adhesive
• Covering material
