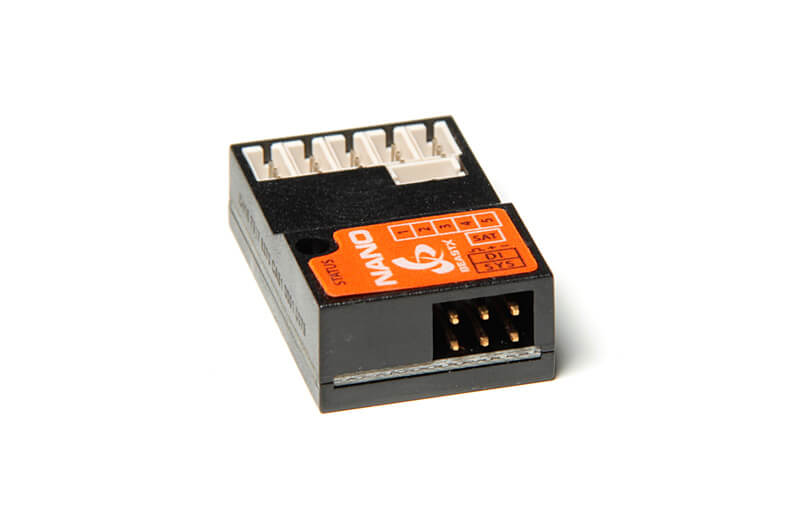

NANObeast, FBL stabilization system for small and micro helicopters
NANObeast PLUS, FBL Stabilization System for Helicopters
The NANOBEAST is a control unit for small and very small RC model helicopters without a flybar (paddles). The integrated gyro elements largely stabilize the helicopter, so it only follows the pilot's control commands. The control feel can be adjusted from tame to extremely agile. This allows the model to meet almost all pilot requirements, whether beginner or 3D professional.
A paid firmware upgrade can expand the system to the "ProEdition". This offers additional functions such as AttitudeControl for attitude stabilization and rescue of the model in an unsafe flight attitude, as well as bank switching, which allows switching between different parameter sets during flight.
A computer (Windows/mac), a smartphone or tablet (iOS/Android) with Bluetooth LE is required for basic setup and tuning of the system. Depending on the technology used, a USB2SYS (for computer) or BLE2SYS (for smartphone/tablet) interface is required. This is not included and must be purchased separately! Configuration is then done via the StudioX software, which is available for free download.
Supported Receiver Types/Transmission Protocols:
- SRXL: JR® XBus (Mode B), Multiplex® SRXL (V1+V2), Jeti® UDI, Graupner/SJ® HOTT SUMD, Spektrum® SRXL
- Futaba® SBUS
- Single satellite (Spektrum® DSM2/DSMX, JR® RJ-01 DMSS)
- Jeti® EXBUS
- ALIGN/FlySky iBus
- PPM Sum Signal (SPPM)
Technical Data:
- Receiver connections: Spektrum®/JR® single satellite, sum signal connection for Graupner® HOTT, Futaba® SBus, Jeti® exBus, FlySky® iBus, FrSky® SRXL, Multiplex® SRXL, JR® XBus (B), Spektrum® SRXL, Align® iBus, SPPM sum signal
- Input voltage: 4.8V to 6.0V
- Recommended heli size: 180 - 250 electric heli
- Dimensions: 32x20x10mm
- Weight: 5.8g
Scope of delivery:
- 1x NANOBEAST control unit
- 1x Patch cable for sum signal receivers
- 2x Adhesive pad
- 1x Manual
- 1x Decal sheet
