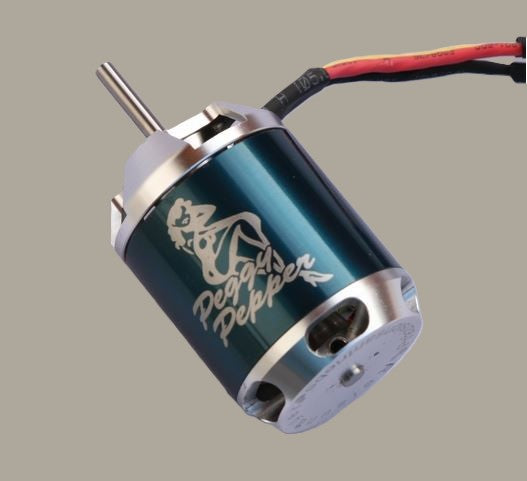

Peggy Pepper HK-2524-2800 RPM/V, WITHOUT GEARBOX
As of April 2026 · Prices incl. VAT unless stated otherwise.
-
Delivery time on request.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
Peggy Pepper HK-2524-2800 RPM/V, WITHOUT GEARBOX
Peggy Pepper HK-2524-2800 RPM/V, WITHOUT GEARBOX
Dimensions and Technical Data:
Weight: 113g
Diameter: 31.5 mm
Shaft: 3.17 mm
Motor Length: 44.5 mm
Shaft Length: 18 mm
Max. Lipo Cells: 4s
Motor Timing: 12° - 24°
Motor Frequency: 8kHz
Stator Diameter: 25.0 mm
Stator Thickness: 24.0 mm
Poles: 8
RPM/V: 2800
Bolt Circle 16mm 4xM3
Load Capacity: Max 4s 125Amp. for 5 Sec - Attention Limit for 3.5mm Gold Connector 70 Amp.
