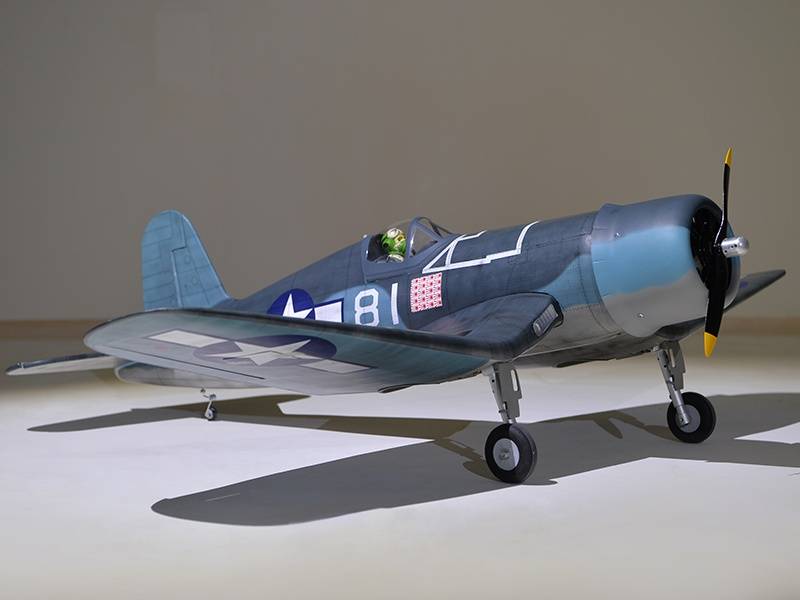

Phoenix F4U Corsair, ARF, Wingspan 1480mm
with electric retractable landing gear, # PH224

The F4U Corsair by Phoenix is a true-to-scale Warbird with a 1.48m wingspan. The model is constructed from extremely light and high-strength wood and is designed for electric or internal combustion engines.

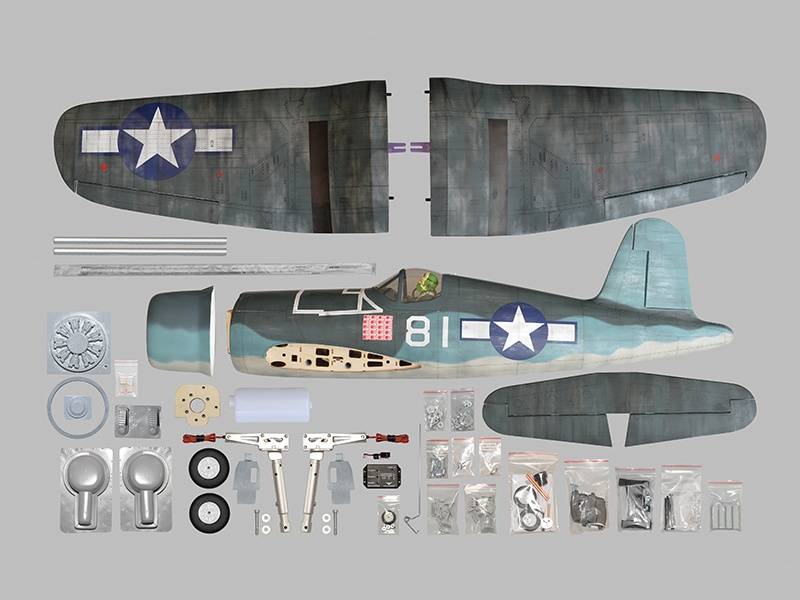

Wood construction with a very high degree of prefabrication:
The model is made of extremely light and high-strength balsa/plywood. The laser-cut construction features a very high degree of prefabrication, which reduces the construction effort almost entirely to the installation of the propulsion system and electronics. Under the removable canopy, there is plenty of space for the electronics. The Corsair is completely covered with film.

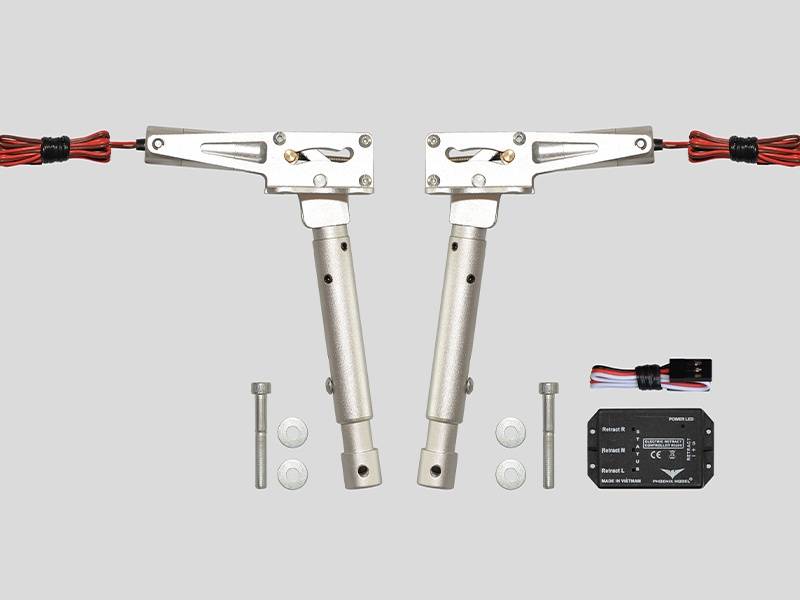

Electric Retractable Landing Gear Included:
The model comes with an electrically retractable and sprung main landing gear. The landing gear legs are completely made of CNC-milled metal.

Electric or Internal Combustion:
This model can do both! The design is prepared for both electric propulsion and internal combustion engine propulsion. The only question is: awesome sound or rather absolute efficiency?

Features:

• Electric or internal combustion operation possible
• extremely light and high-strength, laser-cut balsa/plywood construction
• high degree of prefabrication, pre-covered and painted
• removable wing for easy transport

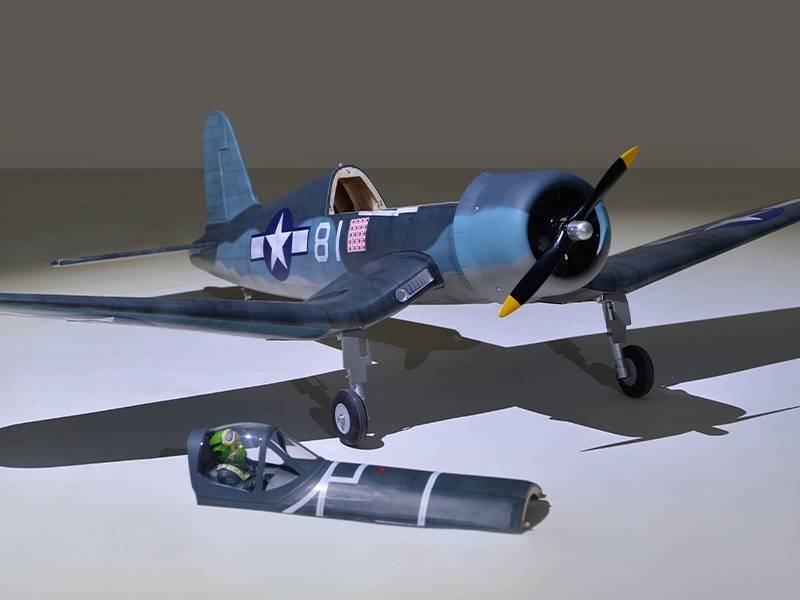

• removable GRP canopy
• detailed cockpit with pilot figure
• many scale details
• including electric, shock-absorbing metal retractable landing gear
• including sprung nose landing gear
• excellent flight characteristics

Technical Data:

• Wingspan: 1485 mm
• Length: 1127 mm
• Flying weight: approx. 3,400-3,500 g
• Wing area: 38.0 dm²
• Wing loading: 89.4 g/dm²
• Airfoil: Naca

Required Accessories:

• Remote control: min. 6 channels
• Receiver: min. 6 channels
• Propulsion: Electric (1000-1400W, 480KV) or internal combustion 46-55ccm
• Propeller: according to propulsion
• 2x Standard Servo D-Power AS-575BB MG for ailerons
• 1x Standard Servo D-Power AS-575BB MG for elevator
• 1x Standard Servo D-Power AS-575BB MG for rudder
• (1x Standard Servo for throttle)

Electric Propulsion Recommendation:

• Brushless Motor Set: D-Power D-Power SET BL-Motor AL42-06 & Controller 60
• Battery: D-Power KRAFTPAKET 5000 6S LIPO 22.2 V 35/70C - XT90

Internal Combustion Propulsion Recommendation:

• Nitro Engine: 2 Stroke: OS MAX 55 AX – 8.93ccm – with muffler
• 4 Stroke: SAITO FA 56 9.1ccm - with muffler
• 1 additional standard servo for throttle
